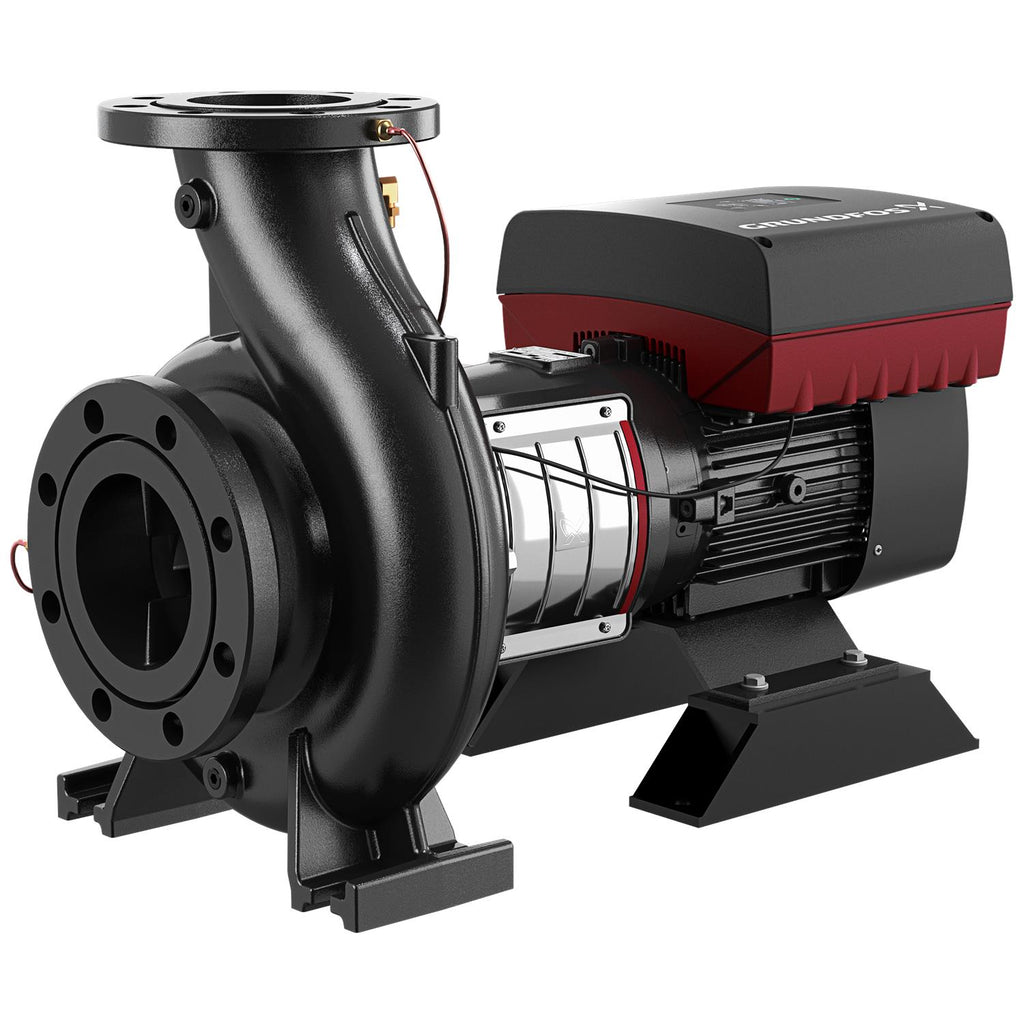

Grundfos 92570789 - NBSE 015-070/6.93 ASASG7SAESDQQEICA | SelfPriming | Centrifugal | Horizontal

GrundfosSKU: 92570789

Price:
Sale price$12,746.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
92570789 · Grundfos Accessory / Spare Part / Control
ACC3HP440-480V3.0-Phase60 HzIE5TEFCStainless steel

The Grundfos 92570789 (NBSE 015-070/6.93 ASASG7SAESDQQEICA) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 165US gpm at 55.45ft. Rated 440-480V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
3HP
Voltage
440-480V
Phase
3.0-Phase
Max Flow
165US gpm
Max Head
55.45ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 92570789
Series: ACC
Impeller Material: Stainless steel
Housing Material: DUCTILE IRON
Shaft Seal: DQQE
Flange Rating: Class 300
Technical Specifications
Model Number 92570789
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 3HP
Voltage 440-480V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 180-2200rpm
Pump Speed 2200rpm
Full Load Current 3,90-3,70A
Motor Type 100B
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 91.1%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 165US gpm
Nominal Head 55.45ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 122°F
Inlet Connection 2.5inch
Outlet Connection 1.5inch
Pipe Pressure Rating Class 300
Pipe Standard ANSI
Impeller Material Stainless steel
Housing Material DUCTILE IRON
Shaft Seal DQQE
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
Plumbing: Hot Water Recirculation
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal water transportation
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 440-480V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 92570789
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5715116433776
Applications Pressure boosting
Actual impeller diameter 176 mm
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal DQQE
Connect code G
Connection Class 300
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 998.2 kg/m³
Diameter 176 mm
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.44
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 92.3 kg
Housing DUCTILE IRON
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range -20 .. 120 °C
Mains frequency 60 Hz
Material code SA
Material Pricing Group 5W
Maximum ambient temperature 50 °C
Maximum operating pressure 25 bar
Motor efficiency at full load 1 0.911
Motor standard NEMA
Motor type 100B
Mounting options design code C
Net weight 91.8 kg
Number of poles 4
Power factor 1 0.87-0.83
Pressure rating for connection Class 300
Product family NBSE
Pump housing DUCTILE IRON
Pump speed on which pump data are based 2200 rpm
Pump version AS
Pumped liquid Water
Rated current 3.90-3.70 A
Rated flow 37.38 m³/h
Rated head 16.9 m
Rated power - P2 2.2 kW
Rated speed 180-2200 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Shaft Stainless steel
Size of inlet connection 2.5 inch
Size of outlet connection 1.5 inch
Standard NEMA
Support block (Yes/No) Y
Type 100B
Type of connection ANSI
Version AS

Motor Curves

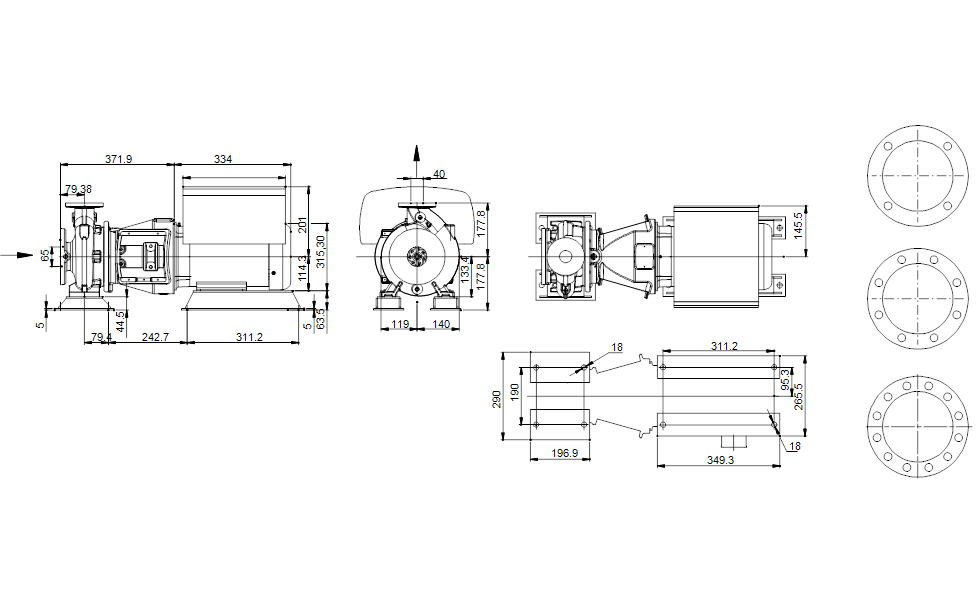

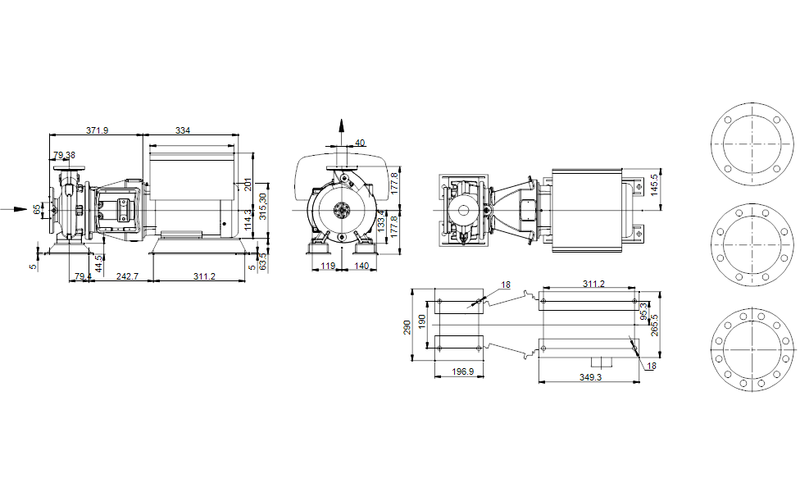

Dimensional Drawing

DWiring Diagram
