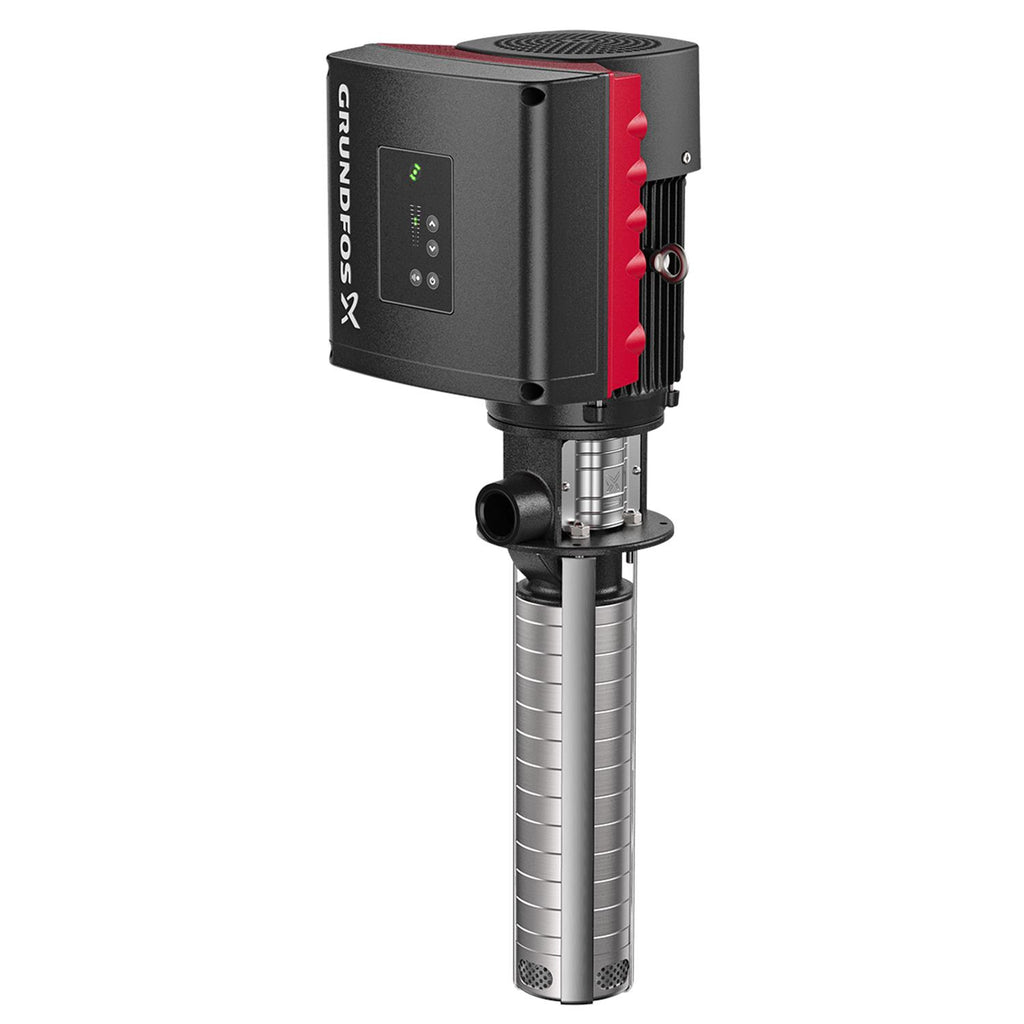

Grundfos 98400046 - MTRE 1-9/9 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $2,379.61
GRUNDFOSSKU: 98400046

Price:
Sale price$2,683.39 Regular price$5,063.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98400046 - MTRE 1-9/9 A-WB-A-HUUV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this tank-mounted pump is engineered for efficiency and reliability, making it an ideal choice for those seeking robust pumping solutions.

This model features advanced technology that ensures optimal performance in demanding environments. Its multistage design allows for high pressure and flow rates, making it suitable for various applications, including water supply, irrigation, and industrial processes.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

Explore our extensive range of products, including Grundfos Controls & Accessories, MT Tank Mounted Pumps, and more. Trust Pump-Stop for all your pumping needs!

EAN 5711494355242
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Chambers 9
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 71.4 lb
IE Efficiency class IE5
Immersion depth 11.3 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 56C
Motor efficiency at full load 1 0.852
Motor standard NEMA
Motor type 80A
Net weight 38.3 lb
Number of reduced-diameter impellers 0
Power factor 1 0.99
Product family MTRE 1
Pump speed on which pump data are based 3400 rpm
Pump version A
Pumped liquid Emulsion
Rated current 4.70-3.90 A
Rated flow 9.69 US gpm
Rated head 192.6 ft
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 80A
Type of connection NPT(F)
Version A

Motor Curves

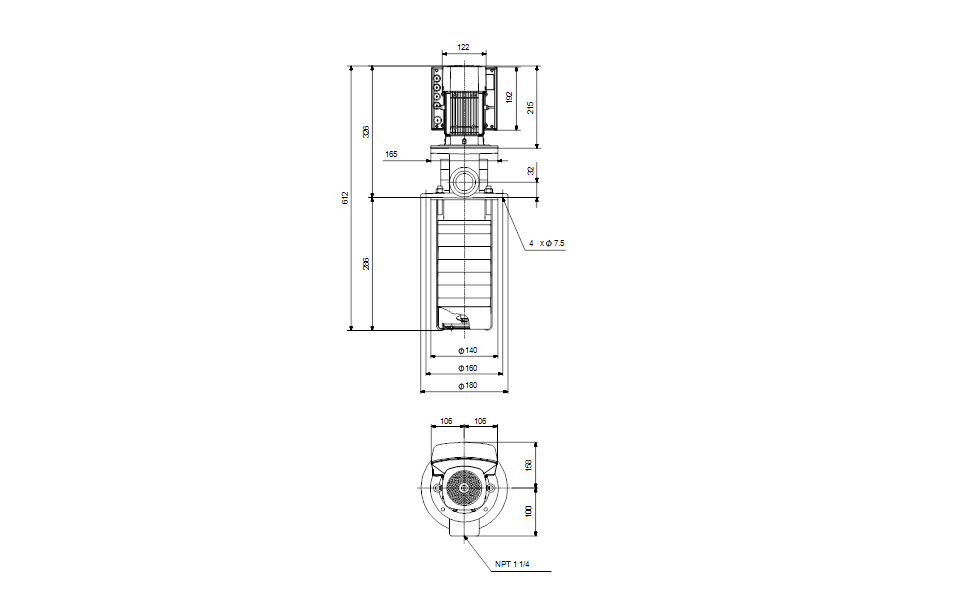

Dimensional Drawing

DWiring Diagram
