Grundfos 98472700 - MTR 1-22/22 A-W-A-HUUV | Vertical | Immersible | Multistage

Save $2,906.95
GRUNDFOSSKU: 98472700

Price:
Sale price$3,278.05 Regular price$6,185.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98472700 - MTR 1-22/22 A-W-A-HUUV

The Grundfos 98472700 - MTR 1-22/22 A-W-A-HUUV is a high-performance vertical immersible multistage pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

This pump is ideal for applications requiring robust performance and durability. Its multistage design allows for high pressure and flow rates, making it suitable for various tasks, including water supply, irrigation, and industrial processes.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5711495670306
Approvals CE
Built-in motor protection NONE
Cable gland entry 4xM20 knock out
Chambers 22
Code for shaft seal HUUV
Connect code W
Connection 1 1/4 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT115
Frequency converter NONE
Gross weight 69.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 20.5 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor efficiency at 1/2 load 89.2-86.3 %
Motor efficiency at 3/4 load 89.5-88.5 %
Motor efficiency at full load 1 86.5-86.5 %
Motor standard IEC
Motor type 90HA
Net weight 60.2 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power factor 1 0.88-0.80
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated current 7
Rated flow 9.69 US gpm
Rated head 494.4 ft
Rated power - P2 2.2 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 230-277D/400-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Size of outlet connection 1 1/4 inch
Standard IEC
Starting current 820-1050 %
Suitable for 50/60 Hz N
Terminal box position 6
Type 90HA
Type of connection G internal thread
Version A

Motor Curves

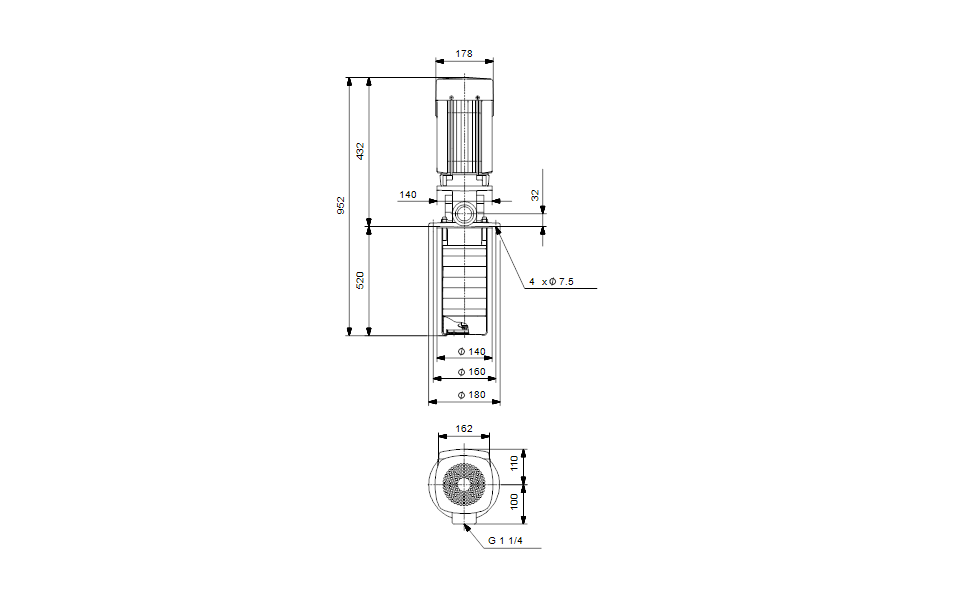

Dimensional Drawing

DWiring Diagram
