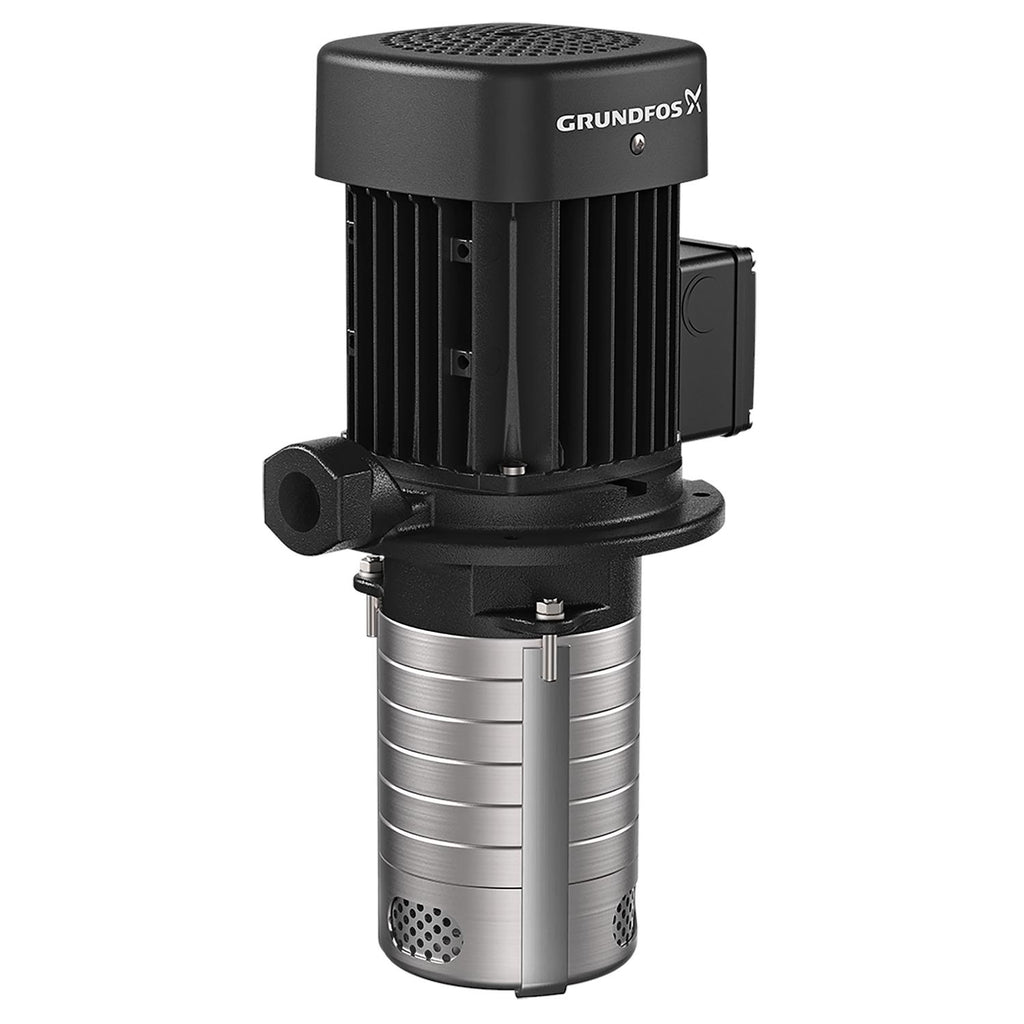

Grundfos 98993325 - MTC 4-5/4 A-WB-A-AQQV

Save $1,015.39
GRUNDFOSSKU: 98993325

Price:
Sale price$1,419.61 Regular price$2,435.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98993325 - MTC 4-5/4 A-WB-A-AQQV is a high-performance pump designed for various industrial applications. Manufactured by the renowned brand Grundfos, this model is part of the MTC series, known for its reliability and efficiency in fluid handling. Ideal for both vertical and multistage pumping needs, the MTC 4-5/4 A-WB-A-AQQV is suitable for a wide range of applications, ensuring optimal performance in demanding environments.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call our expert team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98993325. If you encounter any difficulties in locating the right item, our knowledgeable staff is here to help you find the perfect solution.

Explore our extensive range of Grundfos products, including controls and accessories, and experience the quality and performance that comes with the Grundfos name.

Approvals CE,cURus/cCSAus
Approvals for motor CE,CC
Built-in motor protection NONE
Chambers 5
Code for shaft seal AQQV
Connect code WB
Connection NPT(F)
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Frame size 80BA
Frequency 60 Hz
Frequency converter NONE
Gross weight 34.2 lb
Housing Cast iron
I MAX 3A
IE Eff. Class IE3
IE efficiency Product name:MTC 4-5/4 A-WB-A-AQQV
IE Efficiency class IE3 / NEMA Premium
Immersion depth 8.9 in
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class IP54
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 140 °F
Maximum current consumption 5,4-5,15/2,6 A
Maximum operating pressure 145.04 psi
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE,CC
Motor standard NEMA
Multi plug N
n rpm F
Net weight 31.5 lb
Number of reduced-diameter impellers 0
P2 kW 1.48 HP
Phase 3
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 4,70-4,60/2,30 A
Rated flow 26.4 US gpm
Rated head 117.1 ft
Rated power - P2 1.48 HP
Rated speed 3465 rpm
Rated voltage 3 x 208-230YY/460Y V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft Product name:MTC 4-5/4 A-WB-A-AQQV
Shaft seal AQQV
Standard NEMA
Starting current 720-800 %
Suitable for 5/6 Hz Y
Terminal box position 6
Type of connection NPT(F)
Version A

Motor Curves

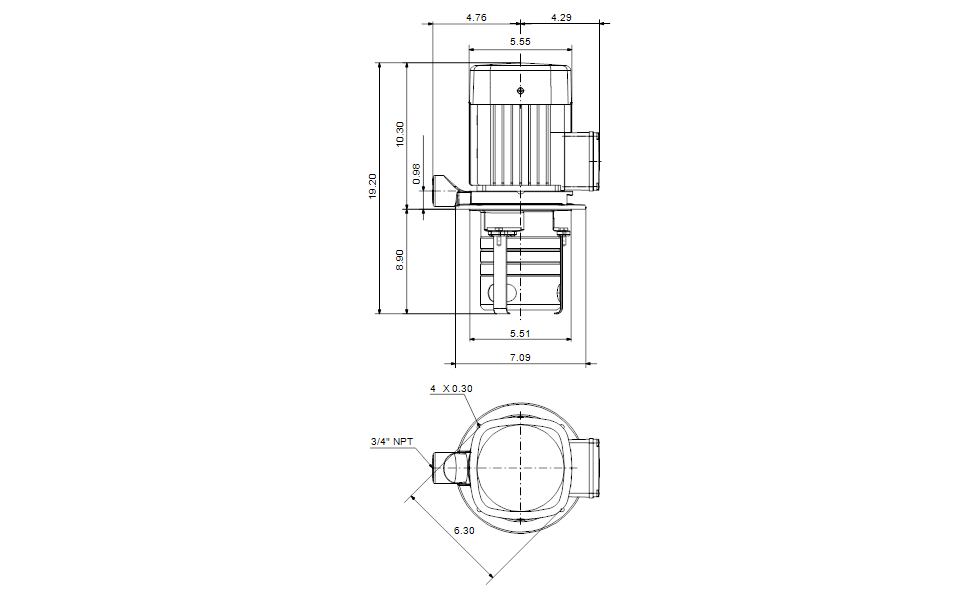

Dimensional Drawing

DWiring Diagram
