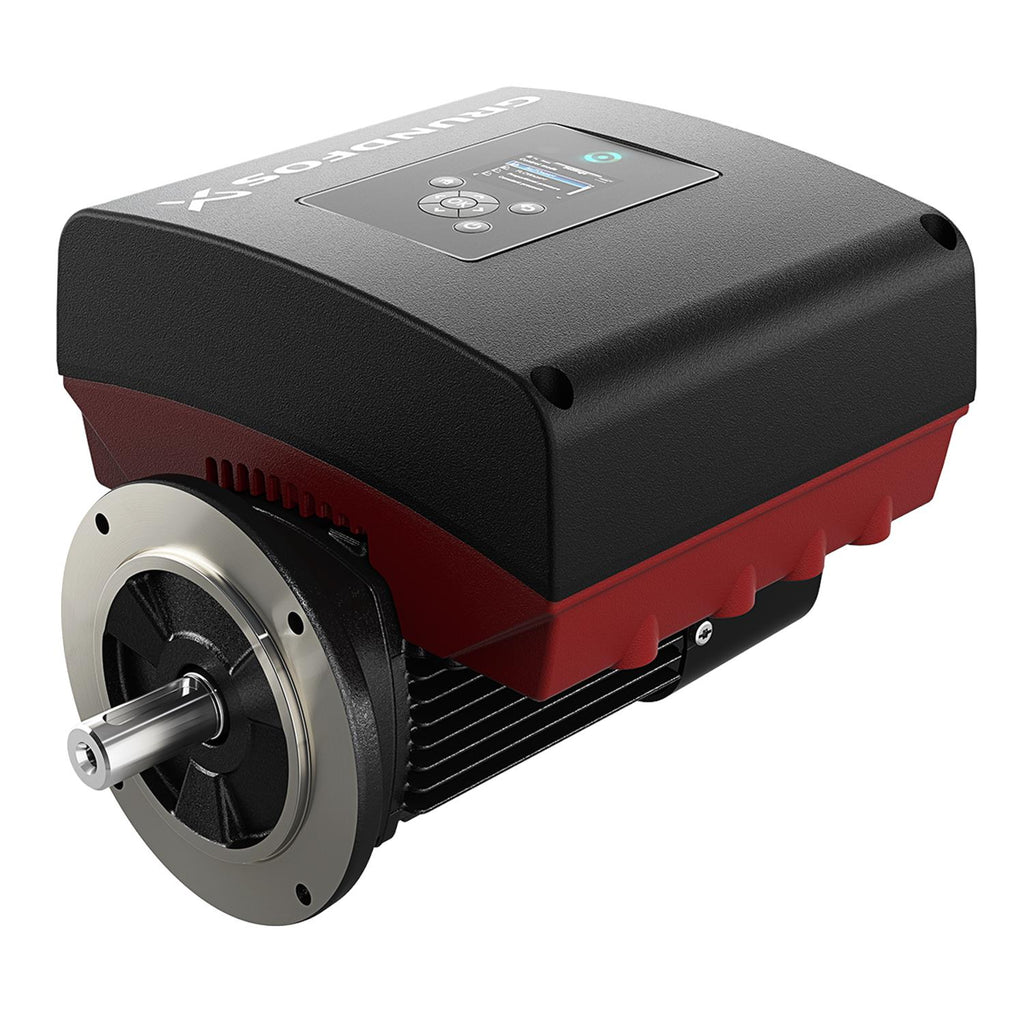

Grundfos 99301706 - MLE90C | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99301706

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99301706 - MLE90C is an integrated permanent magnet motor assembly suited for pump systems and motor replacement projects, commonly selected by technicians and maintenance teams for high-efficiency retrofit or repair applications.

Key features

  • Integrated motor design for straightforward replacement and installation
  • Fits Motors & Drives category and MLE/MGE product families per catalog tagging
  • Permanent magnet, high-efficiency design for reduced energy use and quieter operation

Applications

Typical uses include industrial pump motor replacements, HVAC and water-handling equipment rebuilds, and preventive maintenance where compact, efficient motor modules are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99301706

EAN 5713826869571
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 99251007
Control panel HMI300 - Graphical
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 56C
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 33
Model I
Moment of inertia 0.012 lb ft²
Motor 56C
Motor efficiency at full load 1 0.889
Motor standard NEMA
Motor type 90C
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 30.9 lb
Power factor 1 0.92
Product family MGE, MLE
Range of ambient temperature -4 .. 104 °F
Rated current 5.40-4.60 A
Rated full-load torque 1 3.098 ft lb
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

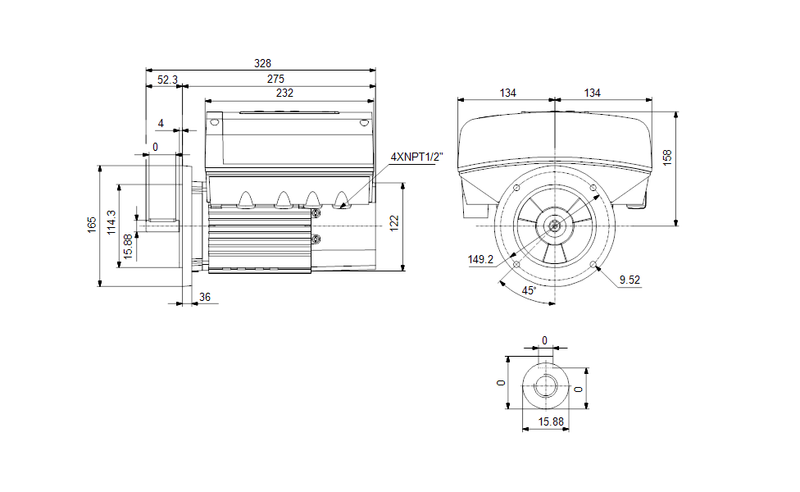

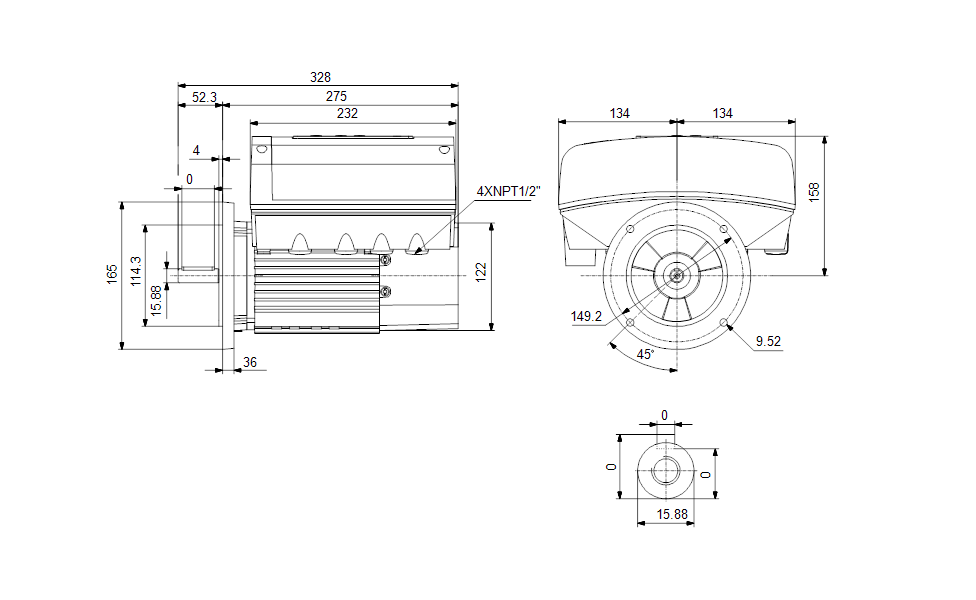

Dimensional Drawing

DWiring Diagram
