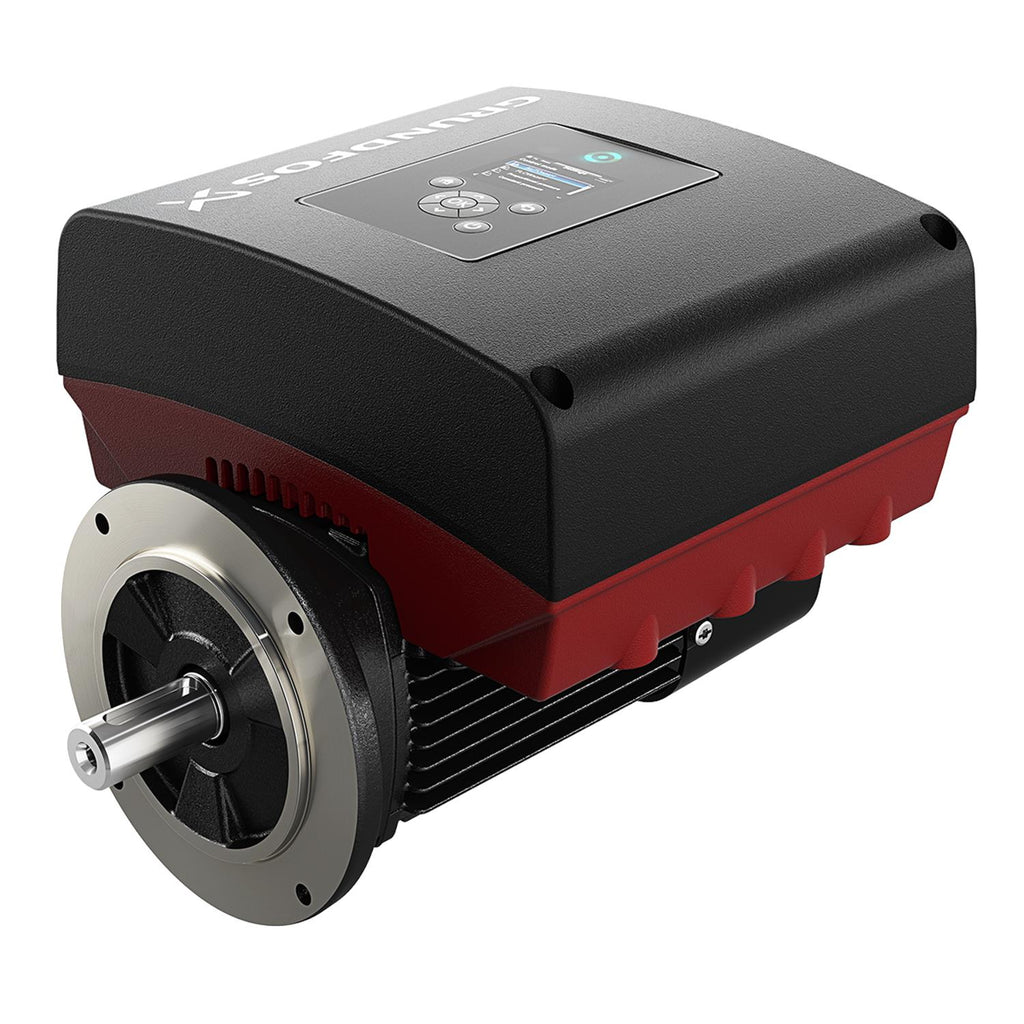

Grundfos 98362225 - MLE71A | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 98362225

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98362225 MLE71A is an integrated permanent magnet motor designed for use with compatible pump systems, suited to industrial and commercial maintenance teams and service technicians.

Key features

  • Engineered for various industrial pump applications and replacement use
  • Part of Grundfos Motors & Drives lineup and fits pump motor assemblies
  • High-efficiency permanent magnet design for improved energy performance in continuous-duty operations

Applications

Suitable for pump repair and retrofit projects, HVAC recirculation systems, process pumping environments, and maintenance replacement programs where matching the exact motor model is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98362225

EAN 5710629882714
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98400901
Control panel HMI200 - Standard
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 56C
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Model I
Moment of inertia 0.0002 kg m²
Motor 56C
Motor efficiency at full load 1 0.857
Motor standard NEMA
Motor type 71A
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 12.0 kg
Power factor 1 0.68
Product family MGE, MLE
Range of ambient temperature -20 .. 50 °C
Rated current 1.35 A
Rated full-load torque 1 1.5 Nm
Rated power - P2 0.55 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.25
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

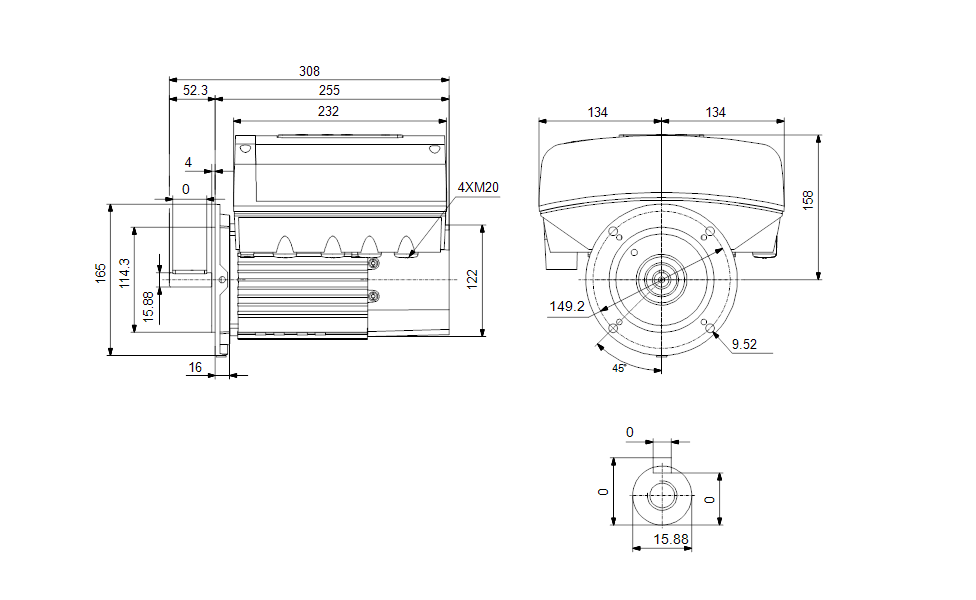

Dimensional Drawing

DWiring Diagram
