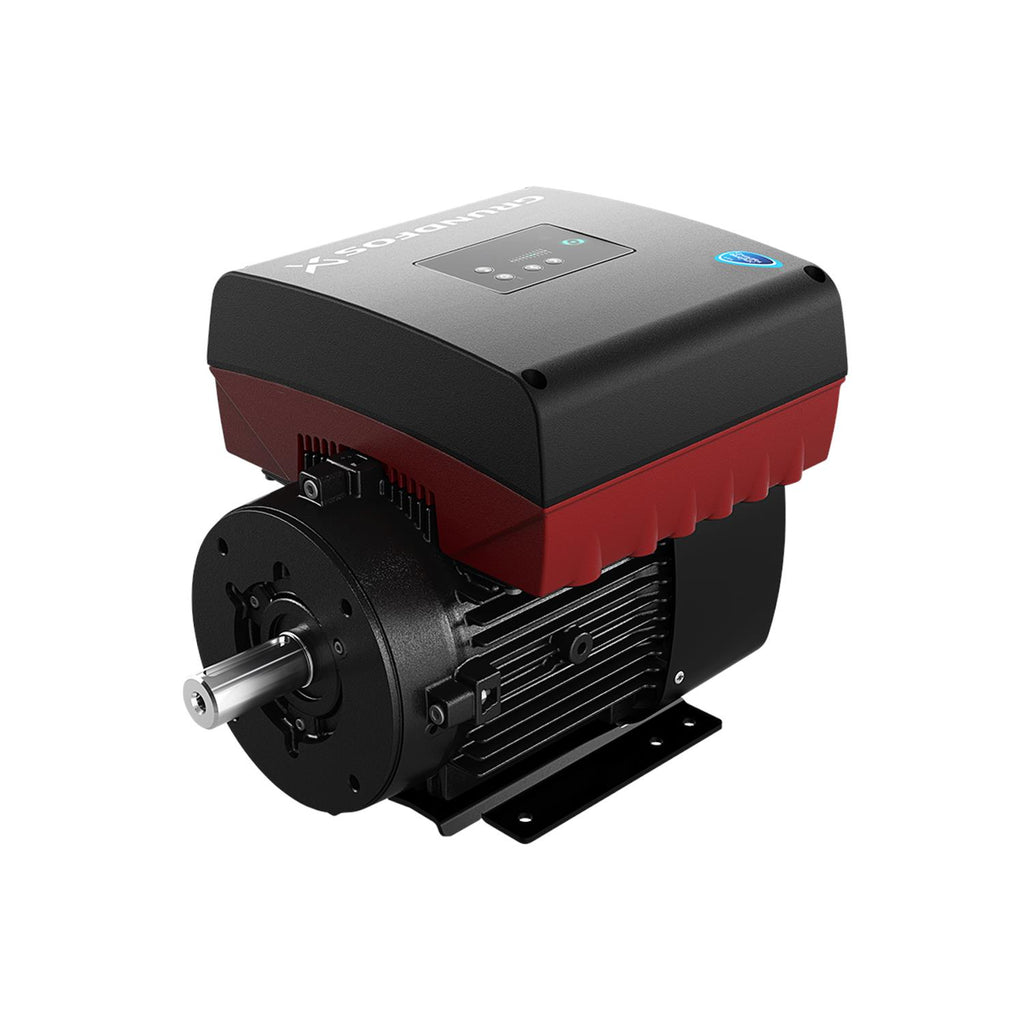

Grundfos 99298960 - MLE160H | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99298960

Price:
Sale price$14,234.72
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99298960 MLE160H is an integrated motor unit featuring a permanent magnet design and high-efficiency operation, suited for industrial motor and drive systems and used by maintenance technicians and OEM service teams.

Key features

  • Integrated motor with permanent magnet technology for compact installation
  • High-efficiency design suitable for Grundfos Motors & Drives and Mge Mle applications
  • Delivers reliable performance for pump motor replacements and drive retrofits

Applications

Replacement motor for pump systems, motor-drive upgrades, industrial fluid handling, and shop-by-type pump motor service work.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99298960

EAN 5713826825270
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 99540754
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 254TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Lubricant type UNIREX N3
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.423 lb ft²
Motor 254TC
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 121.0 lb
Power factor 1 0.92-0.91
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 17.9-16.6 A
Rated full-load torque 1 22.5 ft lb
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Temperature 1 2660 h / 104 °F
Temperature 2 1680 h / 50 °C
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat
Lubricant quan. 12 g

Motor Curves

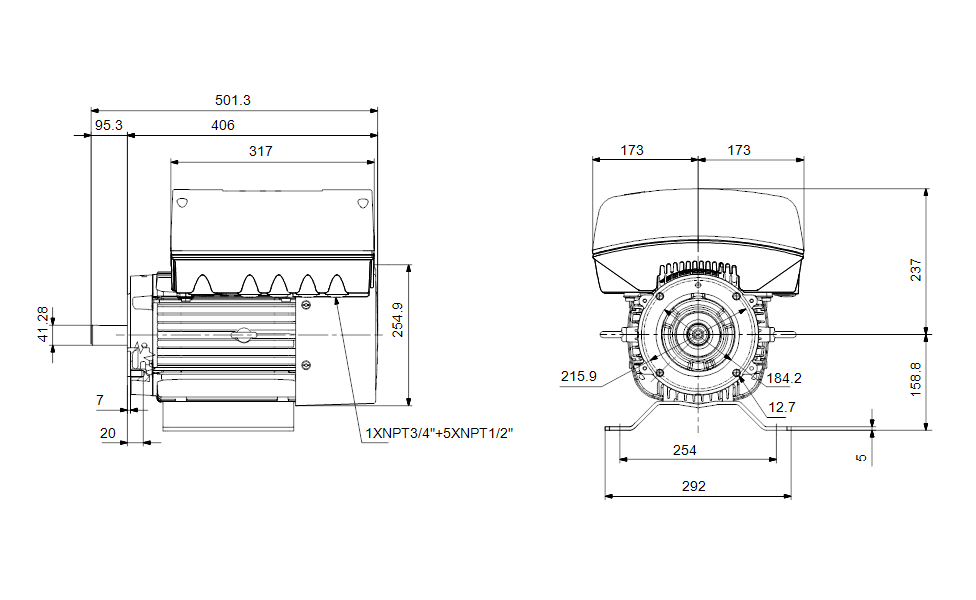

Dimensional Drawing

DWiring Diagram
