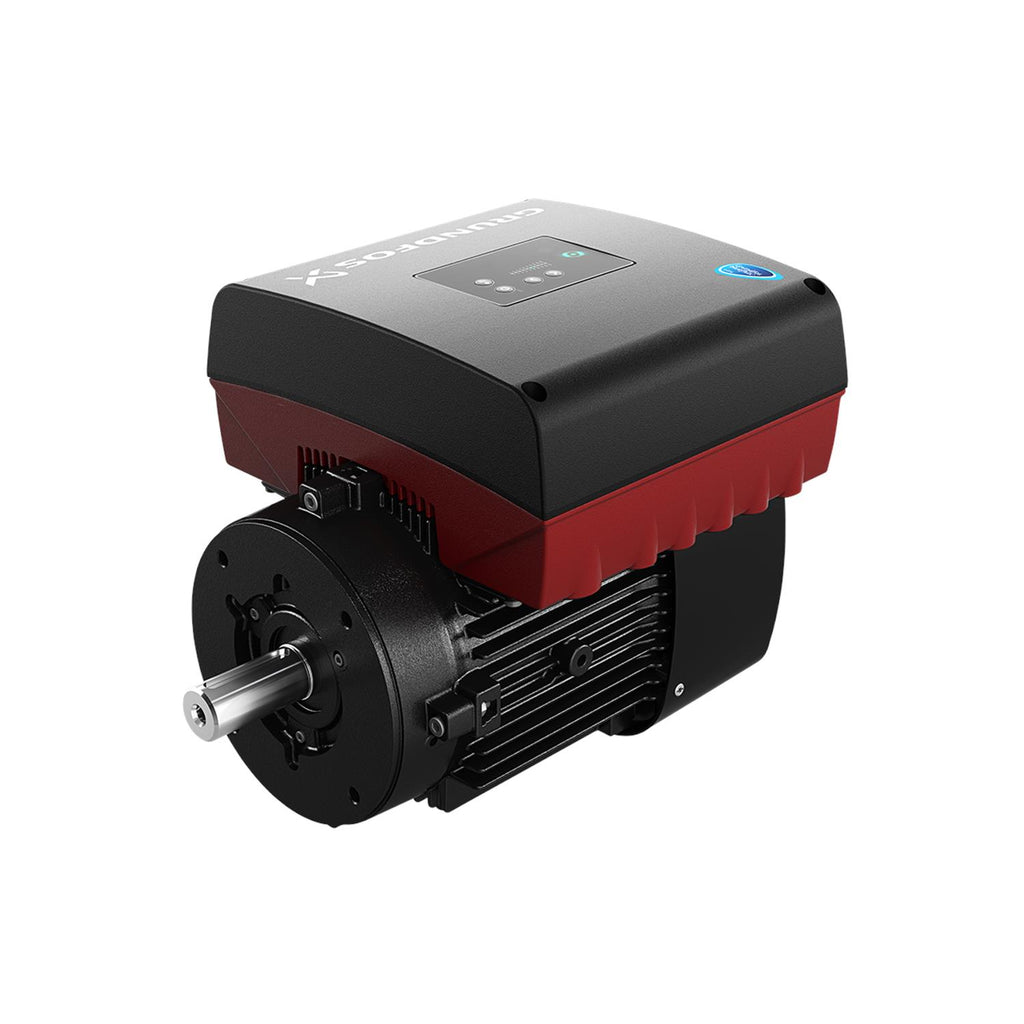

Grundfos 98971062 - MLE160H | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 98971062

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98971062 (MLE160H) is an integrated permanent magnet motor designed for industrial pump drive applications and used by maintenance and service professionals seeking high-efficiency motor solutions.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Part of the MGE/MLE family for motor and drive compatibility
  • Integrated permanent magnet design for high efficiency and reduced operating costs

Applications

Suitable for pump drive upgrades, motor replacements in HVAC, process water and industrial pumping systems, and facilities requiring energy-efficient motor solutions.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98971062

EAN 5712604461334
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 99540754
Control panel HMI200 - Standard
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 254TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Lubricant type UNIREX N3
Mains frequency 50 Hz
Material Pricing Group 91
Model J
Moment of inertia 0.423 lb ft²
Motor 254TC
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 115.0 lb
Power factor 1 0.92-0.91
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 17.9-16.6 A
Rated full-load torque 1 22.5 ft lb
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Temperature 1 3460 h / 104 °F
Temperature 2 2180 h / 50 °C
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat
Lubricant quan. 12 g

Motor Curves

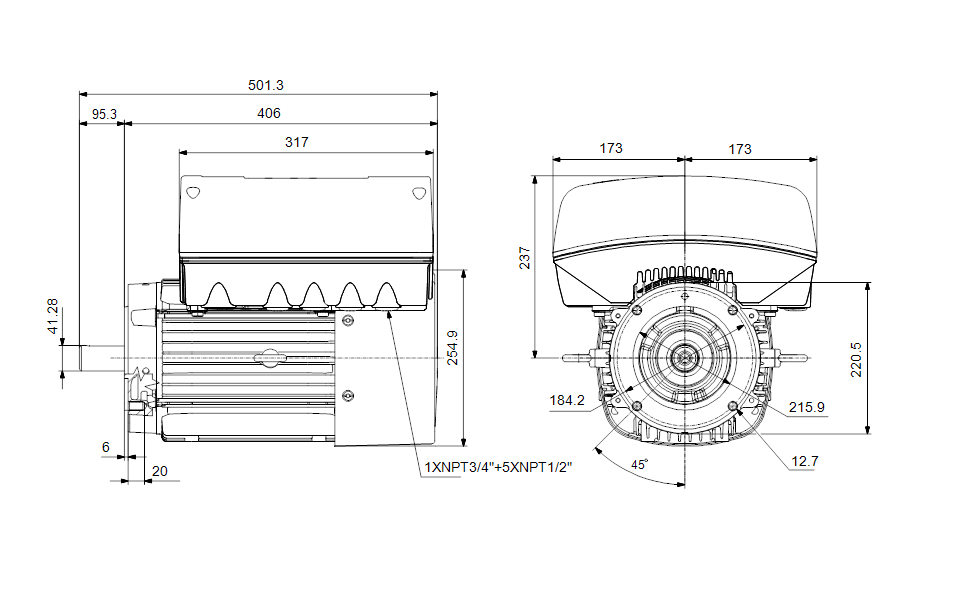

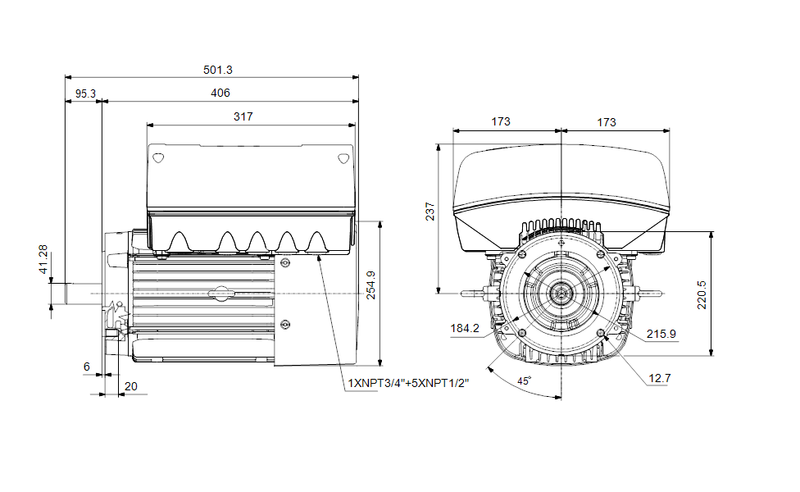

Dimensional Drawing
