Grundfos 99198234 - MLE132G | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99198234

Price:
Sale price$9,527.78
or Call for most up to date lead times. (781) 281-8905

Description

Overview

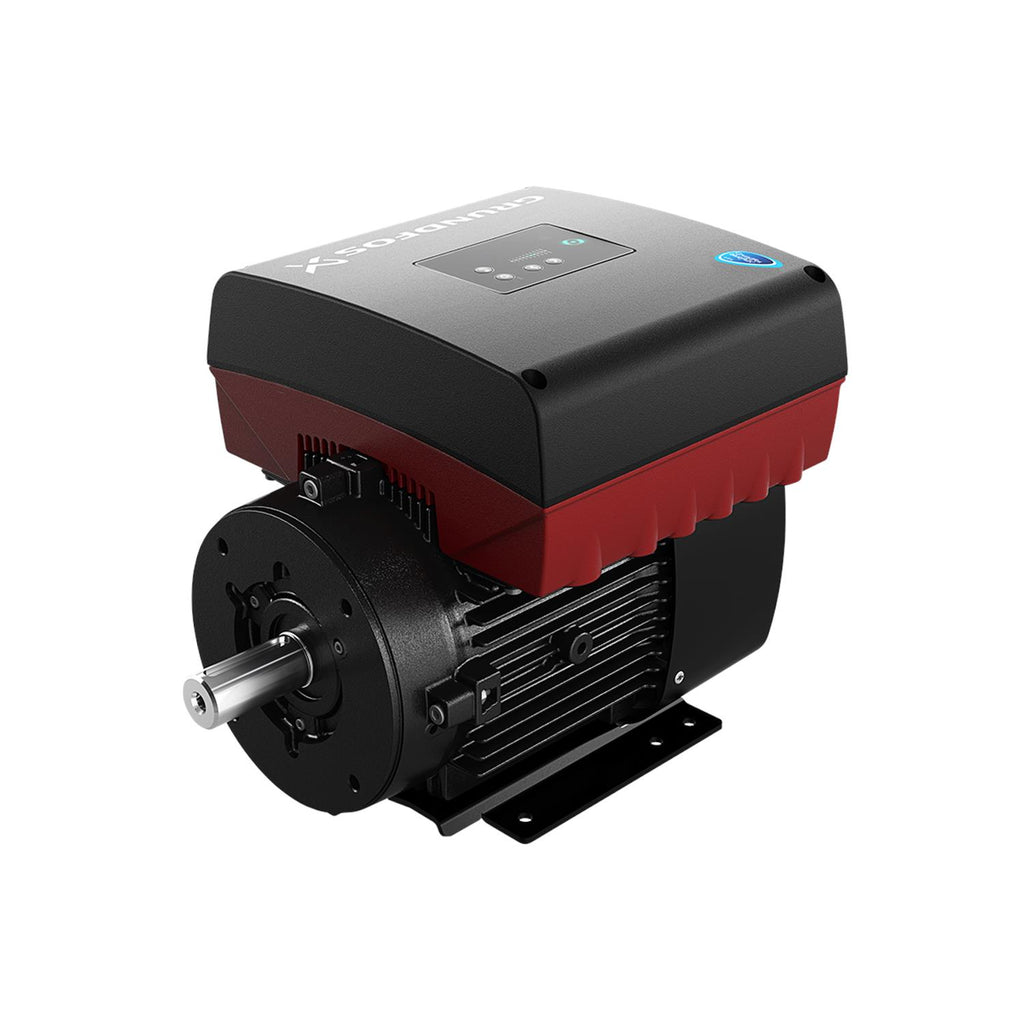

This Grundfos 99198234 MLE132G is an integrated motor assembly designed for use with motor-driven pumps and industrial drive systems. It suits technicians and maintenance teams replacing motors or upgrading to permanent magnet, high-efficiency motor solutions.

Key features

  • Integrated motor configuration for compact installation and straightforward replacement
  • Listed under Motors & Drives and Mge Mle, compatible with pump motor applications
  • High-efficiency permanent magnet design provides reduced energy use and quieter operation

Applications

Ideal for pump repair shops, industrial process systems, HVAC circulation pumps, and retrofit projects where a compact, efficient motor is required. Keep claims general and confirm fitment for your equipment.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99198234

EAN 5712608527197
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998433
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.342 lb ft²
Motor 213TC
Motor efficiency at full load 1 0.931
Motor standard NEMA
Motor type 132G
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 101.0 lb
Power factor 1 0.91-0.89
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 9.10-8.70 A
Rated full-load torque 1 22.5 ft lb
Rated power - P2 5.5 kW
Rated speed 180-2200 rpm
Rated voltage 3 x 440-480 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

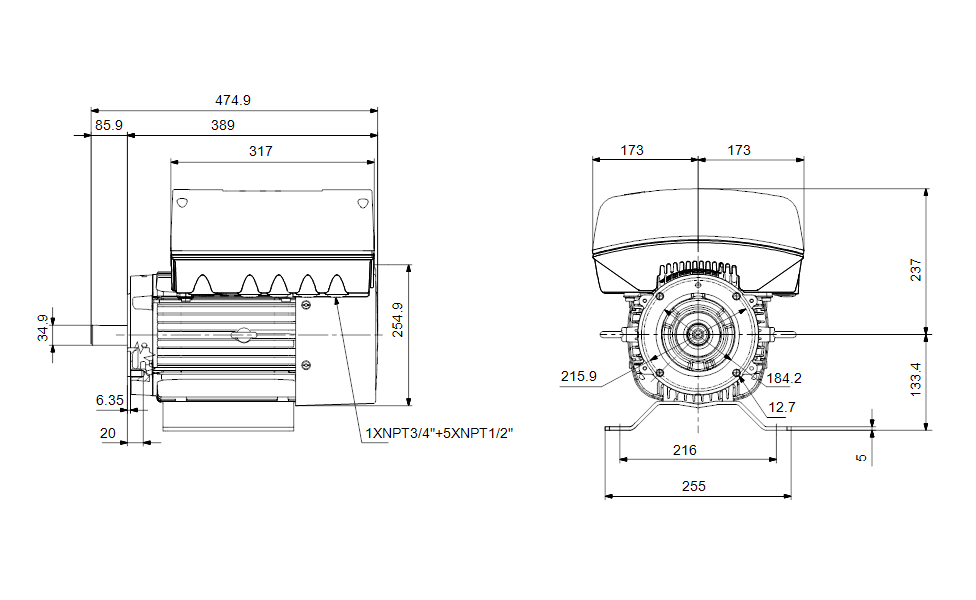

Dimensional Drawing

DWiring Diagram
