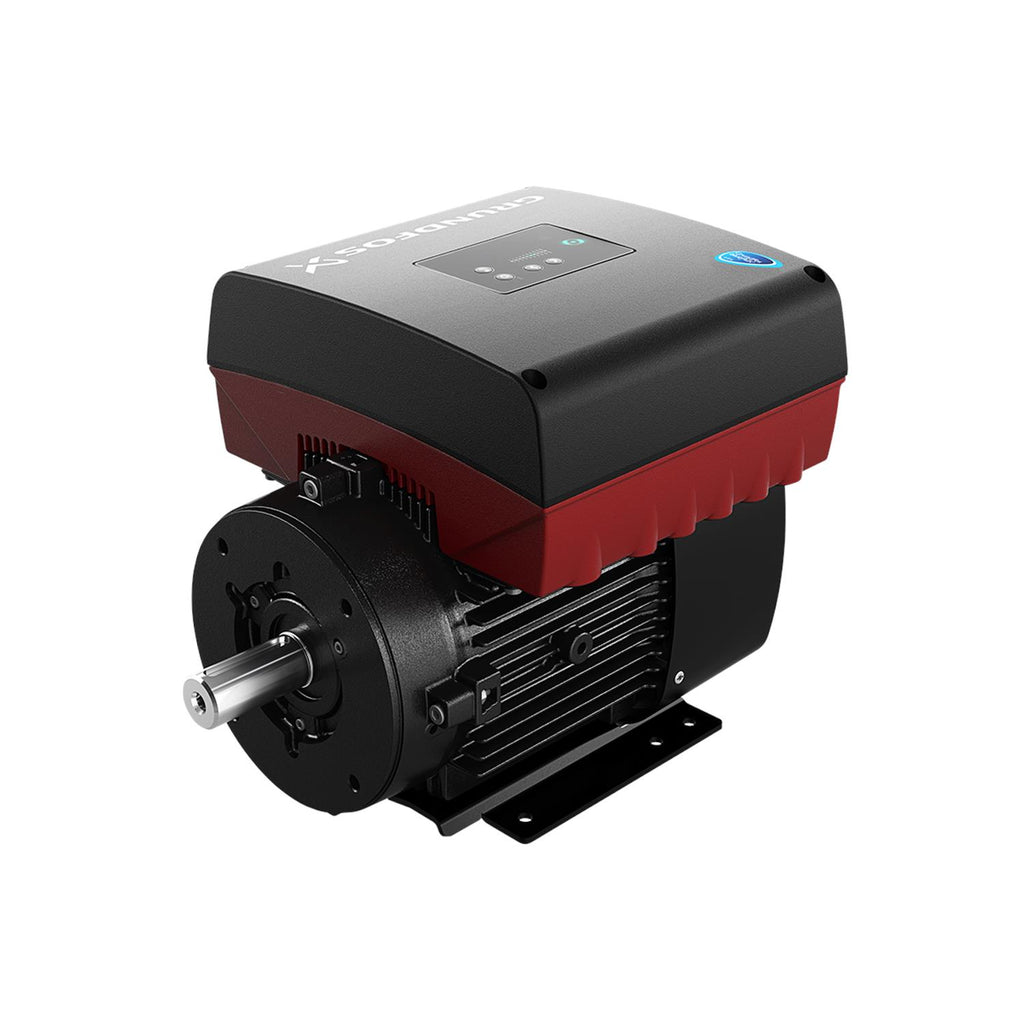

Grundfos 99302136 - MLE132F | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99302136

Price:
Sale price$11,415.28
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99302136 MLE132F is an integrated permanent magnet motor designed for use with pump motor assemblies in industrial settings. It is aimed at technicians and facilities managers needing high-efficiency motor replacements and upgrades.

Key features

  • Manufactured for various industrial applications, suitable for replacement and repair
  • Part of the Grundfos Motors & Drives family and MGE/MLE series compatibility cues
  • Integrated motor design offers compact installation and improved operational efficiency

Applications

Typical uses include pump motor replacements, industrial fluid handling systems, HVAC support pumps, and maintenance inventories for plants and service providers.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99302136

EAN 5713826875411
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 99251223
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.281 lb ft²
Motor 213TC
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type 132F
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 88.2 lb
Power factor 1 0.94
Product family MGE, MLE
Range of ambient temperature -4 .. 104 °F
Rated current 20.0-16.6 A
Rated full-load torque 1 11.58 ft lb
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time 1 Available on 11/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

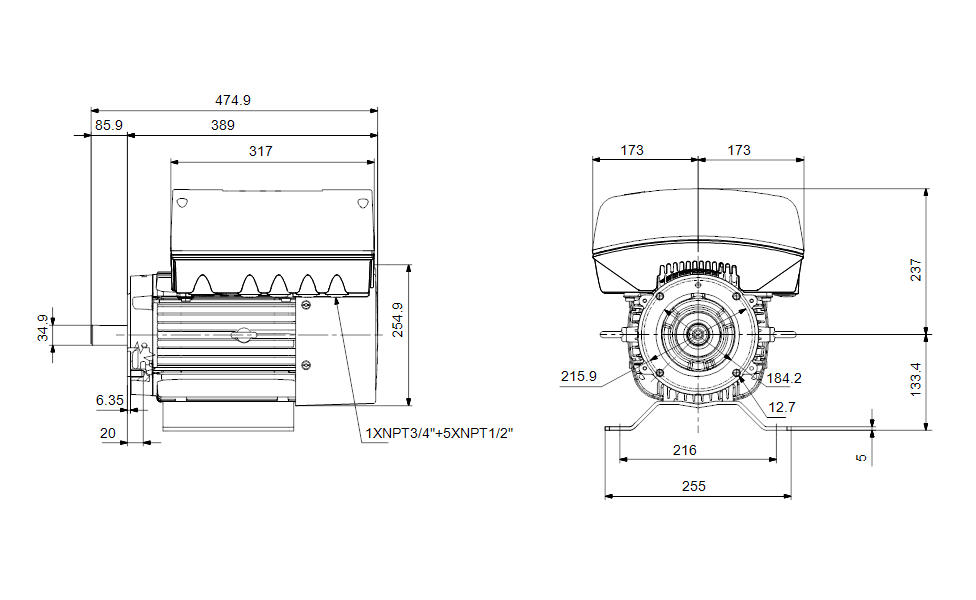

Dimensional Drawing

DWiring Diagram
