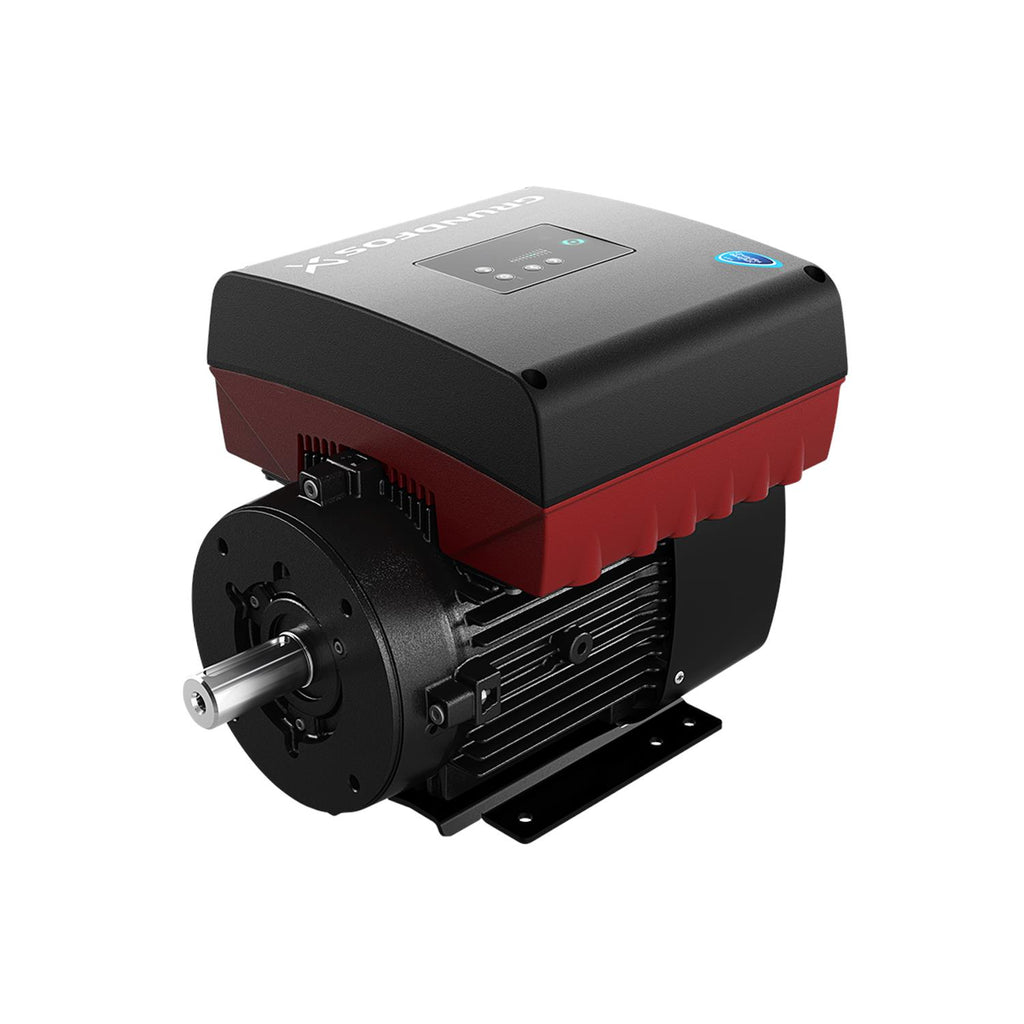

Grundfos 99298959 - MLE132F | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99298959

Price:
Sale price$11,415.28
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99298959 - MLE132F is an integrated, high-efficiency permanent magnet motor assembly designed for replacement in compatible pump drive systems, suitable for industrial and commercial service technicians and maintenance teams.

Key features

  • Factory-manufactured integrated motor assembly intended for pump drive integration and retrofit
  • Permanent magnet design for improved efficiency and torque characteristics (motors & drives category)
  • Delivers energy savings and reliable operation to reduce downtime and simplify maintenance

Applications

Commonly used in industrial pumping systems, HVAC circulation, process water handling, and other motor-driven pump applications where a direct motor replacement or upgrade is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99298959

EAN 5713826825256
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998438
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.294 lb ft²
Motor 213TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 94.8 lb
Power factor 1 0.91-0.90
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 12.4-11.5 A
Rated full-load torque 1 15.05 ft lb
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

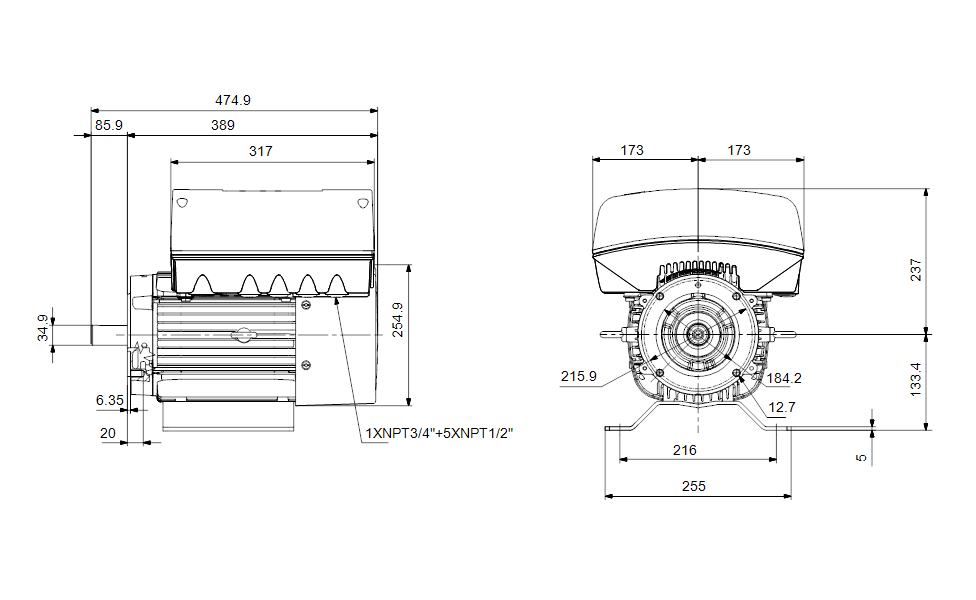

Dimensional Drawing

DWiring Diagram
