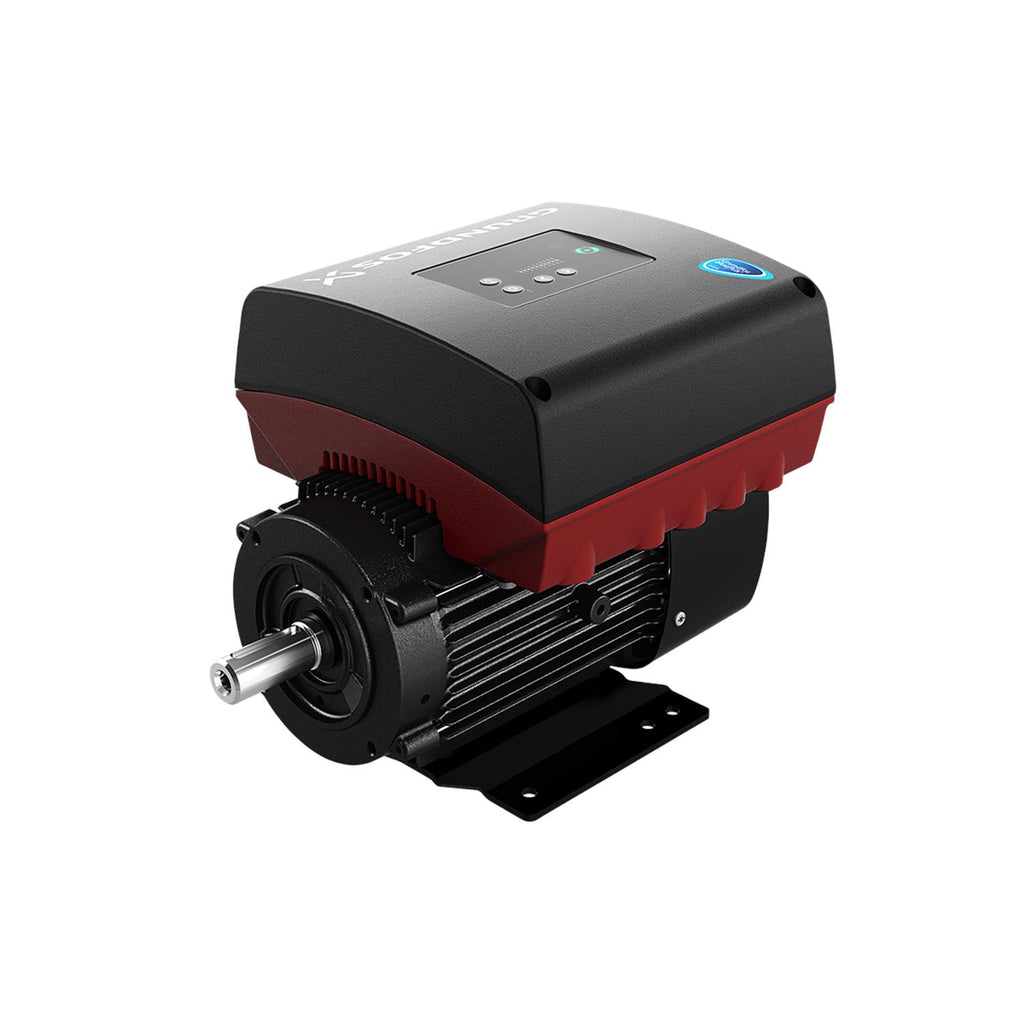

Grundfos 99298953 - MLE132E | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99298953

Price:
Sale price$9,461.11
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99298953 MLE132E is an integrated permanent magnet motor intended for use with pumping systems and motor drive assemblies by industrial and commercial technicians.

Key features

  • Integrated motor design tailored for motor and drive installations
  • Part of the Grundfos Motors & Drives MGE/MLE family for consistent compatibility
  • High-efficiency permanent magnet construction improves energy performance in continuous-duty applications

Applications

Suitable for pump motor replacements, drive system upgrades, and industrial pumping equipment where compact, efficient motor modules are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99298953

EAN 5713826825133
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998437
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.167 lb ft²
Motor 213TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 72.8 lb
Power factor 1 0.91-0.89
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 9.10-8.50 A
Rated full-load torque 1 11.28 ft lb
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

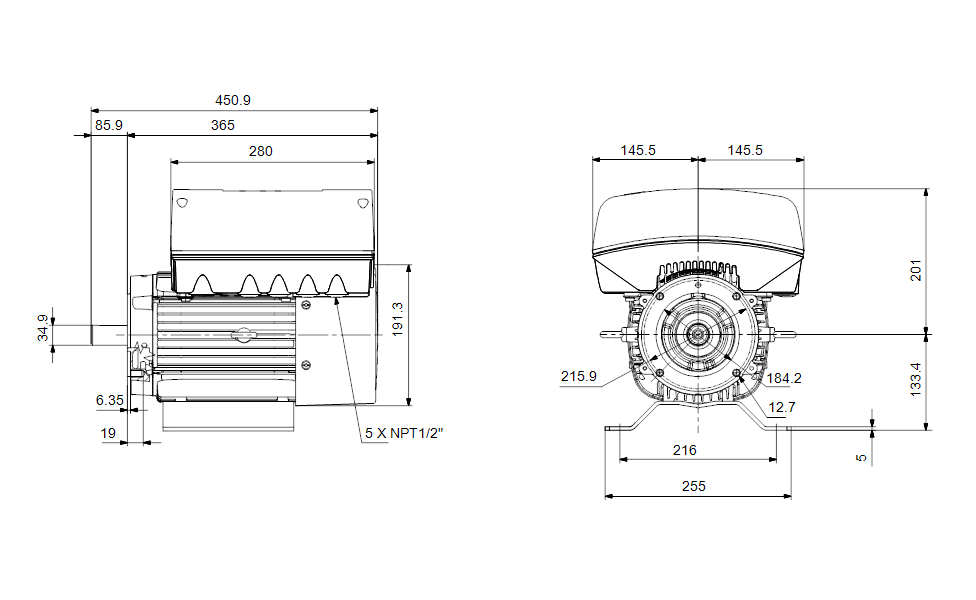

Dimensional Drawing

DWiring Diagram
