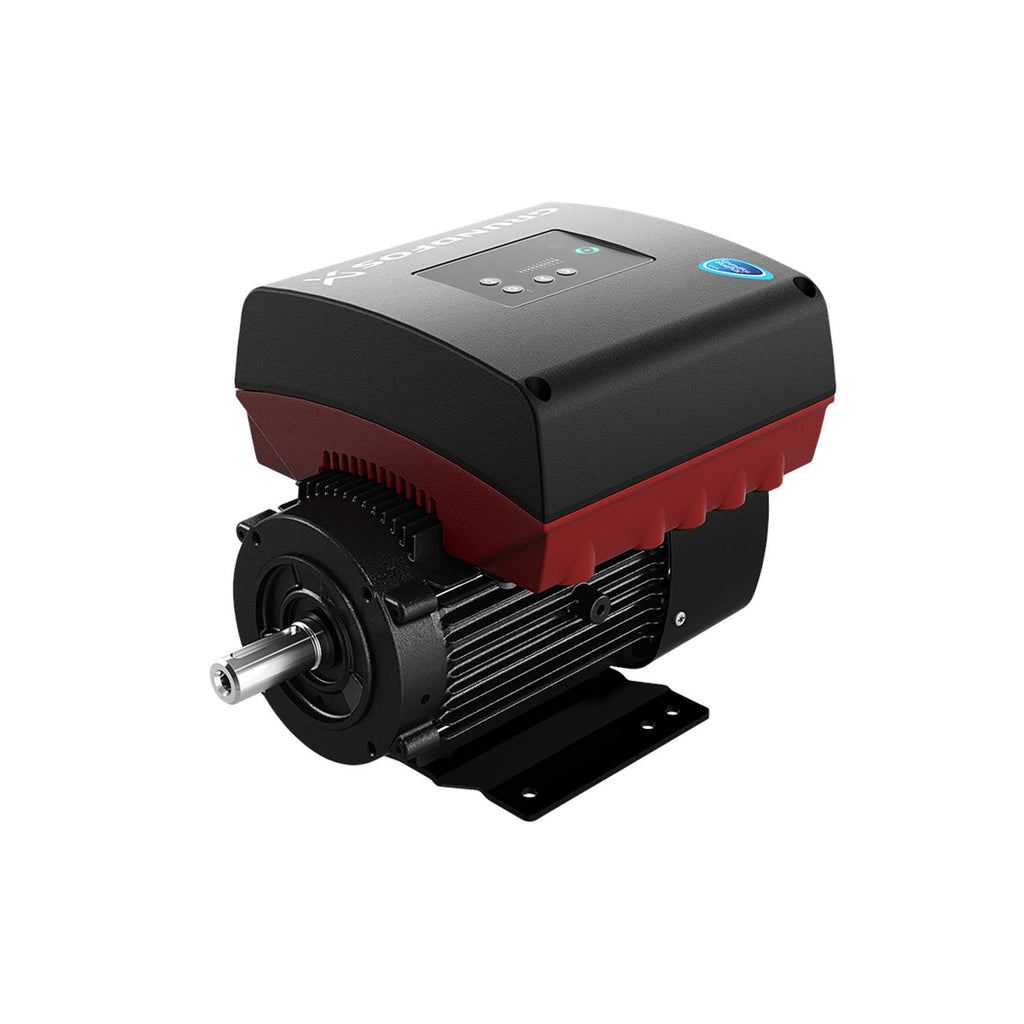

Grundfos 99198232 - MLE112E | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99198232

Price:
Sale price$8,004.17
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99198232 - MLE112E is an integrated motor, permanent magnet pump motor designed for industrial and commercial pump systems; it suits operators and technicians replacing or upgrading motor-driven pumps.

Key features

  • Integrated motor design for compact installation and easier replacement
  • Permanent magnet technology from Grundfos Motors & Drives for improved performance
  • High efficiency operation reduces energy use and lowers operating costs

Applications

Common uses include water circulation, HVAC systems, process pumping, and other industrial fluid transfer applications where compact, efficient motor solutions are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99198232

EAN 5712608527135
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998432
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.165 lb ft²
Motor 182TC
Motor efficiency at full load 1 0.922
Motor standard NEMA
Motor type 112E
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 68.4 lb
Power factor 1 0.90-0.88
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 6.20-5.80 A
Rated full-load torque 1 15.05 ft lb
Rated power - P2 3.7 kW
Rated speed 180-2200 rpm
Rated voltage 3 x 440-480 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

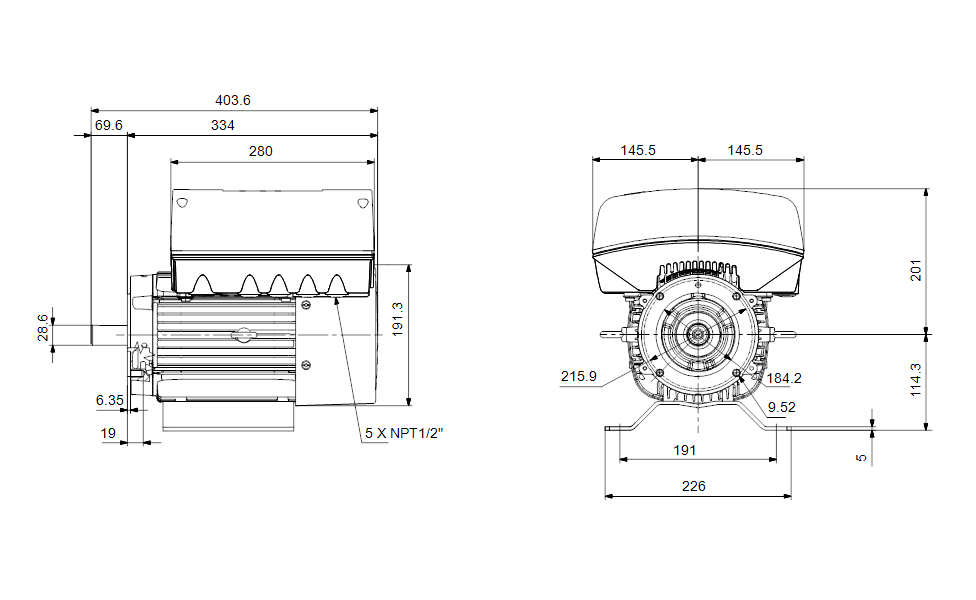

Dimensional Drawing

DWiring Diagram
