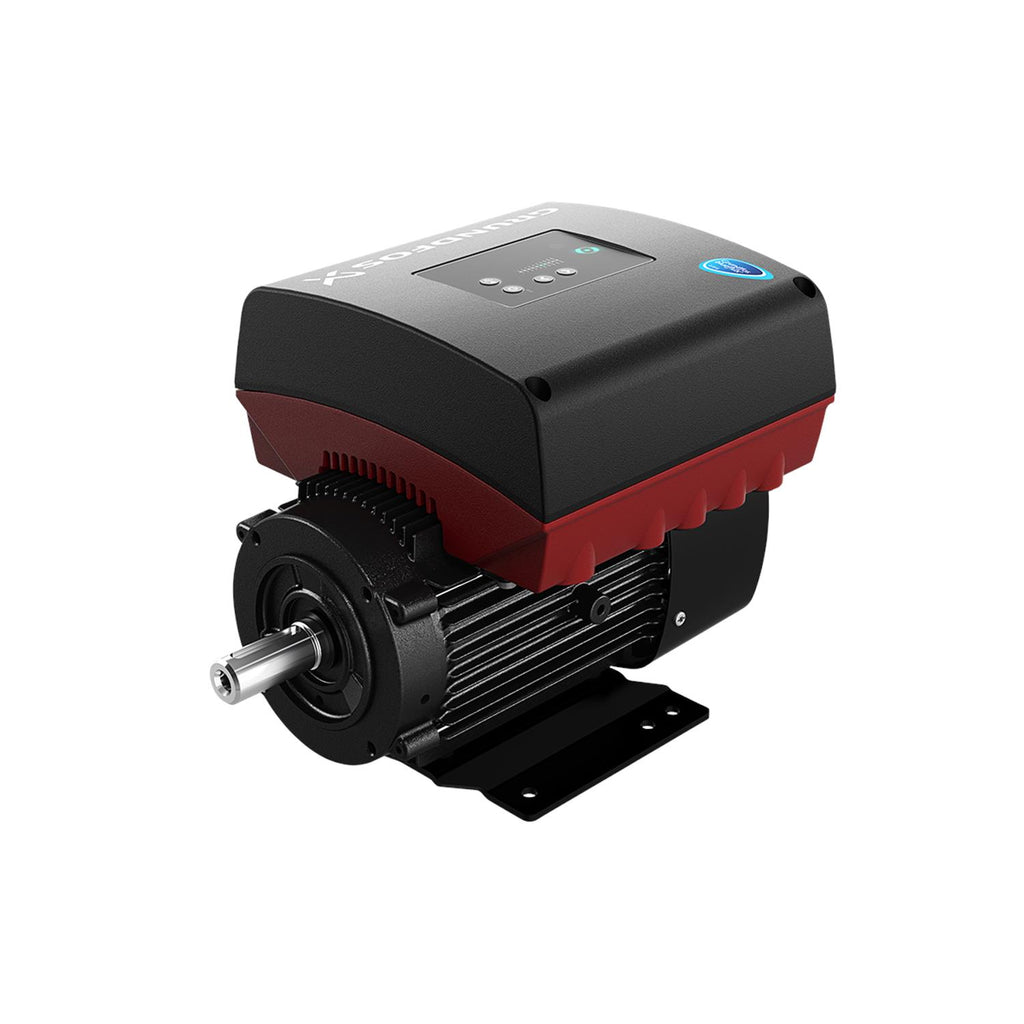

Grundfos 99302133 - MLE112C | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99302133

Price:
Sale price$9,461.11
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99302133 - MLE112C is an integrated motor assembly with a permanent magnet design and high-efficiency operation, intended for use where compact, efficient pump motors are required by technicians and plant maintenance teams.

Key features

  • Integrated motor unit engineered for industrial pump systems
  • Permanent magnet design for improved efficiency and reduced energy use
  • Compact form factor that simplifies replacement and installation

Applications

Suitable for use in motor-driven pumps and drive systems where reliable, energy-efficient motor performance is needed; common in commercial and light industrial circulating and process applications.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99302133

EAN 5713826875176
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 99251011
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.124 lb ft²
Motor 182TC
Motor efficiency at full load 1 0.909
Motor standard NEMA
Motor type 112C
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 57.3 lb
Power factor 1 0.94
Product family MGE, MLE
Range of ambient temperature -4 .. 104 °F
Rated current 13.2-10.9 A
Rated full-load torque 1 7.744 ft lb
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

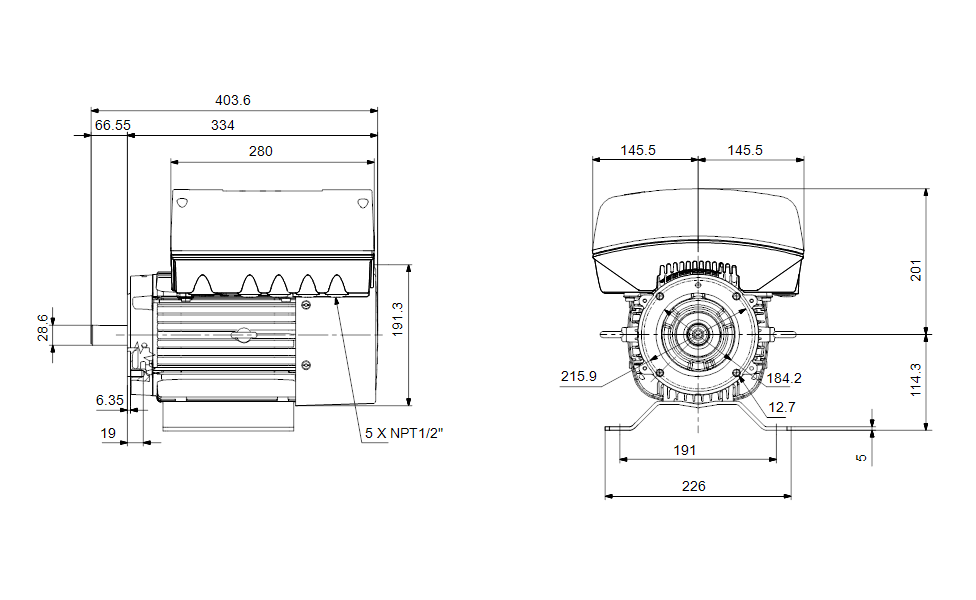

Dimensional Drawing

DWiring Diagram
