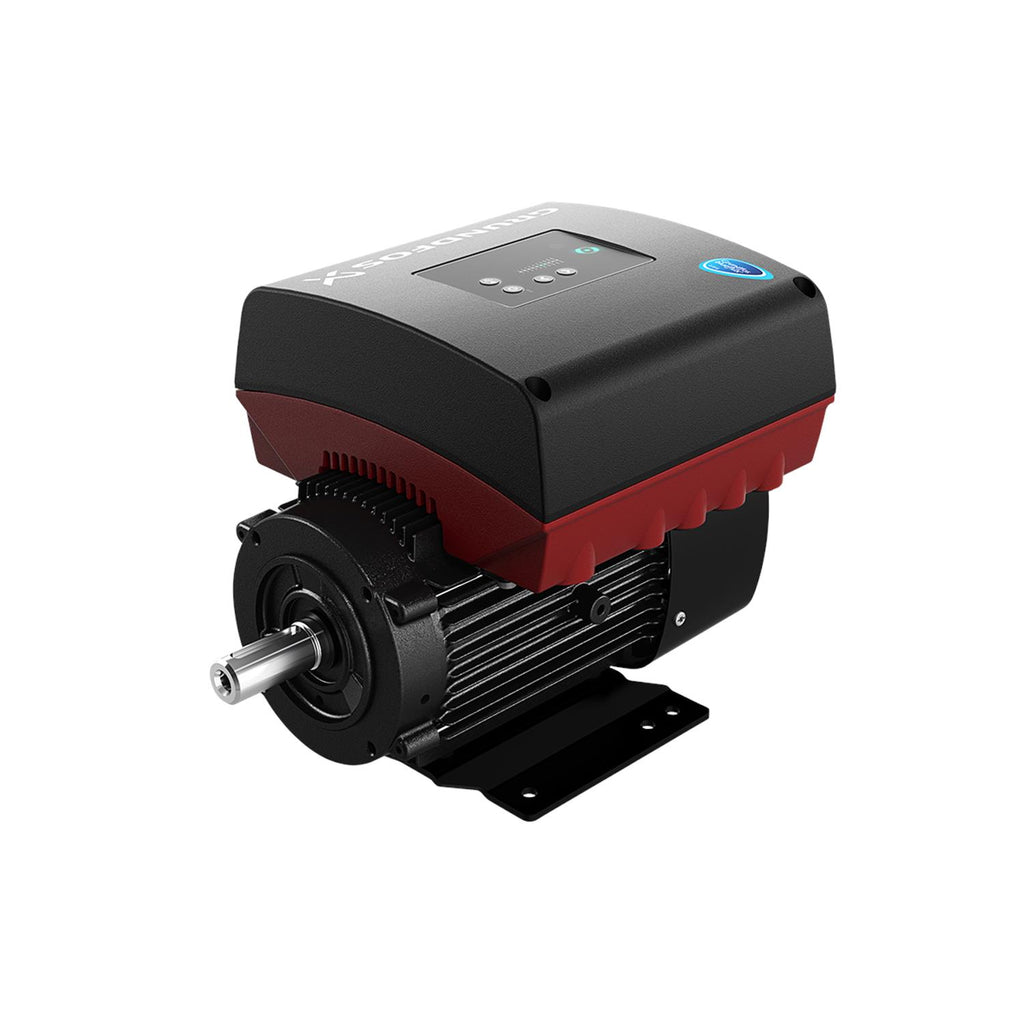

Grundfos 99298931 - MLE112C | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99298931

Price:
Sale price$8,004.17
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99298931 MLE112C integrated permanent magnet motor designed for high-efficiency pump drive applications, suitable for industrial and commercial pump systems used by service technicians and OEMs.

Key features

  • Integrated motor design for compact installation in pump systems
  • Part of the MGE/MLE family focused on motor and drive integration
  • High efficiency permanent magnet construction reduces energy use and heat

Applications

Typical use includes retrofit or replacement in centrifugal pump assemblies, HVAC circulation, water treatment, and general industrial pumping where compact, efficient motor drives are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99298931

EAN 5713826824884
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998436
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.124 lb ft²
Motor 182TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 59.5 lb
Power factor 1 0.90-0.88
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 6.20-5.80 A
Rated full-load torque 1 7.523 ft lb
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

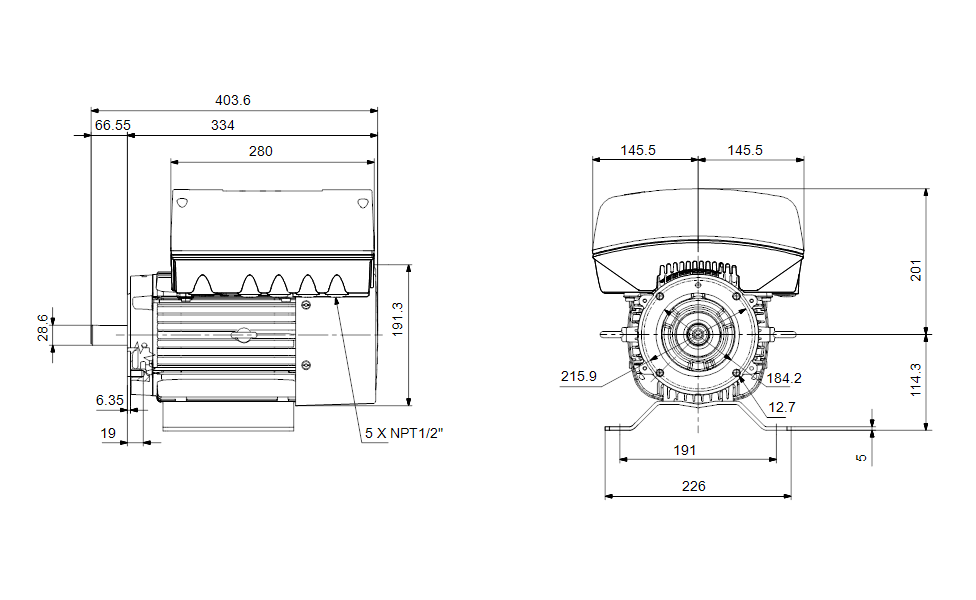

Dimensional Drawing

DWiring Diagram
