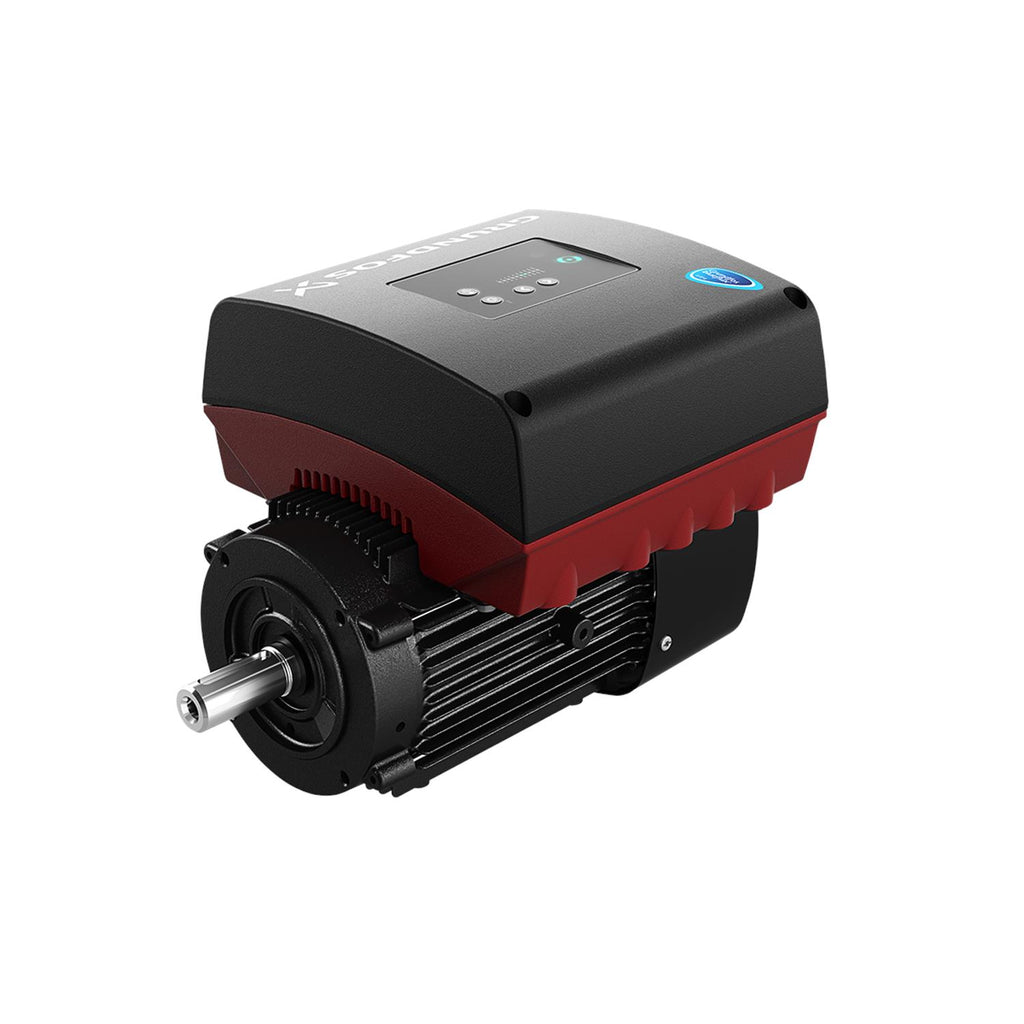

Grundfos 99256771 - MLE112C | Integrated Motor | Permanent Magnet | High Efficiency

GrundfosSKU: 99256771

Price:
Sale price$4,839.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MLE112C · Grundfos Accessory / Spare Part / Control
ACC5HP440-480V3-Phase50, 60 HzIE5IP55

The Grundfos 99256771 (MLE112C) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 440-480V, 3-Phase, 50, 60 Hz.

Power
5HP
Voltage
440-480V
Phase
3-Phase
Frequency
50, 60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MLE112C
Series: ACC
Model Code: MLE112C
Technical Specifications
Model Number 99256771
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 5HP
Voltage 440-480V
Phase 3-Phase
Frequency 50, 60 Hz
Motor Speed 360-4000rpm
Full Load Current 6,20-5,80A
Motor Type 112C
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 92.5%
Insulation Class F
Protection Class (IP) IP55
Max Ambient Temperature 122°F
Min Ambient Temperature -4°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 440-480V, 3-Phase, 50, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MLE112C
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5713826094676
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998436
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Model J
Moment of inertia 0.124 lb ft²
Motor 182TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 57.3 lb
Power factor 1 0.90-0.88
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 6.20-5.80 A
Rated full-load torque 1 7.523 ft lb
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

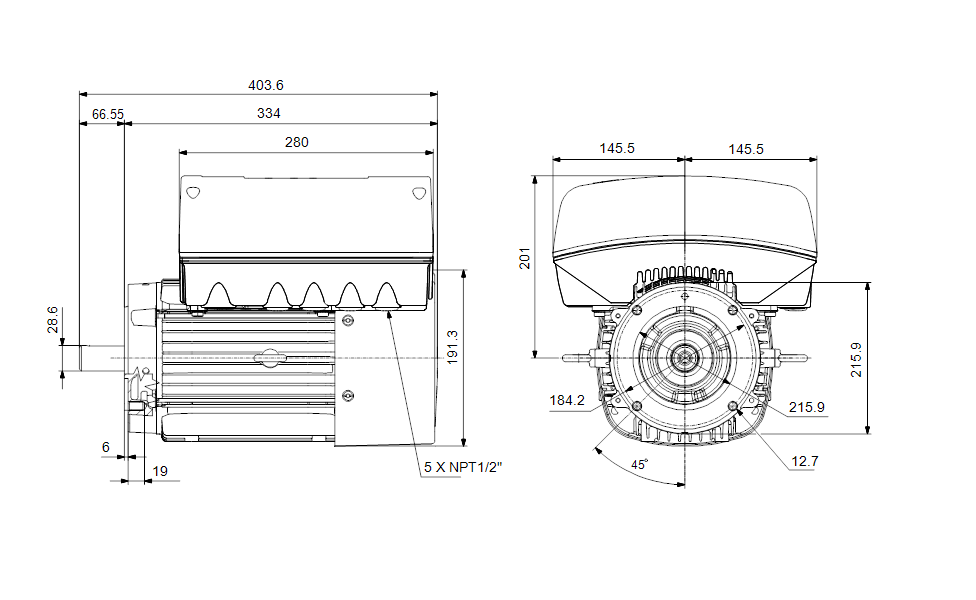

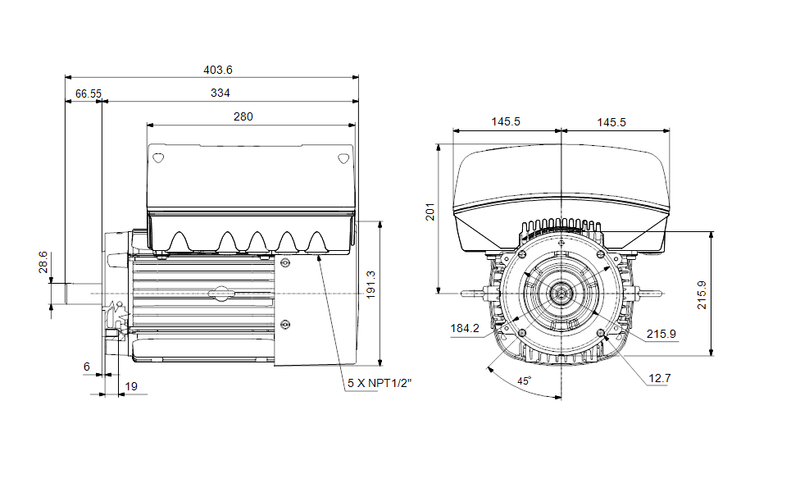

Dimensional Drawing

DWiring Diagram
