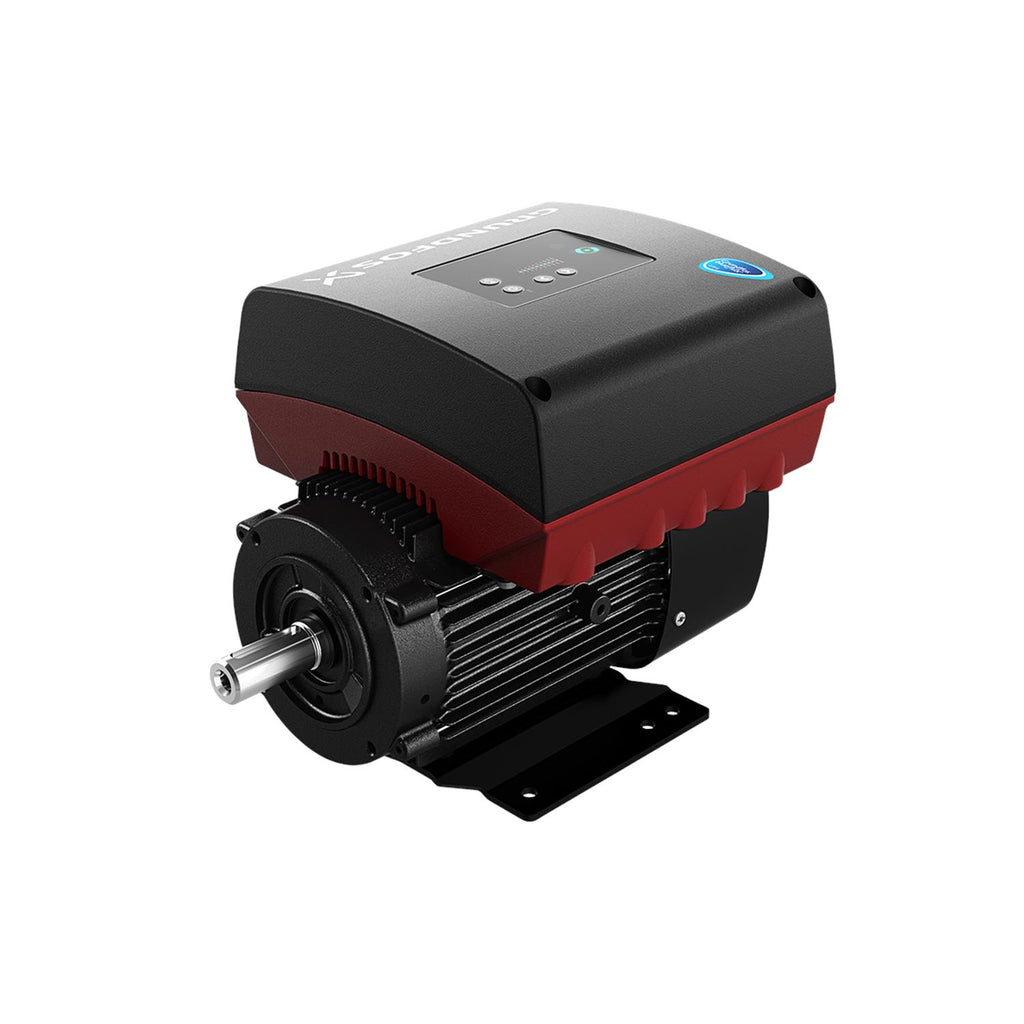

Grundfos 99198279 - MLE100B | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99198279

Price:
Sale price$5,822.22
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99198279 MLE100B is an integrated motor assembly featuring a permanent magnet design and high-efficiency operation, intended for replacement in compatible pump drive systems and industrial motor applications used by facility maintenance and OEM service teams.

Key features

  • Integrated motor with permanent magnet technology for efficient operation
  • Designed for pump motor and drive applications (Grundfos Motors & Drives, Mge Mle)
  • Provides reliable performance and reduced energy use for system upgrades or repairs

Applications

Suitable for motor replacement in industrial pumps, HVAC chillers, and other fluid-handling systems where compact, high-efficiency motor modules are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99198279

EAN 5712608528385
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998144
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.112 lb ft²
Motor 182TC
Motor efficiency at full load 1 0.911
Motor standard NEMA
Motor type 100B
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 57.3 lb
Power factor 1 0.87-0.83
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 3.90-3.70 A
Rated full-load torque 1 9.072 ft lb
Rated power - P2 2.2 kW
Rated speed 180-2200 rpm
Rated voltage 3 x 440-480 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

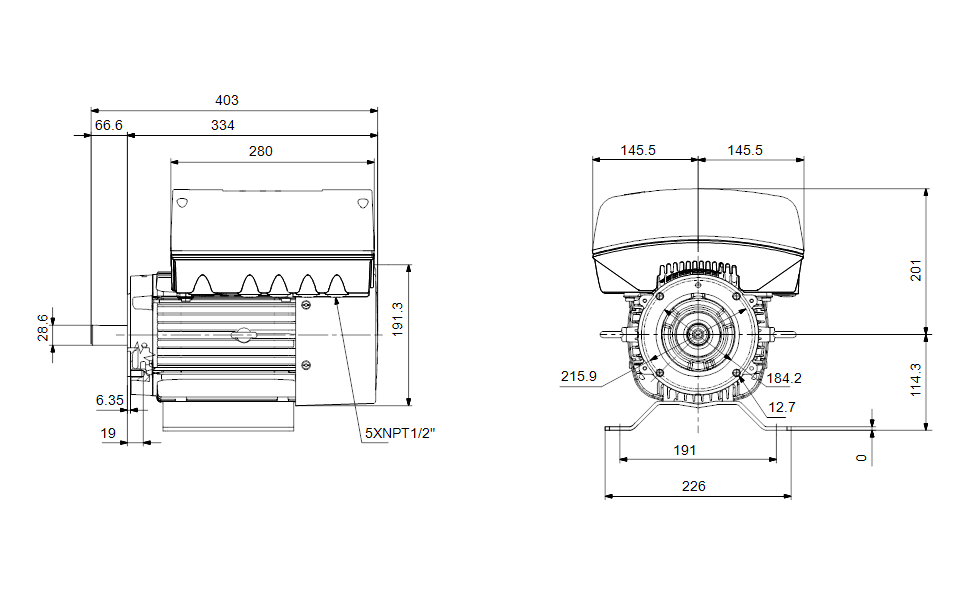

Dimensional Drawing

DWiring Diagram
