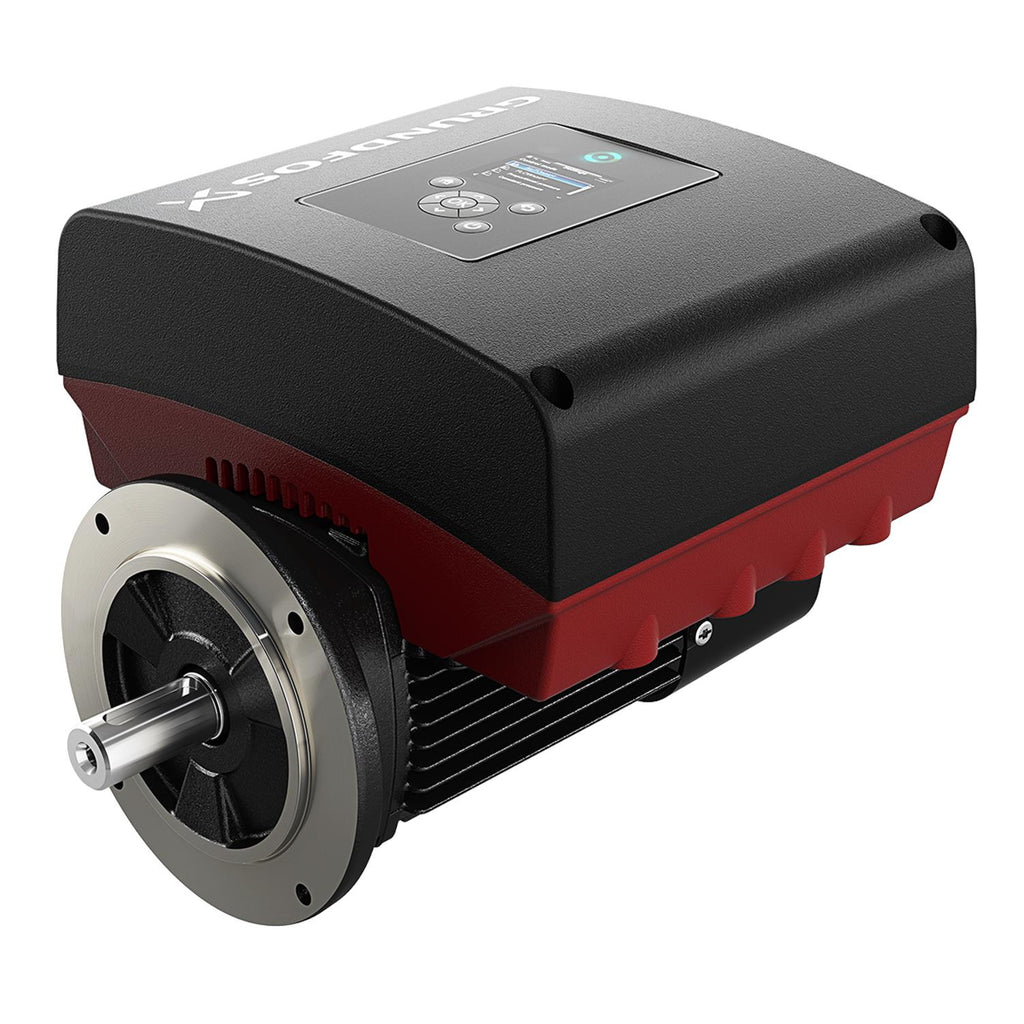

Grundfos 99302131 - MLE100A | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99302131

Price:
Sale price$5,822.22
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99302131 - MLE100A is an integrated permanent magnet motor designed for use with compatible pump systems, suited to industrial and commercial environments where high efficiency and compact design are required.

Key features

  • Integrated motor unit engineered for reliable operation in a variety of industrial applications
  • Part of the Grundfos Motors & Drives family and MLE series for motor efficiency
  • Delivers energy savings and reduced heat generation for longer service life

Applications

Typical uses include replacement or upgrade in pump systems for HVAC, process, and general industrial fluid handling where compact, high-efficiency motors are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99302131

EAN 5713826875145
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 99251009
Control panel HMI300 - Advanced
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.092 lb ft²
Motor 182TC
Motor efficiency at full load 1 0.887
Motor standard NEMA
Motor type 100A
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 50.7 lb
Power factor 1 0.94
Product family MGE, MLE
Range of ambient temperature -4 .. 104 °F
Rated current 7.90-6.60 A
Rated full-load torque 1 4.647 ft lb
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time 1 Available on 10/17/2023 Plant: Brookshire  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

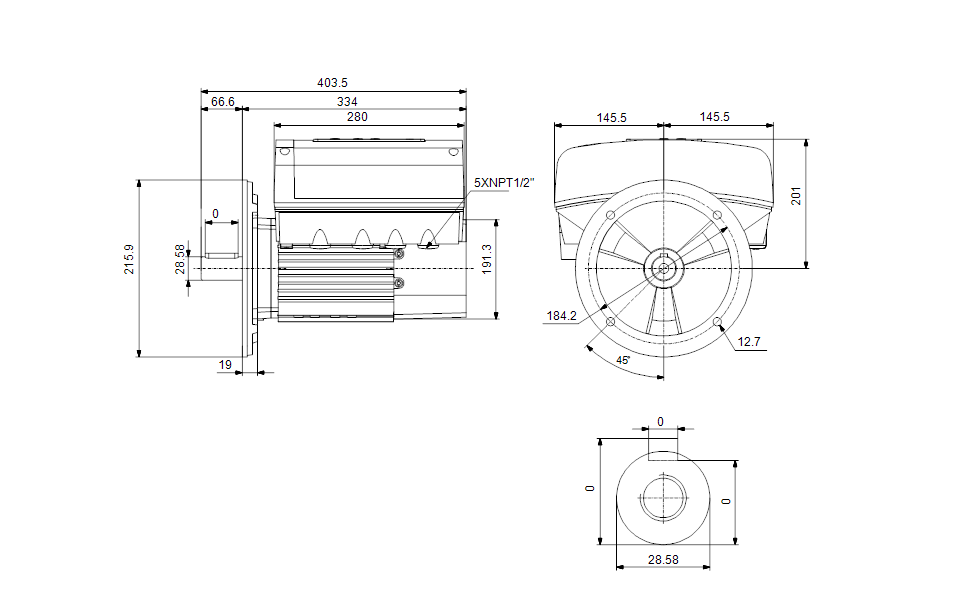

Dimensional Drawing

DWiring Diagram
