Grundfos 91129783 - CRT 8-14 A-P-A-E-AUUE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91129783

Price:
Sale price$59,111.25
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 91129783 - CRT 8-14 A-P-A-E-AUUE Vertical Multistage Centrifugal Pump

The Grundfos 91129783 - CRT 8-14 A-P-A-E-AUUE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for demanding environments.

With its robust construction and advanced design, the CRT 8-14 A-P-A-E-AUUE ensures optimal performance in high-pressure situations. This pump is perfect for applications requiring consistent flow rates and pressure, making it suitable for both commercial and industrial use.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5700398951230
Applications Industrial applications
Approvals CE
Built-in motor protection NONE
Code for rubber E
Connect code P
Connection PJE 2
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 254TC
Frequency 60 HZ
Frequency converter NONE
Gross weight 329.0 lb
Head max 726.4 ft
Housing Titanium
Impeller Titanium
Impellers 14
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 254TC
Motor protec NONE
Motor standard NEMA
Motor type BALDOR
n rpm 3450rpm
Net weight 296.0 lb
Number of poles 2
P2 HP 15 HP
P2 kW 11kW
Phase 3
Pipe connection PJE 2
Primary shaft seal AUUE
Product family CRT 8
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 52.8 US gpm
Rated flow 2 52.8 US gpm
Rated head 552.5 ft
Rated head 2 552.5 ft
Rated power - P2 15 HP
Rated speed 3450 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal AUUE
Stages 14
Standard NEMA
Type BALDOR
Version A

Motor Curves

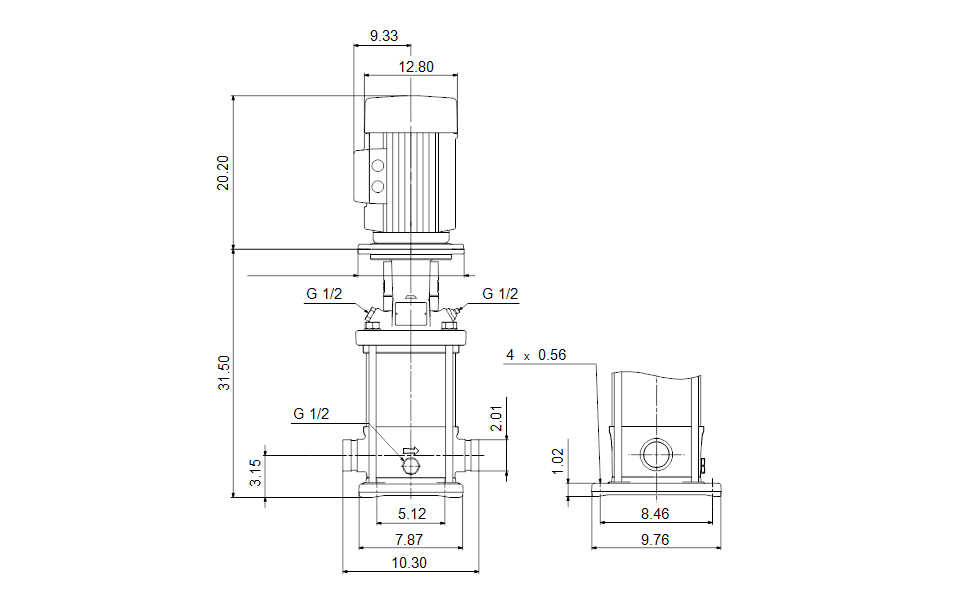

Dimensional Drawing
