Grundfos 96552947 - CRT 16-12 A-P-A-E-AUUE | Vertical | Multistage | Centrifugal

Save $17,055.80
GrundfosSKU: 96552947

Price:
Sale price$22,794.20 Regular price$39,850.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRT 16-12 A-P-A-E-AUUE · Grundfos Accessory / Spare Part / Control
ACC

The Grundfos 96552947 (CRT 16-12 A-P-A-E-AUUE) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor.

Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRT 16-12 A-P-A-E-AUUE
Series: ACC
Model Code: CRT 16-12 A-P-A-E-AUUE
Seal Type: Cartridge seal — A rubber bellows, UU SiC/SiC faces, E EPDM
Technical Specifications
Model Number 96552947
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Seal Code AUUE
Seal Description Cartridge seal — A rubber bellows, UU SiC/SiC faces, E EPDM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — CRT 16-12 A-P-A-E-AUUE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700398864288
Applications Industrial applications
Approvals CE
Code for rubber E
Connect code P
Connection PJE 2
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 284TC
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 179.0 lb
Head max 821.2 ft
Housing Titanium
Impeller Titanium
Impellers 12
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Motor 284TC
Motor standard NEMA
n rpm 3498rpm
Net weight 157.0 lb
Number of poles 2
Pipe connection PJE 2
Power (P2) required by pump 25 HP
Primary shaft seal AUUE
Product family CRT 16
Pump 25 HP
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 79.3 US gpm
Rated flow 2 79.3 US gpm
Rated head 626.7 ft
Rated head 2 626.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal AUUE
Stages 14
Standard Victaulic
Version A

Motor Curves

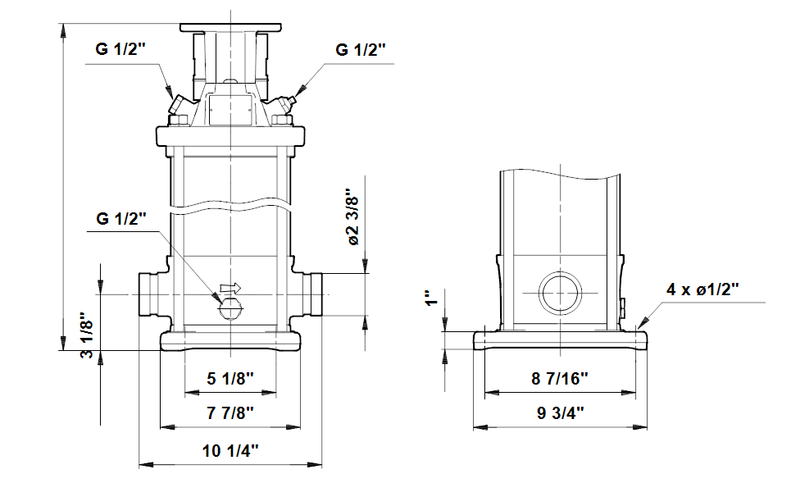

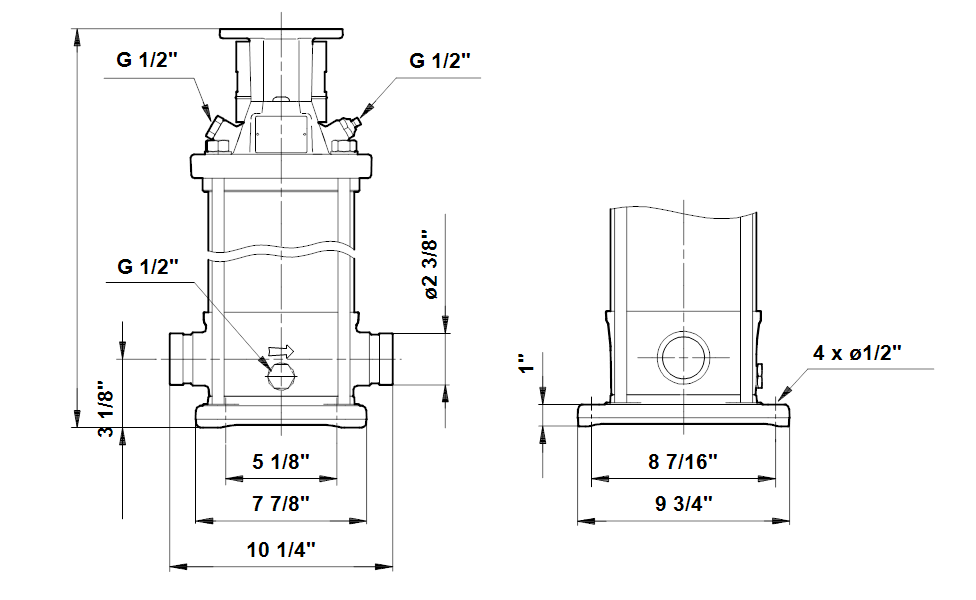

Dimensional Drawing
