Grundfos 97740568 - CRN 45-2 H-G50-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $5,315.33
GRUNDFOSSKU: 97740568

Price:
Sale price$7,103.67 Regular price$12,419.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97740568 - CRN 45-2 H-G50-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97740568 - CRN 45-2 H-G50-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure and transferring fluids in demanding environments.

With its robust construction and advanced design, the CRN 45-2 model ensures optimal flow rates and energy efficiency. This pump is part of the Grundfos Centrifugal Pumps range, which includes both single and multi-stage options, catering to diverse operational needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our selection of Grundfos pumps, including booster, centrifugal, end suction, horizontal multistage, and multi-stage types, to find the perfect solution for your needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G50
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 335.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 237.5 ft
Maximum operating pressure 232.06 psi
Model B
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 175.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 231 US gpm
Rated head 182.4 ft
Rubber E
Sales region USA
Shaft Product name:CRN 45-2 H-G50-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

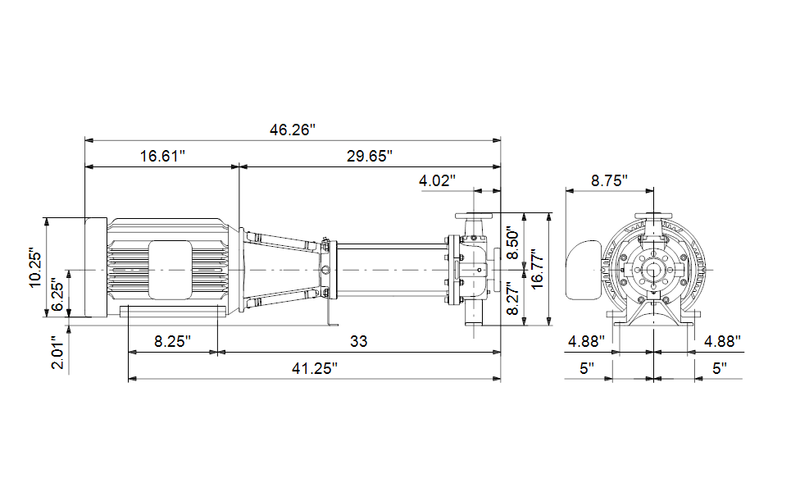

Dimensional Drawing
