Grundfos 97740434 - CRN 32-5 H-GC-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $7,253.74
GRUNDFOSSKU: 97740434

Price:
Sale price$9,694.26 Regular price$16,948.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97740434 - CRN 32-5 H-GC-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97740434 - CRN 32-5 H-GC-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN 32-5 H-GC-A-E-HQQE model is ideal for boosting pressure and transporting fluids in various systems. This pump is part of the Grundfos Centrifugal Pumps range, which includes both single and multi-stage options, ensuring versatility for your specific needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97740434. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code GC
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 270.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 448.2 ft
Maximum operating pressure 232.06 psi
Model B
Motor 254TC
Motor standard NEMA
n rpm 3497rpm
Net weight 170.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 136 US gpm
Rated head 367.5 ft
Rubber E
Sales region USA
Shaft Product name:CRN 32-5 H-GC-A-E-HQQE
Shaft seal HQQE
Stages 5
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

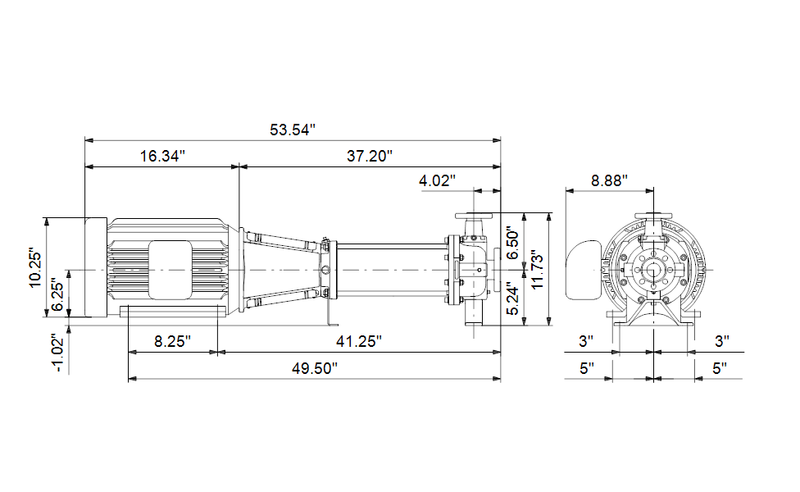

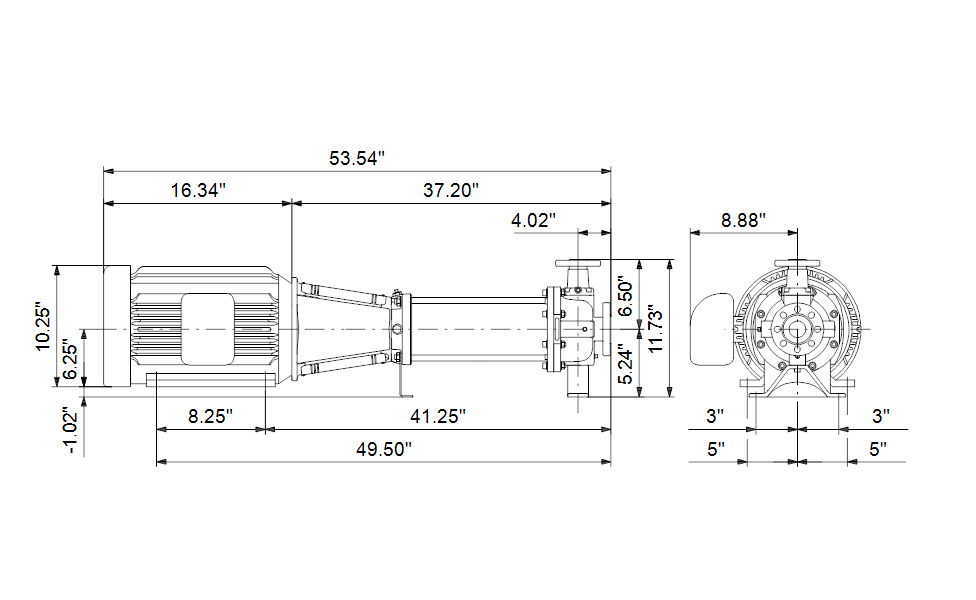

Dimensional Drawing
