Grundfos 97739387 - CRN 15-9 H-G22-A-V-HQQV | Vertical | Multistage | Centrifugal

GrundfosSKU: 97739387

Price:
Sale price$11,257.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 97739387 - CRN 15-9 H-G22-A-V-HQQV | Vertical | Multistage | Centrifugal · Genuine Grundfos Part
CRN SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 97739387 is a genuine Grundfos spare part, repair kit, or accessory compatible with the CRN series (Inline multi stage pumps). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — CRN
Vertical, multistage centrifugal pump with suction and discharge ports on the same level. All wetted parts in stainless steel EN 1.4401 (316). Used in food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided.
Inline multi stage pumps
Part Details
Part Number 97739387
Compatible Series Grundfos CRN
Product Category Inline multi stage pumps
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos CRN pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — CRN Series
✓ Spare Parts List — CRN Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G22
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 271.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 573.5 ft
Maximum operating pressure 362.59 psi
Model A
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 150.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 79.3 US gpm
Rated head 485.3 ft
Rubber V
Sales region USA
Shaft Product name:CRN 15-9 H-G22-A-V-HQQV
Shaft seal HQQV
Stages 9
Standard NEMA
Version H

Motor Curves

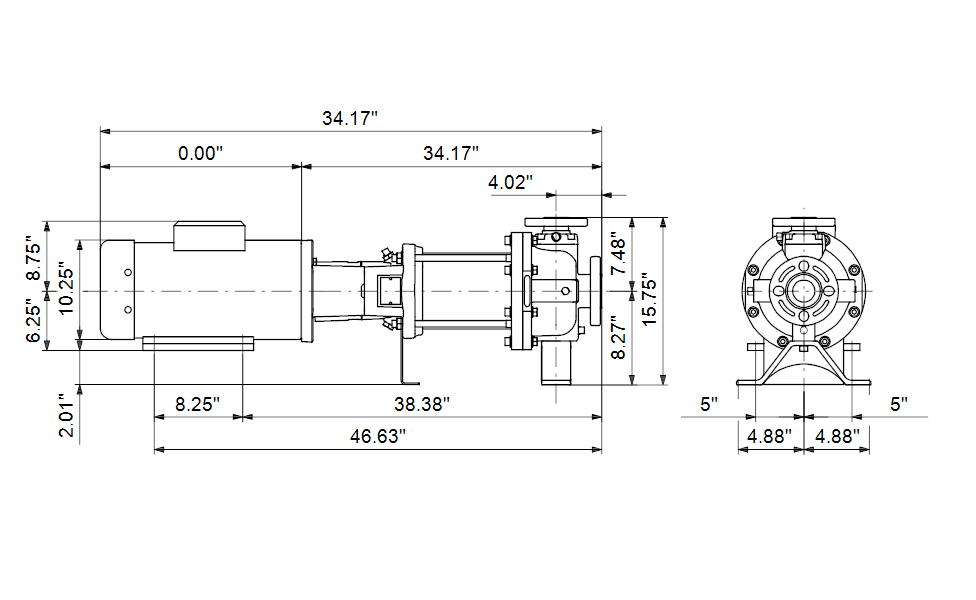

Dimensional Drawing
