Grundfos 86680017 - BALDOR 213TC

Save $1,963.74
GRUNDFOSSKU: 86680017

Price:
Sale price$2,305.26 Regular price$4,269.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 86680017 - BALDOR 213TC is a replacement single-phase AC motor for standard pump installations, suited for technicians and maintenance teams needing a direct motor swap.

Key features

  • Single-phase AC standard motor for common pump applications
  • Suitable for pump motor replacement and frontend configuration workflows
  • Provides a straightforward, serviceable option to restore pump performance

Applications

Ideal for general pump repair, HVAC circulation pumps, water transfer systems, and light industrial equipment where a standard single-phase replacement motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 86680017

EAN 5700394568234
Built-in motor protection NONE
Colour/Type NCS 9000 gloss 40+-10
Cooling TEFC
Flange size for motor 213TC
Insulation class (IEC 85) F
Mains frequency 60 Hz
Material Pricing Group 3Z
Motor 213TC
Motor standard NEMA
Motor type BALDOR
Net weight 135.0 lb
Number of poles 4
Rated current /- A
Rated power - P2 5.5 kW
Rated speed 1725 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Tropic protec no
Type NCS 9000 gloss 40+-10

Motor Curves

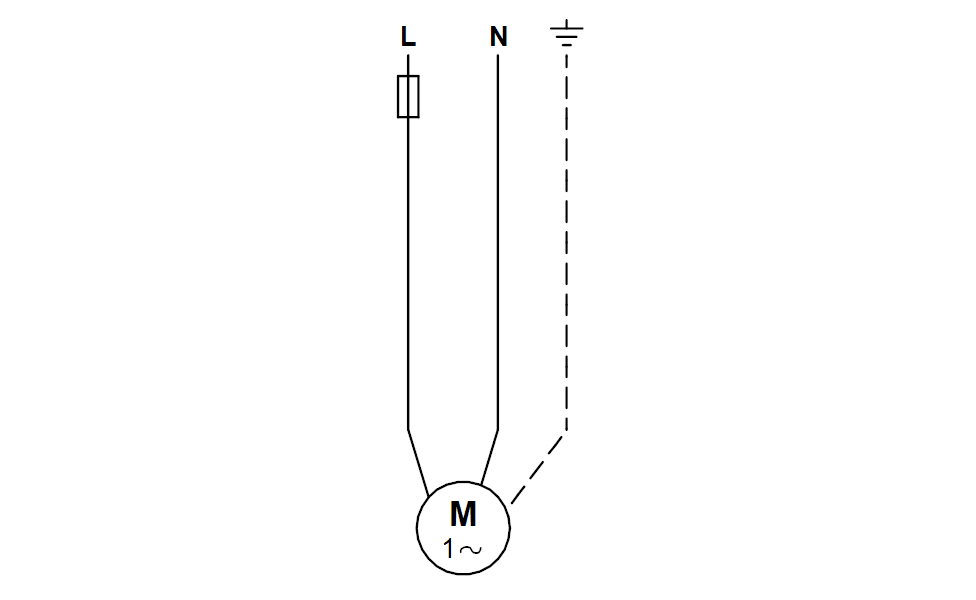

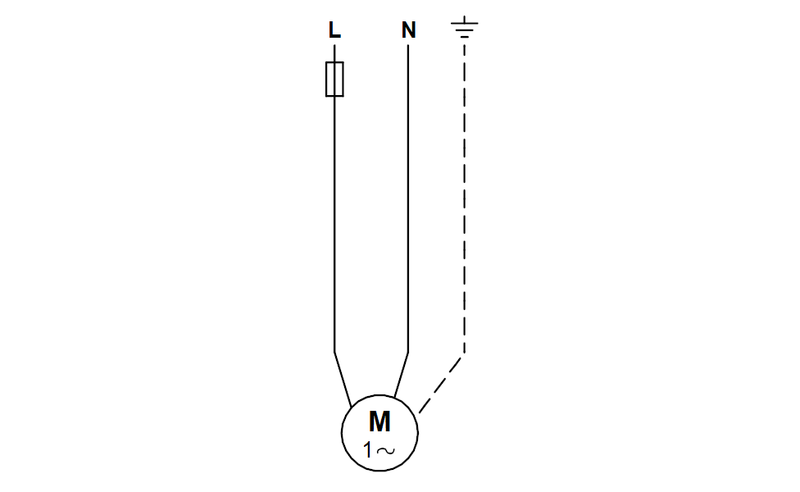

DWiring Diagram
