Grundfos 96937300 - MMS 10000 | Submersible Motor | High Efficiency

GrundfosSKU: 96937300

Price:
Sale price$54,670.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 96937300 - MMS 10000 | Submersible Motor | High Eff · ACC
ACCSubmersible

The Grundfos 96937300 is a genuine Grundfos Motor — MMS 10000 | Submersible Motor | High Efficiency. Overview Grundfos 96937300 - MMS 10000 is a submersible motor designed for large submersible pump installations and service professionals. The MMS 10000 motor suits applications requiring durable, rewindable 3-phase motors with wet-wound construction. Key features 3-phase wet-wound, rewindable motor construction for field serviceability Sand shield

Series
ACC
Model
96937300
Manufacturer
Grundfos
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Model Code Decoded
Model code decoded — series, size, stages, seal, connection, motor variant
Industrial Grade
Built and tested to IEC, NEMA, and NSF standards
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Parts and Accessories

Genuine Grundfos replacement parts and accessories are manufactured to the same specifications as the original components — ensuring correct fit, correct function, and maintenance of original pump performance.

OEM Quality — Maintains Warranty Coverage

Using genuine Grundfos replacement parts maintains pump warranty coverage where applicable. Third-party parts may void warranty coverage and can cause performance changes and premature failure.

Compatibility Confirmed

Grundfos accessories and replacement parts are tested for compatibility with specific Grundfos pump models. Part numbers are model-specific — always verify using your pump's model number and serial number.

PumpStop Expert Support

Not sure if this is the right part for your pump? Contact PumpStop with your pump model number and serial number — our team will confirm compatibility before you order.

Model Code Decoded — 96937300
Series: ACC
Technical Specifications
Model Number 96937300
Product Series ACC
Orientation Submersible
Important Notices
Electrical Requires correctly rated supply — . Install with correctly rated circuit protection and motor starter.
Temperature limits Do not exceed max fluid temperature (see spec sheet) or max ambient temperature (see spec sheet). Operating outside limits damages seals and motor insulation.
Dry running Do not run dry. Grundfos CR/CRN/MTR pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, maintenance intervals, and spare part numbers. Manuals available from Grundfos or PumpStop.
Available Documentation
✓ Installation and Operating Manual (IOM) — ACC
✓ Product Data Sheet — 96937300
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency are correct for your installation. For sizing, compatibility, or spare part guidance, chat or call (781) 281-8905.
EAN 5700314105600
Applications Motors
Axial load max 5000 kg
Breakdown torque 260-290-310 %
Built-in temp. transmitter no
Diameter 10 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 170-180-200 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 3.749 lb ft²
Motor Cast iron
Motor diameter 10 inch
Motor efficiency at 1/2 load 86-85 %
Motor efficiency at 3/4 load 88-87 %
Motor efficiency at full load 1 0.88
Motor type MMS10000
Motor version T45
Net weight 959.0 lb
Power factor 1 0.87-0.84-0.81
Product family MMS 10000
Rated current 275-270-270 A
Rated full-load torque 1 306.1 ft lb
Rated power - P2 132 kW
Rated speed 2900-2910-2920 rpm
Rated voltage 3 x 440-460-480 V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 530-570-590 %
Type MMS10000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.052 ohm
Windings PE2/PA

Motor Curves

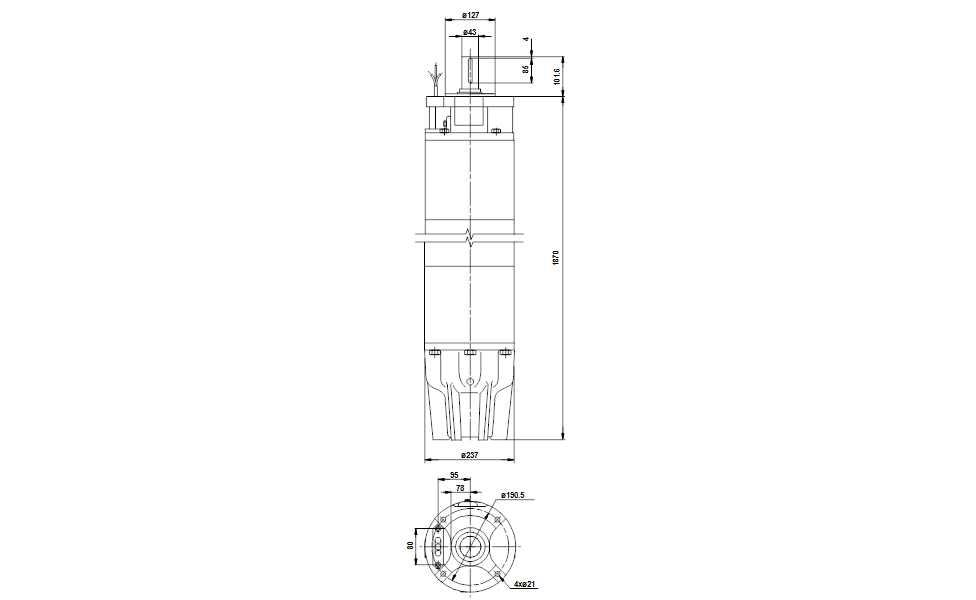

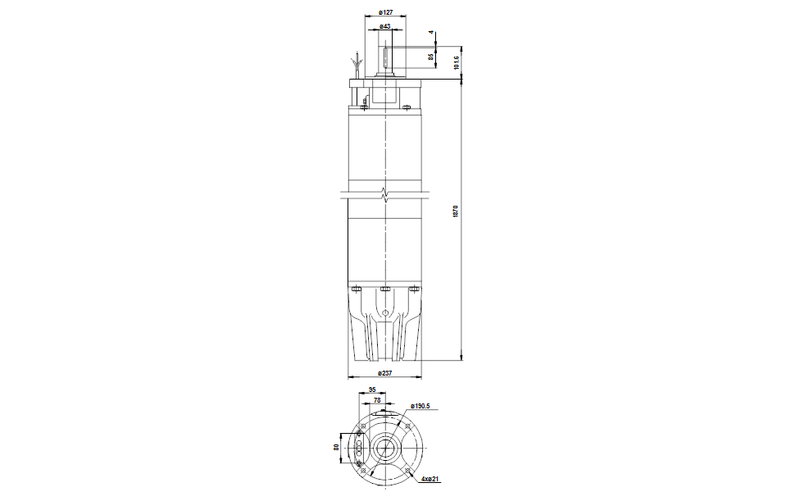

Dimensional Drawing

DWiring Diagram
