Grundfos 96090994 - Auto Coupling Set

GRUNDFOSSKU: 96090994

Price:
Sale price$1,195.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

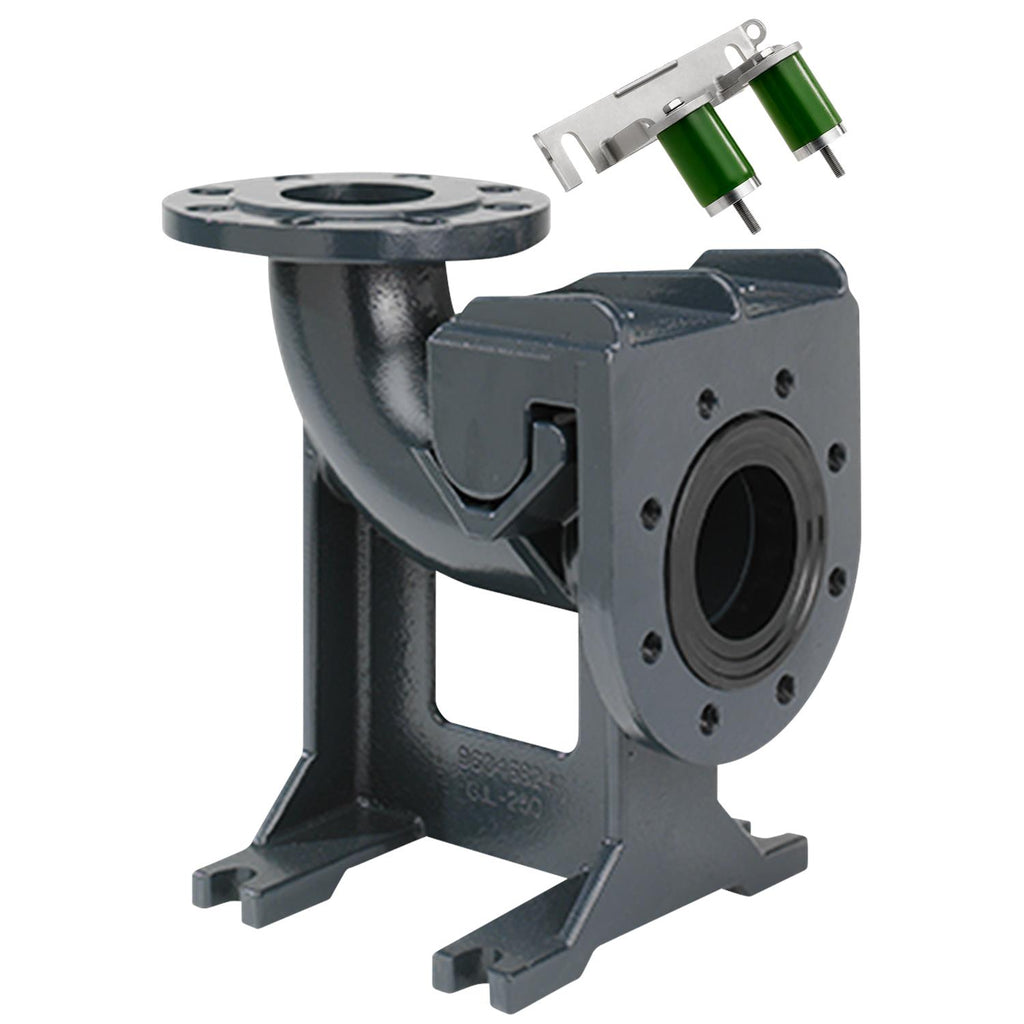

Auto coupling set | This accessory is used for submersed installation of Grundfos wastewater pumps. This set consists of: Baseplate
Guide claw*
Upper guide rail holder (Guide rails are not included)
Bolts and gasket for mounting the guide claw to the pump, when needed.

EAN 5700395878233
Applications Accessories
Connection DN 100
Fits to following products SE/SL/S
Flange standard DIN EN 1092-1
Gasket Rubber
Gross weight 137.0 lb
Material Cast iron
Material Pricing Group 91
Maximum operating pressure 10 bar
Net weight 109.0 lb
Number of gaskets 1
Number of screws 8
Product family Pumps accessories
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size of inlet connection DN 100
Size of outlet connection DN 100
Standard DIN EN 1092-1
Surface treatment Epoxy coated
Type of inlet connection DIN
Type of outlet connection DIN
Danish VVS No. 391299716
Finnish LVI No. 4836166

Motor Curves

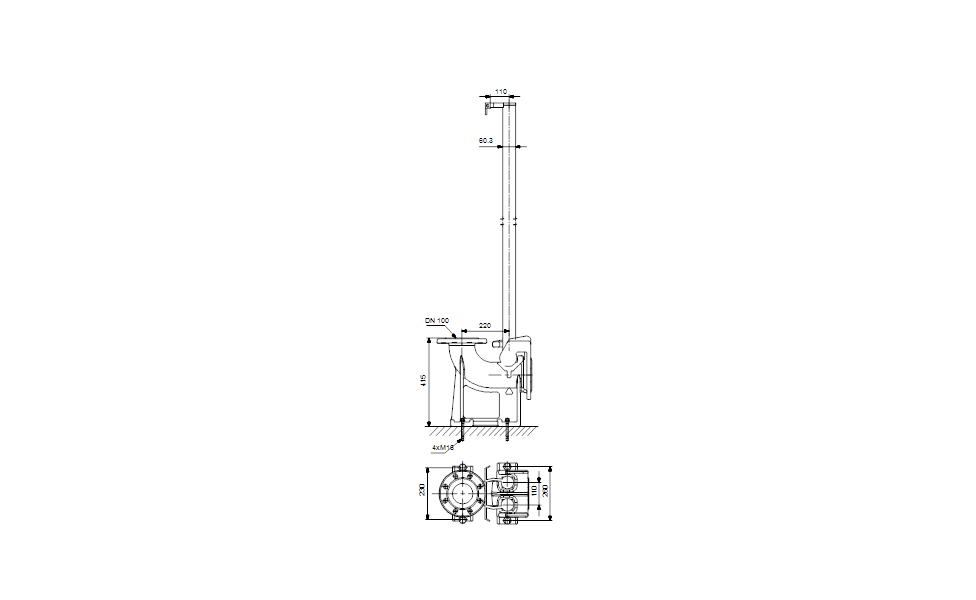

Dimensional Drawing
