Baldor CHC144A - .25 HP, 1725RPM, 1 Phase, 60HZ, 48Z, 3411C, Teao, F1 60HZ Single Phase 25 HP 3411°C

Save $228.40
BaldorSKU: CHC144A

Price:
Sale price$342.60 Regular price$571.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

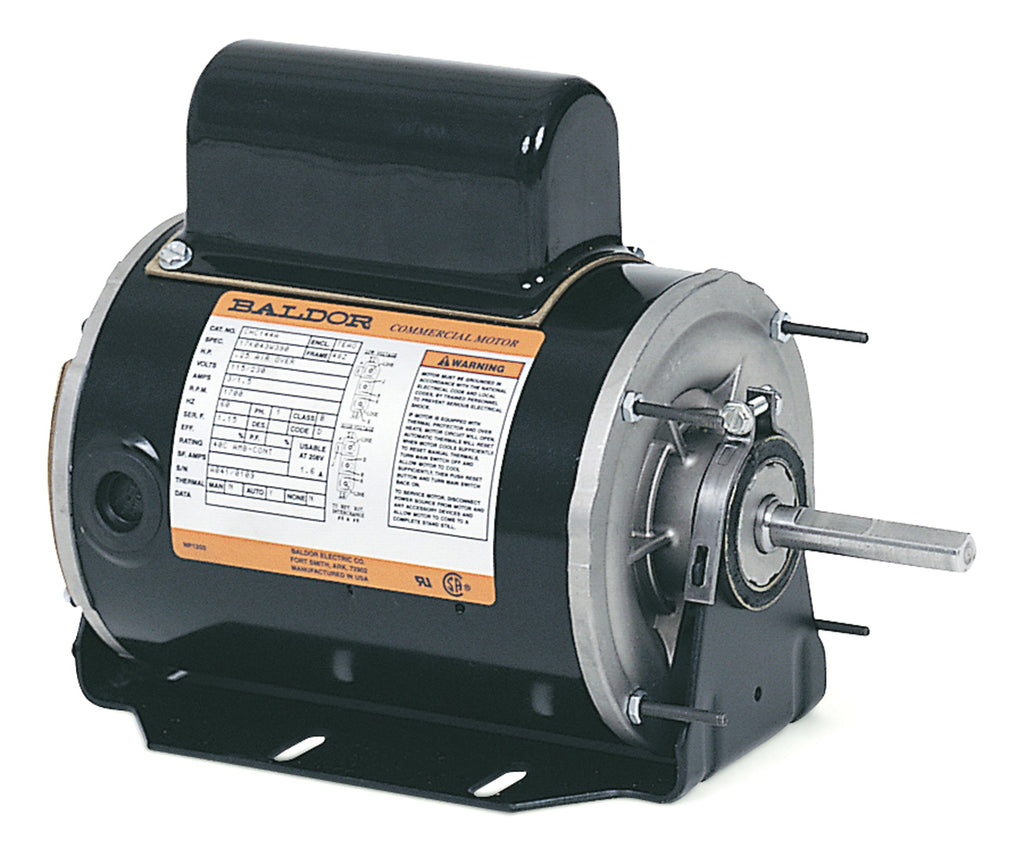

Baldor CHC144A Direct Drive Fan Motor

Upgrade your equipment with the Baldor CHC144A, a high-performance direct drive fan motor designed for reliability and efficiency. This motor features a power output of .25 HP and operates at 1725 RPM, making it ideal for various applications requiring consistent airflow and performance.

Key specifications include:

  • Phase: 1 Phase
  • Frequency: 60HZ
  • Frame Size: 48Z
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Service Factor: 1.0
  • Product Code: CHC144A

This Baldor-Reliance motor is perfect for applications that require a durable and efficient solution. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs. If you have questions or need assistance in locating the correct pump, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item for your application.

UPC 781568408858
Supplier Part Number CHC144A
Category AC Motors
Subcategory Direct Drive Fan Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 21.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CHC144A
Current @ Voltage 1.400 A @ 230.0 V, 1.500 A @ 208.0 V, 2.800 A @ 115.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 48Z
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.4 a
Insulation Class B
Inverter Code Not Inverter
KVA Code F
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Lead Termination None
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3411C
Mounting Arrangement F1
Number of Poles 4
Output 0.250 hp
Output @ Frequency .250 HP @ 60 HZ
Overall Length 11.35 IN
Phase 1
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location WG
Winding Thermal 2 None
