Grundfos 98190356 - SPackage 2-23/11 A-W-A-AUUV | Submersible | Borehole | Vertical | High Head

Save $1,547.49
GRUNDFOSSKU: 98190356

Price:
Sale price$2,163.51 Regular price$3,711.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

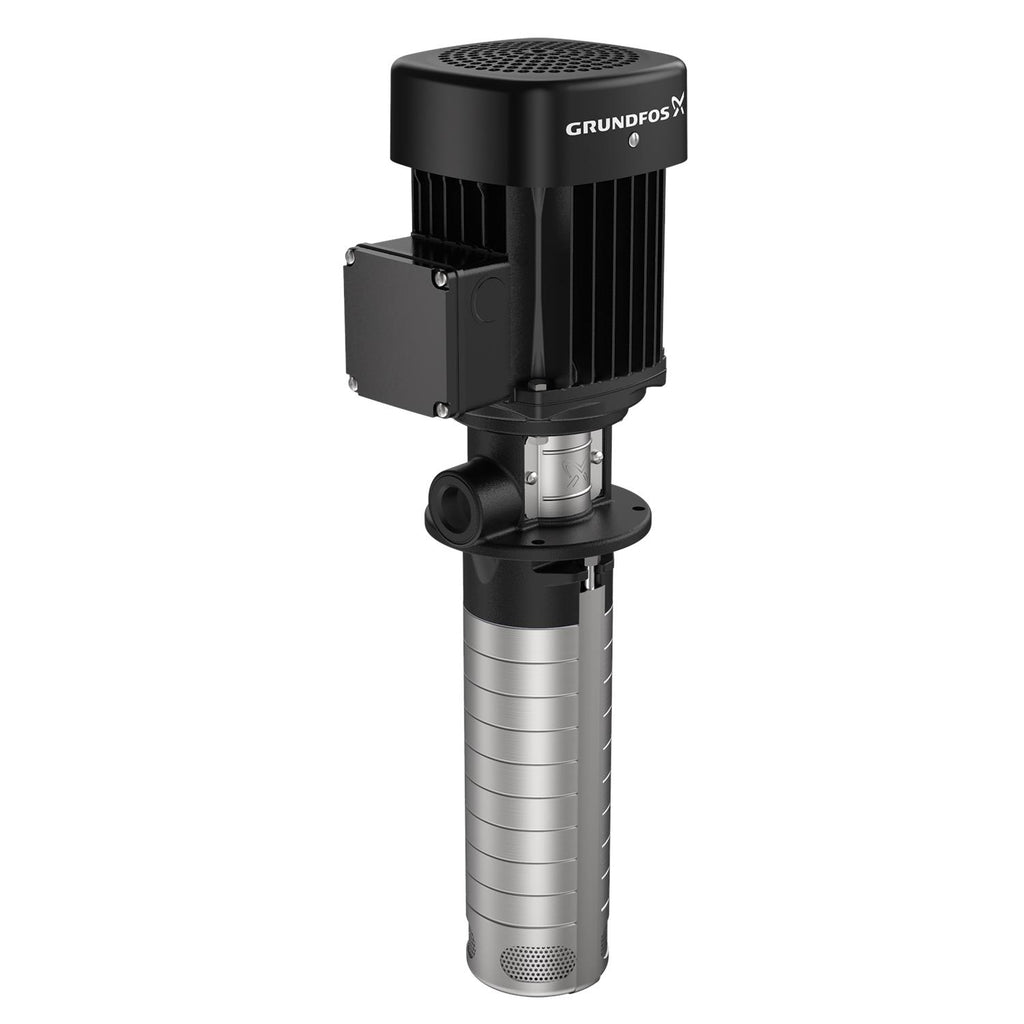

Grundfos 98190356 - SPK 2-23/11 A-W-A-AUUV Submersible Pump

The Grundfos 98190356 - SPK 2-23/11 A-W-A-AUUV is a high-performance submersible pump designed for various industrial applications. This vertical, multi-stage pump is engineered to deliver exceptional efficiency and reliability, making it an ideal choice for borehole installations.

As a trusted manufacturer, Grundfos ensures that this pump meets the highest standards of quality and performance. Whether you need it for water supply, irrigation, or other demanding applications, the SPK series is built to handle the task with ease.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals WEEE
Approvals for motor CE,CC
Built-in motor protection NONE
Code for shaft seal AUUV
Connect code W
Connection G 3/4
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Environmental approvals WEEE
Flange size for motor FT100
Frequency 60 Hz
Frequency converter NONE
Gross weight 38.6 lb
Housing Cast iron
I MAX -/-A
Impeller Stainless steel
Impellers 11
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
KVA code J
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum current consumption -/- A
Minimum ambient temperature -22°F
Model E
Motor FT100
Motor efficiency at 1/2 load 84.5-83.0 %
Motor efficiency at 3/4 load 84.4-84.6 %
Motor efficiency at full load 1 77.0-77.0 %
Motor type 80AA
n rpm F
Net weight 35.7 lb
Number of poles 2
P2 kW 1 HP
Phase 3
Pipe connection G 3/4
Power factor 1 0.86-0.77
Pump housing Cast iron
Pump speed on which pump data are based 3420 rpm
Pump version A
Range of ambient temperature -22 .. 140 °F
Rated current 2,95-2,75/1,70-1,60 A
Rated flow 11.9 US gpm
Rated head 144.4 ft
Rated power - P2 1 HP
Rated speed 3410-3470 rpm
Rated voltage 3 x 220-255D/380-440Y V
Shaft Product name:SPK 2-23/11 A-W-A-AUUV
Shaft seal AUUV
Stages 23
Starting current 600-740 %
Thermal protec external
Type 80AA
Version A

Motor Curves

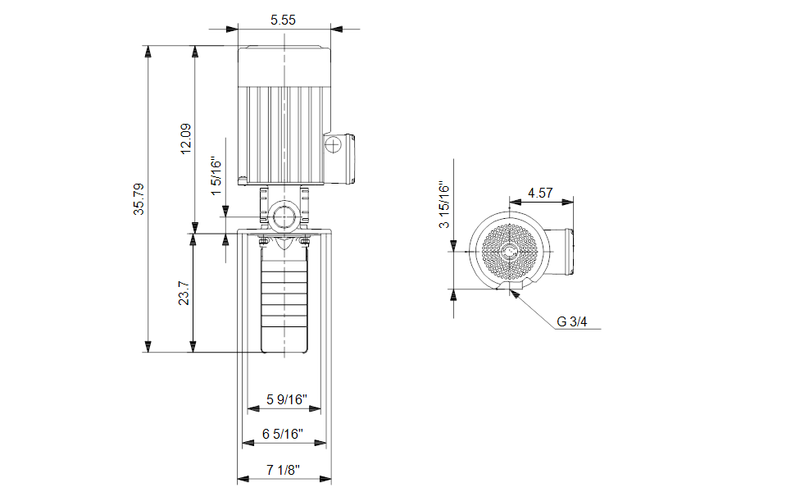

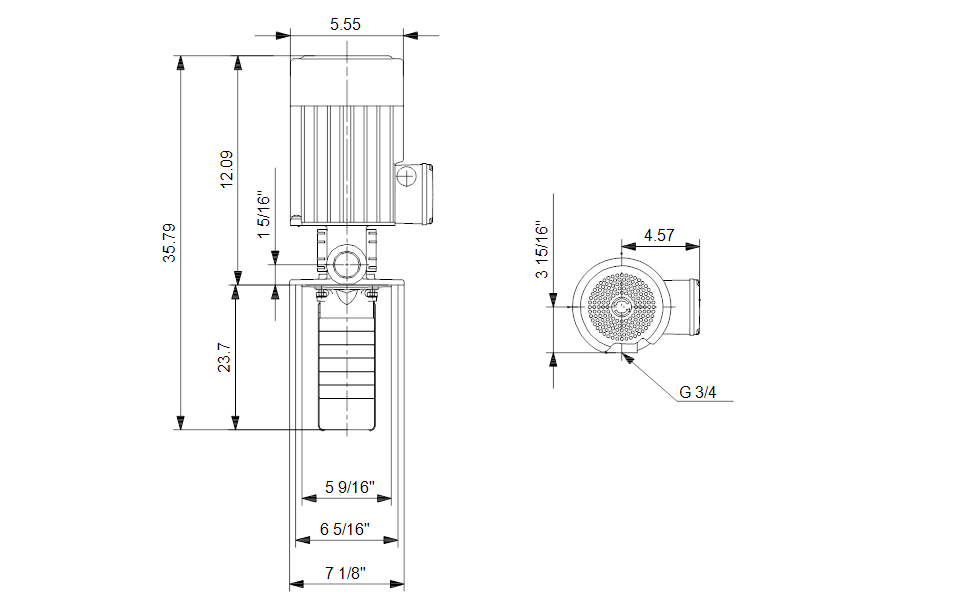

Dimensional Drawing
