Grundfos 96429626 - MTR 32-2/2-1 A-G-A-HUUV | Vertical | Immersible | Multistage

Save $3,605.38
GRUNDFOSSKU: 96429626

Price:
Sale price$5,040.62 Regular price$8,646.00
Build to order – stocked components, typically available in 16 business days
or Call for most up to date lead times. (781) 281-8905

Description

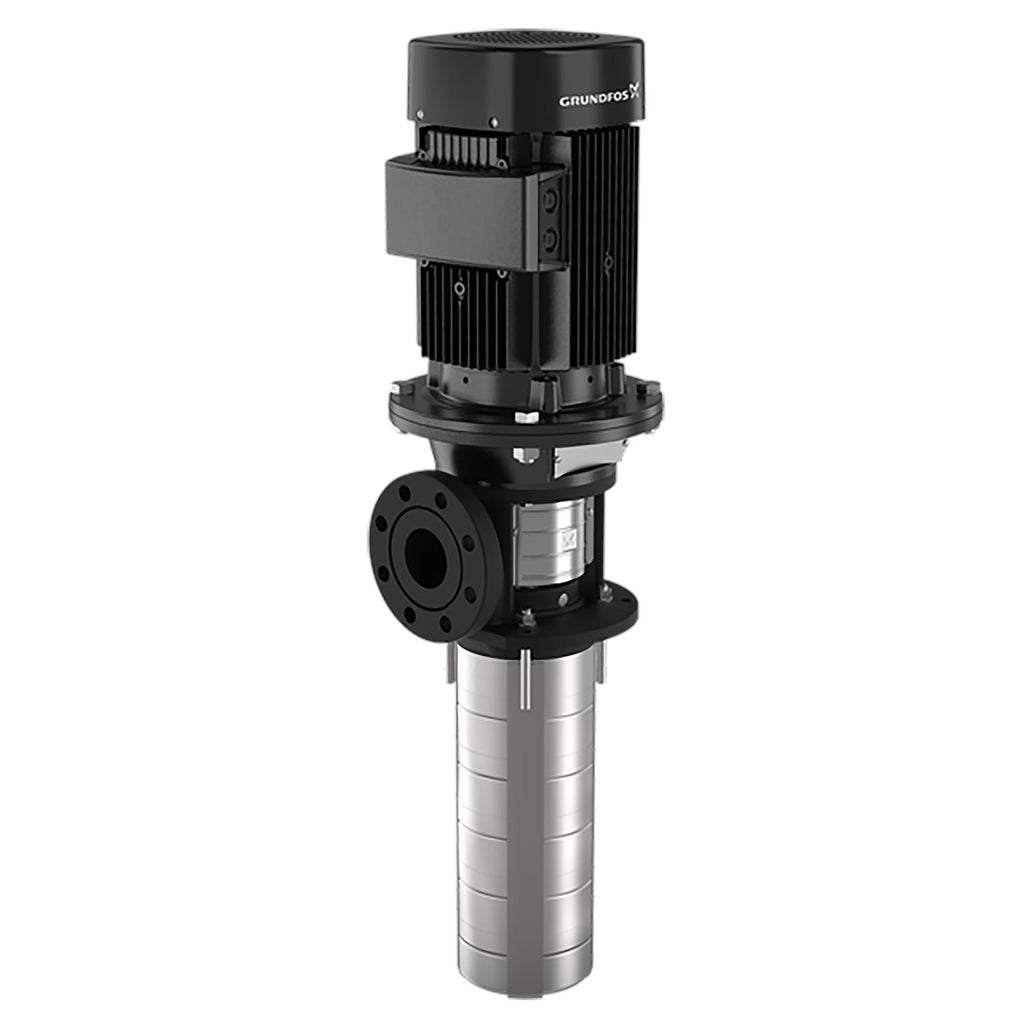

Grundfos 96429626 - MTR 32-2/2-1 A-G-A-HUUV

The Grundfos 96429626 - MTR 32-2/2-1 A-G-A-HUUV is a high-performance vertical multistage pump designed for a variety of industrial applications. Manufactured by Grundfos, this immersible pump is engineered to deliver reliable and efficient performance, making it an ideal choice for those seeking quality and durability in their pumping solutions.

As a part of the Grundfos Controls & Accessories line, this pump is suitable for tank-mounted installations and is categorized under centrifugal, immersed, and vertical multistage pumps. Its robust design ensures optimal operation in demanding environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 96429626. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals CE,EAC,UKCA,RCM,cURus/cCSAus,Morocco
Approvals for motor CE,CC
Built-in motor protection PTC
Chambers 2
Code for shaft seal HUUV
Connect code G
Connection ANSI
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 213TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 232.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:MTR 32-2/2-1 A-G-A-HUUV
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 8.78 in
Impeller Stainless steel
Impellers 1
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor 213TC
Motor efficiency at 1/2 load 87.5-88.0 %
Motor efficiency at 3/4 load 89.0-89.5 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard NEMA
Motor type 132DA
n rpm F
Net weight 192.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
P2 kW 7.5 HP
Phase 3
Power factor 1 0.89-0.84
Pump version A
Rated current 20.4-19.4/9.70 A
Rated flow 159 US gpm
Rated head 124.3 ft
Rated power - P2 7.5 HP
Rated speed 3520-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Sales region Namreg
Service factor 1.15
Shaft Product name:MTR 32-2/2-1 A-G-A-HUUV
Shaft seal HUUV
Standard NEMA
Starting current 940-1040 %
Suitable for 5/6 Hz N
Terminal box position 6
Type 132DA
Type of connection ANSI
Version A

Motor Curves

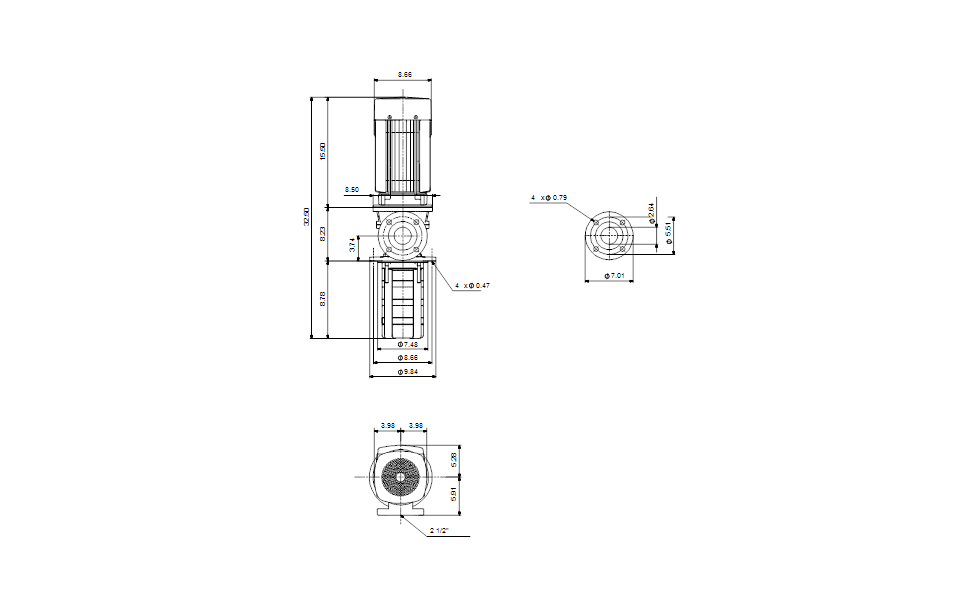

Dimensional Drawing

DWiring Diagram
