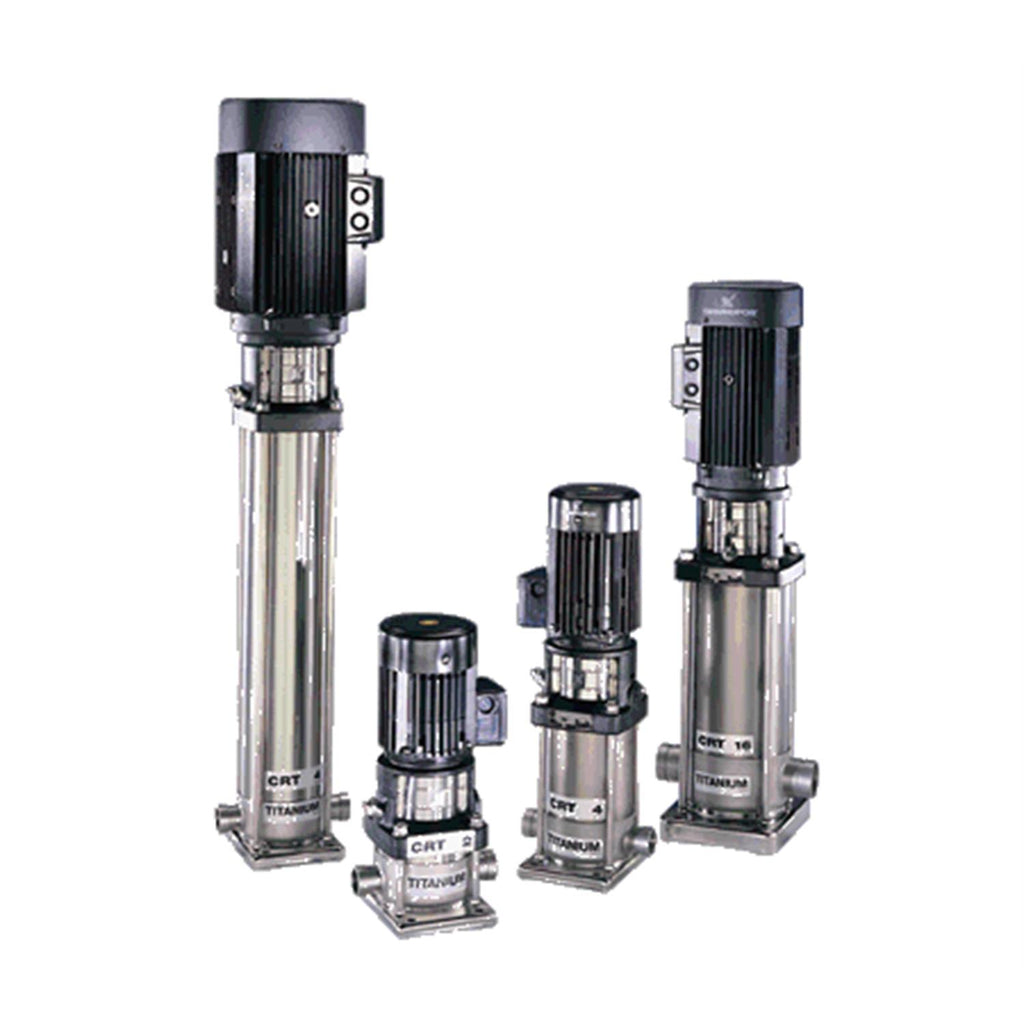

Grundfos 96100973 - CRT 2-15 A-P-A-E-AUUE | Vertical | Multistage | Centrifugal

Save $8,430.72
GRUNDFOSSKU: 96100973

Price:
Sale price$9,133.28 Regular price$17,564.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Introducing the Grundfos 96100973 - CRT 2-15 A-P-A-E-AUUE, a reliable vertical multistage centrifugal pump designed for various industrial applications. Manufactured by Grundfos, this pump is engineered to deliver high performance and efficiency.

Key Features:

  • Vertical multistage design
  • Suitable for high-pressure applications
  • Part of the CR series, known for durability and reliability

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have any questions or need assistance, please don't hesitate to reach out to our team at (781) 281-8905.

When purchasing, please ensure you match the exact model or SKU (96100973). If you are unsure, feel free to call us for guidance.

EAN 5700396154459
Applications Industrial applications
Approvals CE
Code for rubber E
Connect code P
Connection PJE 1 1/4
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 184TC
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 53.9 lb
Head max 669.3 ft
Housing Titanium
Impeller Titanium
Impellers 15
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 184TC
Motor standard NEMA
n rpm 3450rpm
Net weight 37.9 lb
Number of poles 2
Pipe connection PJE 1 1/4
Power (P2) required by pump 5 HP
Primary shaft seal AUUE
Product family CRT 2
Pump 5 HP
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 13.2 US gpm
Rated flow 2 13.2 US gpm
Rated head 451.1 ft
Rated head 2 451.1 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal AUUE
Stages 15
Standard Victaulic
Version A

Motor Curves

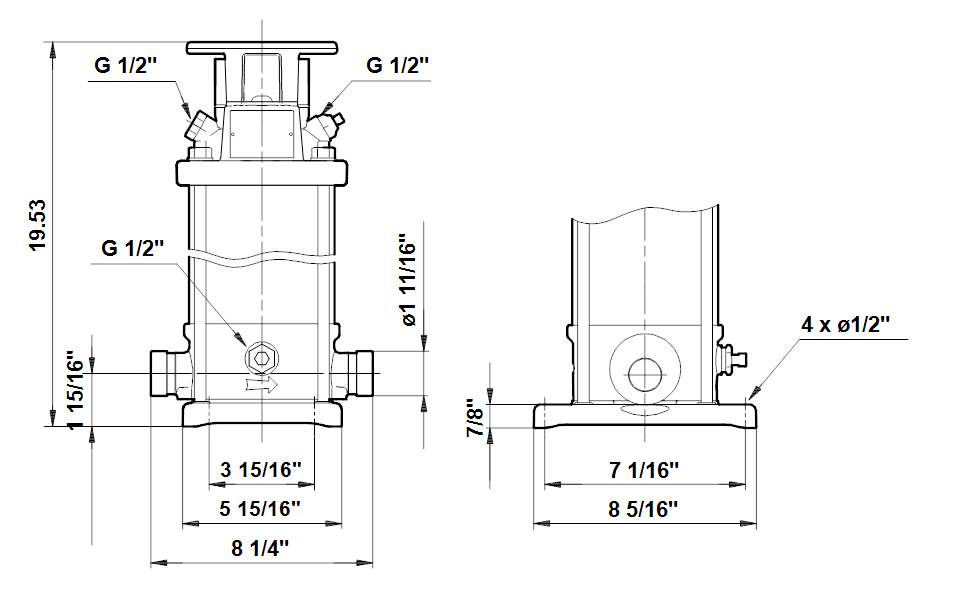

Dimensional Drawing
