Grundfos 92731113 - CRNE 5-24 A-FGJ-H-E-OQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92731113

Price:
Sale price$21,816.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92731113 - CRNE 5-24 A-FGJ-H-E-OQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this stainless steel pump is engineered for durability and efficiency, making it an ideal choice for high-pressure systems.

With its advanced design, the CRNE 5-24 model ensures optimal fluid handling and is suitable for both clean and slightly contaminated liquids. Its versatility allows it to be used in various sectors, including water supply, heating, and cooling systems.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715118791089
Approvals CURUS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal OQQE
Config. file no 99074136
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 266.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 779.9 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 154.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 30.4 US gpm
Rated head 578.1 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 24
Standard NEMA
Type 132E
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

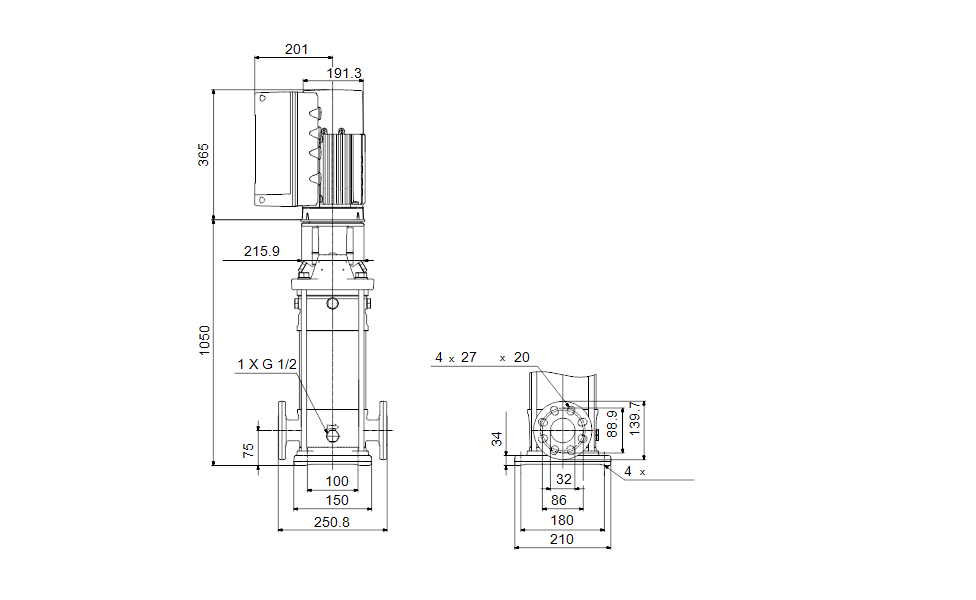

Dimensional Drawing

DWiring Diagram
