Grundfos 92891185 - CRNE 15-2 A-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92891185

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92891185 - CRNE 15-2 A-FGJ-A-E-HQQE Vertical Multistage Inline Pump

The Grundfos 92891185 - CRNE 15-2 A-FGJ-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure systems.

With its stainless steel construction, the CRNE 15-2 offers excellent durability and corrosion resistance, ensuring long-lasting performance in demanding environments. This pump is perfect for applications requiring consistent flow rates and pressure, making it suitable for both commercial and industrial use.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 92891185. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715121123624
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99142774
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FT115
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 108.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 94.16 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor efficiency at full load 1 0.901
Motor standard IEC
Motor type 90LD
Net weight 99.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.93-0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 2899 rpm
Pump version A
Pumped liquid Water
Rated current 4.15-3.40 A
Rated flow 74.8 US gpm
Rated head 72.18 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard IEC
Type 90LD
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

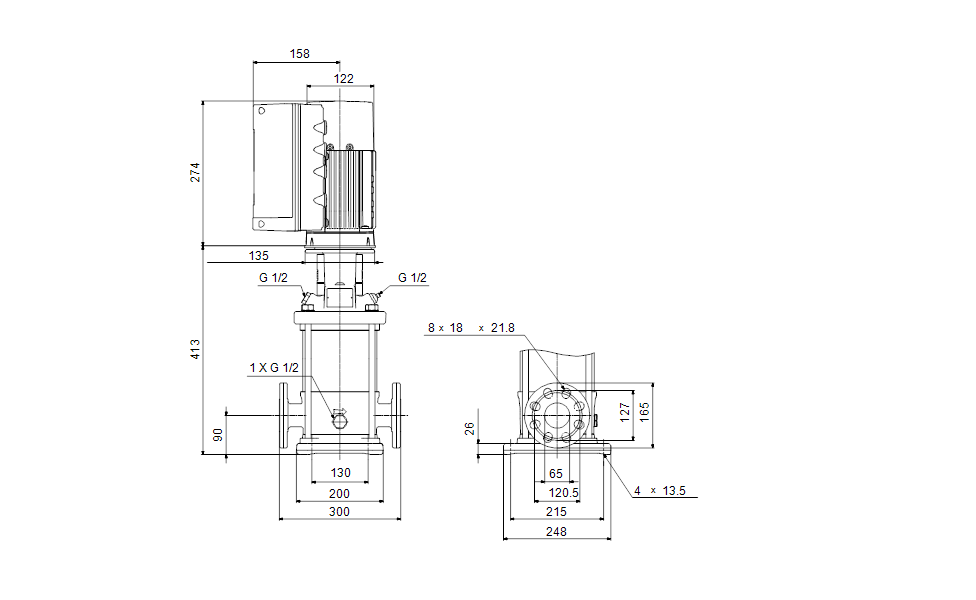

Dimensional Drawing

DWiring Diagram
