Grundfos 99918336 - CRN 64-2 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $9,503.04
GRUNDFOSSKU: 99918336

Price:
Sale price$10,294.96 Regular price$19,798.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

The Grundfos 99918336 - CRN 64-2 A-G-A-E-HQQE is a high-quality vertical multistage centrifugal pump designed for various industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable performance in demanding environments.

Key Features:

  • Vertical multistage design
  • Suitable for high-pressure applications
  • Versatile for various industrial uses

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you are considering this model, please ensure you match the exact model or SKU (99918336). If you have any questions or need assistance, do not hesitate to call us at (781) 281-8905.

For more information on specifications and applications, feel free to reach out to our team.

EAN 5715114132039
Applications Industrial applications
Actual impeller diameter 5.59 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 PN 16
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.59 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.917
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 72/36 A
Gross weight 582.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 91,7%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 290.4 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 284TC
Motor efficiency at 1/2 load 0.91
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3545rpm
Net weight 564.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 25 HP
P2 kW 18.5kW
Phase 3
Power (P2) required by pump 25 HP
Power factor 1 0.88
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 64
Pump 25 HP
Pump housing Stainless steel
Pump inlet 4
Pump outlet 4
Pump version A
Pumped liquid Water
Rated current 57.6/28.8 A
Rated flow 339 US gpm
Rated flow 2 339 US gpm
Rated head 212.6 ft
Rated head 2 212.6 ft
Rated power - P2 25 HP
Rated speed 3545 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Shaft seal HQQE
Stages 2
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

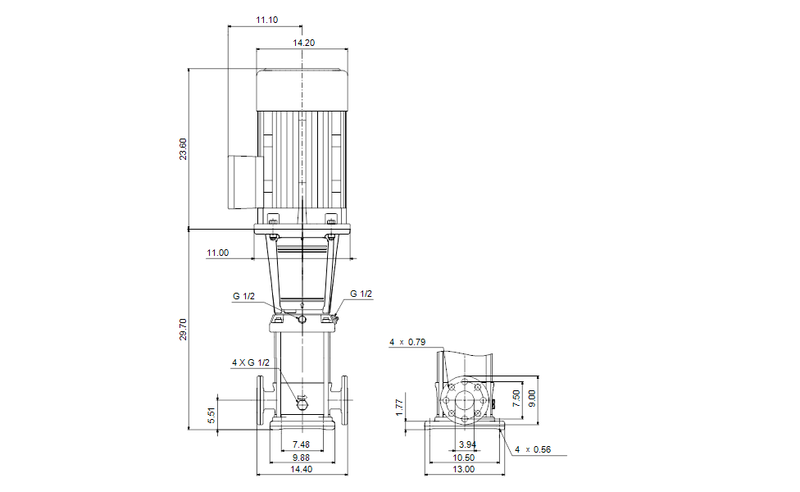

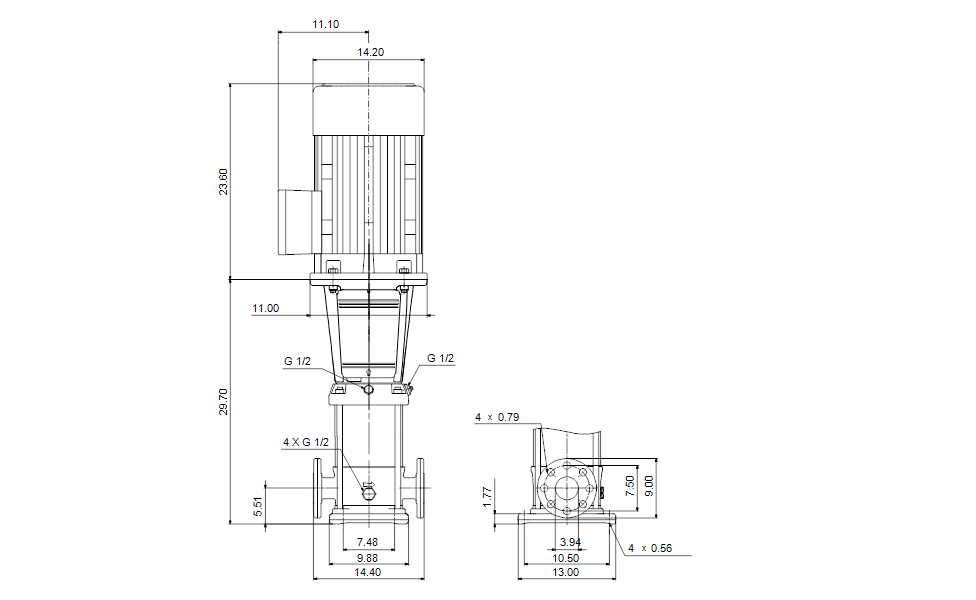

Dimensional Drawing

DWiring Diagram
