Grundfos 92659703 - CRN 5-7 M-CX-A-E | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92659703

Price:
Sale price$15,686.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

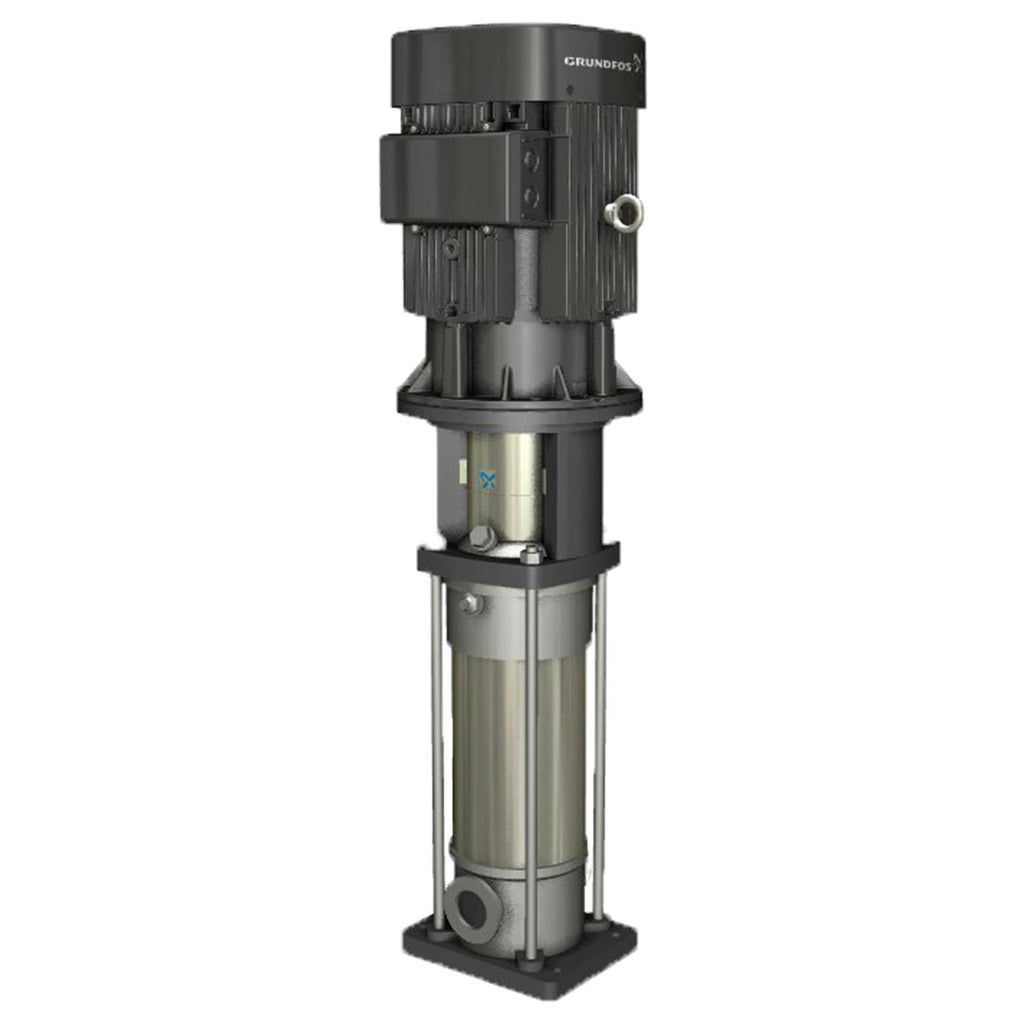

Grundfos 92659703 - CRN 5-7 M-CX-A-E Vertical Multistage Centrifugal Pump

The Grundfos 92659703 - CRN 5-7 M-CX-A-E is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 5-7 M-CX-A-E model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, and it is suitable for both clean and slightly contaminated liquids.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and experience the quality and reliability that Grundfos is known for.

EAN 5715117731505
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter NONE
Gross weight 141.0 lb
IE efficiency IE3 86
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 235.2 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.84
Motor efficiency at 3/4 load 0.865
Motor efficiency at full load 1 0.865
Motor standard NEMA
Motor type WEG
Net weight 127.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3452 rpm
Pump version M
Pumped liquid Water
Rated current 7.34/3.67 A
Rated flow 30.4 US gpm
Rated head 170.3 ft
Rated power - P2 2.2 kW
Rated speed 3515 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 7
Standard NEMA
Starting current 8.8
Type WEG
Type of connection TriClamp
Version M

Motor Curves

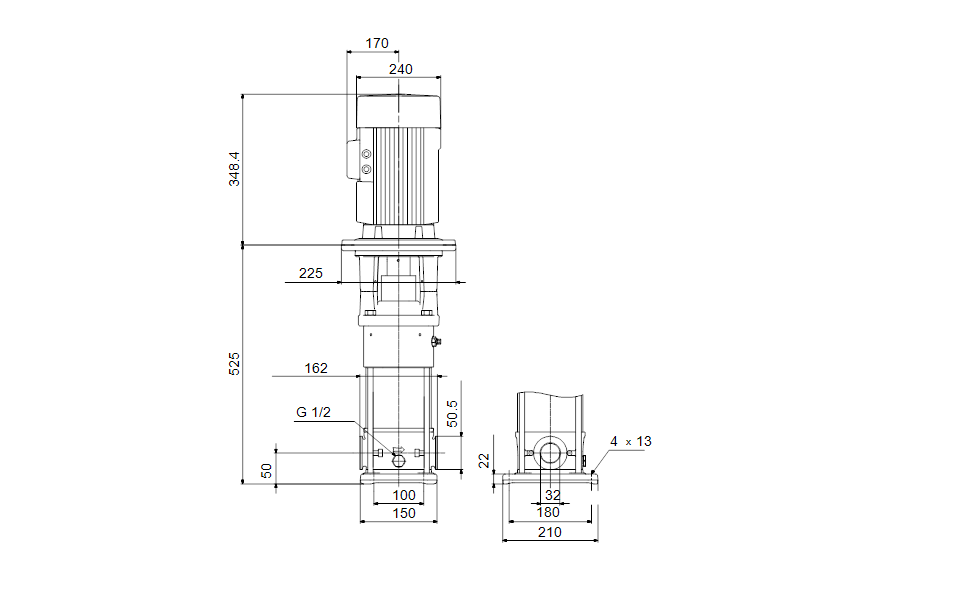

Dimensional Drawing

DWiring Diagram
