Grundfos 92885725 - CRN 45-7 FK-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92885725

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

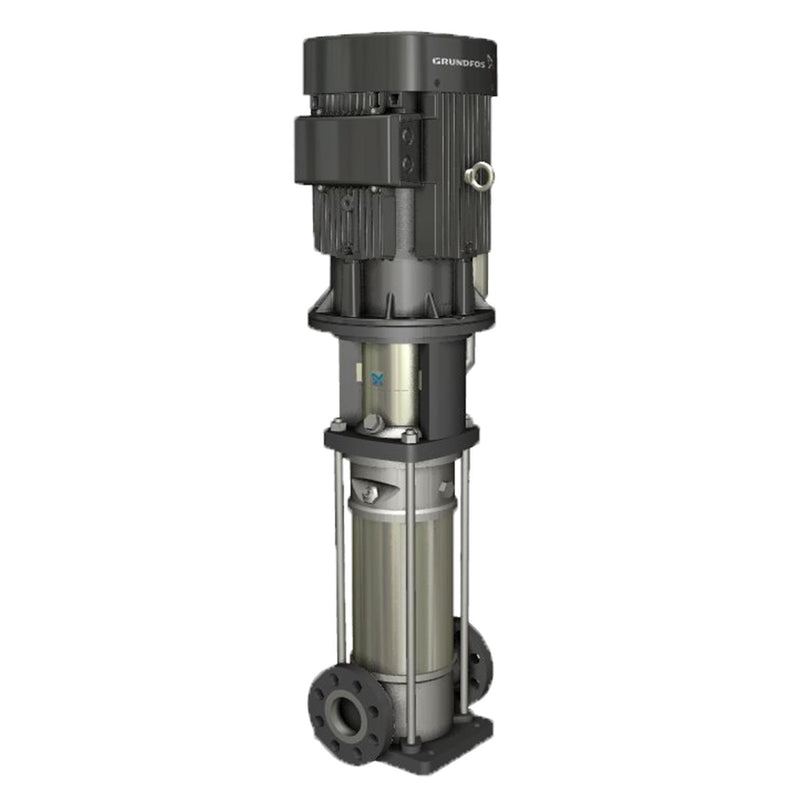

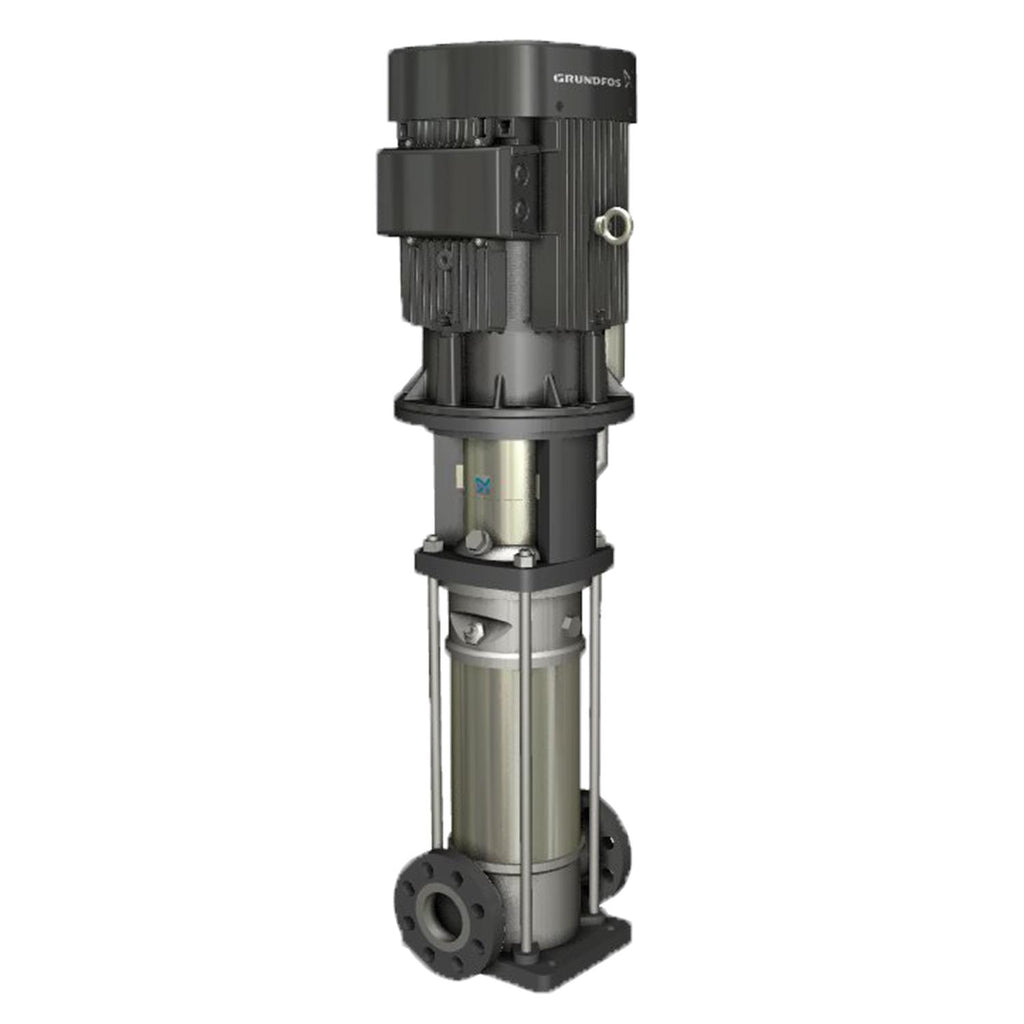

Grundfos 92885725 - CRN 45-7 FK-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92885725 - CRN 45-7 FK-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures reliability and efficiency in demanding environments.

With its robust construction and advanced design, the CRN 45-7 FK-G-A-E-HQQE is ideal for high-pressure applications, making it a perfect choice for those seeking a durable and efficient pumping solution. This pump is part of the renowned Grundfos centrifugal pump range, known for its exceptional performance and longevity.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715121042130
Actual impeller diameter 5.37 in
Approvals CE
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 5.37 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 279.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -40 .. 302 °F
Low NPSH Y
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 302 °F
Maximum head 846.2 ft
Maximum operating pressure 25 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 261.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3550 rpm
Pump version FK
Rated flow 238 US gpm
Rated head 686.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 7
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version FK

Motor Curves

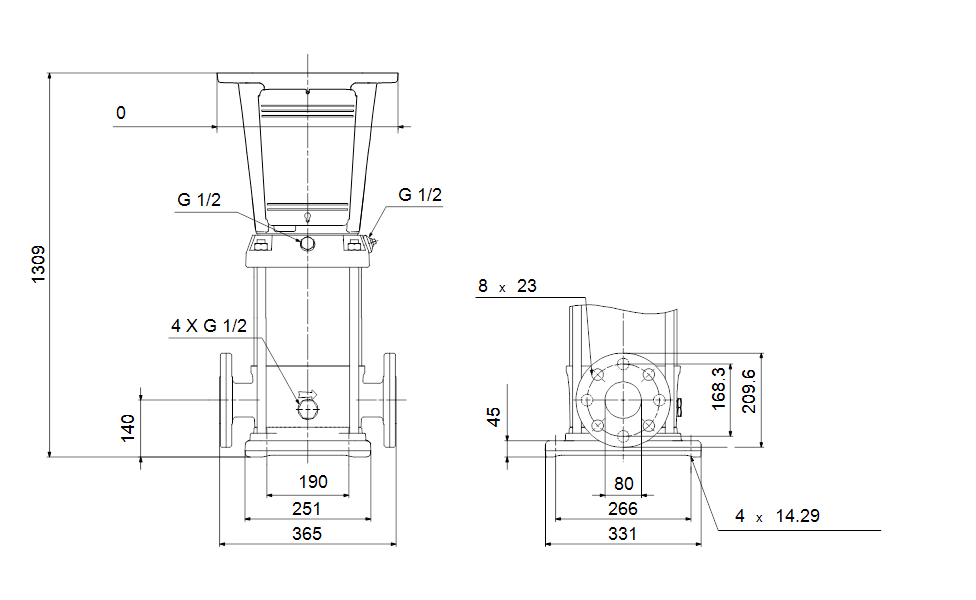

Dimensional Drawing
