Grundfos 97739081 - CRN 45-3 H-G33-A-V-HQQV | Horizontal | End Suction

Save $11,423.32
GRUNDFOSSKU: 97739081

Price:
Sale price$15,266.68 Regular price$26,690.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

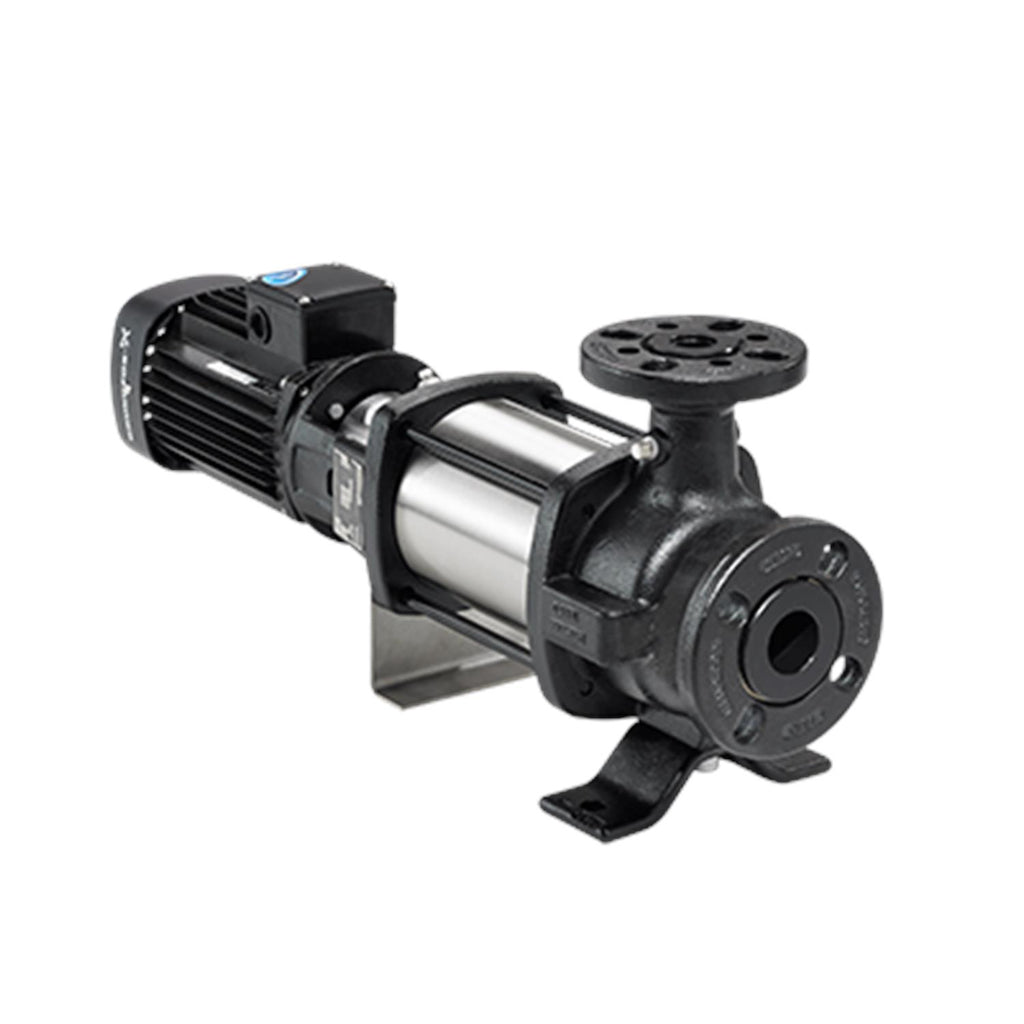

CRN 45-3 H-G33-A-V-HQQV CR-H pumps are horizontal end suction pumps typically mounted on baseplates. The end suction design enables the pump to be installed horizontally in traditional, end suction design piping where the pump has an axial suction port and a radial center line discharge port. This design allows “back pull-out” capability. This means the pump usually can be easily serviced without removing the volute from the pipe system. CR-H pumps can be selected that meet ASME B73. 1 dimensional standards for suction and discharge piping as well as many of the baseplate dimensional standards. CR-H pumps do not fully comply with the ASME B73. 1 specification.

Approvals on nameplate CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G33
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 608.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency IE3 93%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 355 ft
Maximum operating pressure 232.06 psi
Model B
Motor 284TC
Motor efficiency at full load 1 0.93
Motor standard NEMA
Motor type BALDOR
n rpm F
Net weight 447.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 25 HP
Phase 3
Power (P2) required by pump 25 HP
Pressure rating for connection PN 16
Pressure sensor N
Pump 25 HP
Pump version H
Rated current 56/28 A
Rated flow 231 US gpm
Rated head 275.3 ft
Rated power - P2 25 HP
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Rubber V
Sales region USA
Service factor 1.15
Shaft Product name:CRN 45-3 H-G33-A-V-HQQV
Shaft seal HQQV
Stages 3
Standard NEMA
Support bearing Graflon
Type BALDOR
Version H

Motor Curves

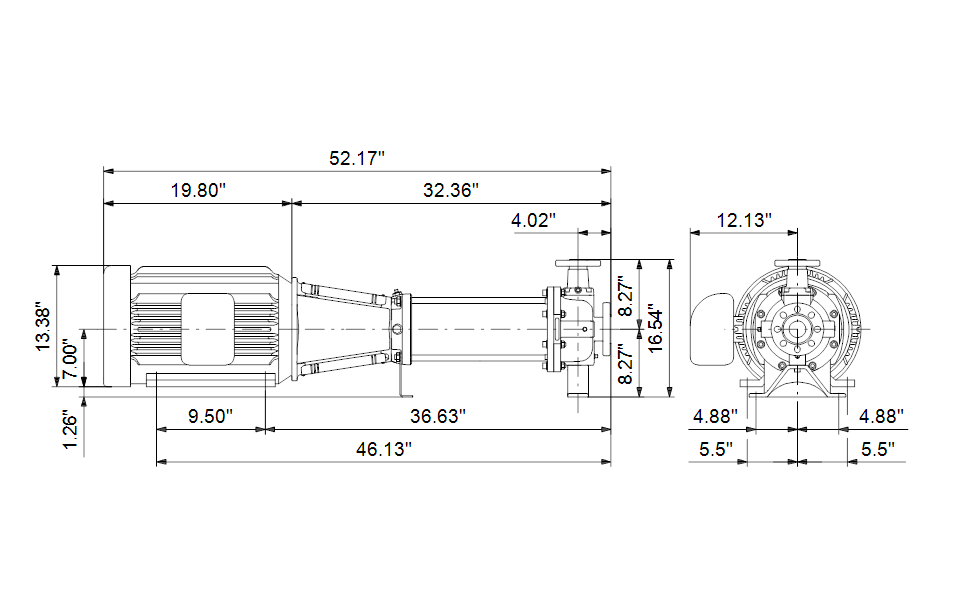

Dimensional Drawing
