Grundfos 96415887 - CRN 45-3-2 | Multistage | SelfPriming | Centrifugal | Vertical

This item ships free!
GRUNDFOSSKU: 96415887

Price:
Sale price$28,372.22
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 45-3-2 Vertical, non-self-priming, multistage, in-line, centrifugal pump for installation in pipe systemsand mounting on a foundation. The pump has the following characteristics: Impellers, intermediate chambers and outersleeve are made ofStainless steel DIN W. -Nr. EN 1. 4401.
Pump head cover and base are made ofStainless steel DIN W. -Nr. EN 1. 4408.
The shaft seal has assembly lengthaccording to DIN 24960.
Power transmission is via cast iron splitcoupling.
Pipework connection is via ANSIflanges/couplings.

EAN 5700390651466
Code for rubber E
Code for shaft seal KUBE
Connect code G
Connection 150 Lb.
Density 62.29 lb/ft³
Flange size for motor 254TSC
Gross weight 219.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code GI
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Model A
Motor 254TSC
Number of reduced-diameter impellers 2
Power (P2) required by pump 15 kW
Pressure rating for connection 150 Lb.
Pump 15 kW
Pump speed on which pump data are based 3525 rpm
Pump version U
Pumped liquid Water
Rated flow 220 US gpm
Rated head 250 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Sales region Namreg
Selected liquid temperature 68 °F
Size of inlet connection 3" inch
Size of outlet connection 3" inch
Stages 3
Type of connection ANSI
Version U

Motor Curves

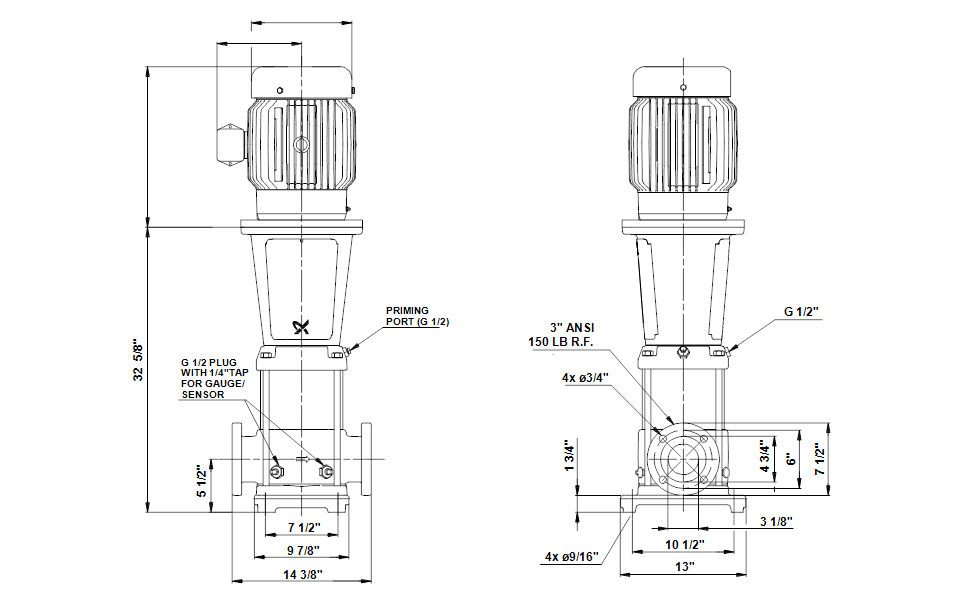

Dimensional Drawing
