Grundfos 92873100 - CRN 45-1 A-F-H-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92873100

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92873100 - CRN 45-1 A-F-H-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92873100 - CRN 45-1 A-F-H-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and efficient fluid transfer.

With its robust construction and advanced design, the CRN 45-1 A-F-H-V-HQQV ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is suitable for various applications, including water supply, irrigation, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120842342
Actual impeller diameter 5.34 in
Approvals EAC
Approvals for drinking water WRAS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 293.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 126.6 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor efficiency at 1/2 load 91.4-89.7 %
Motor efficiency at 3/4 load 90.9-90.7 %
Motor efficiency at full load 1 89.5-90.2 %
Motor standard IEC
Motor type 132EA
Net weight 243.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.90-0.82
Pressure rating for connection PN 40
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3525 rpm
Pump version A
Pumped liquid Water
Rated current 24
Rated flow 238 US gpm
Rated head 92.2 ft
Rated power - P2 7.5 kW
Rated speed 3490-3530 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 1
Standard IEC
Starting current 680-1050 %
Support bearing Graflon
Type 132EA
Type of connection DIN
Version A

Motor Curves

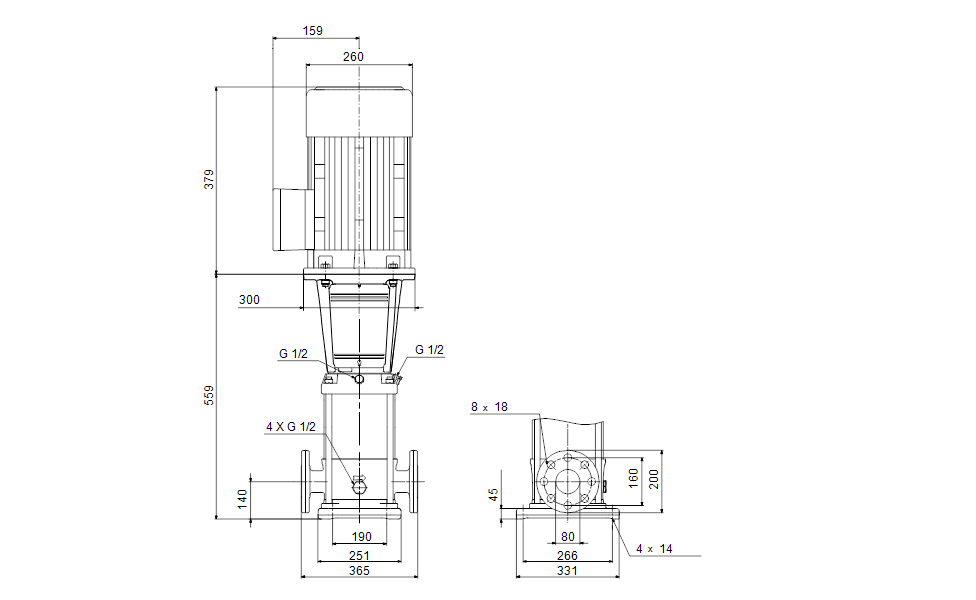

Dimensional Drawing

DWiring Diagram
