Grundfos 92877137 - CRN 32-2-2 B-G-H-K-PQQK | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92877137

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

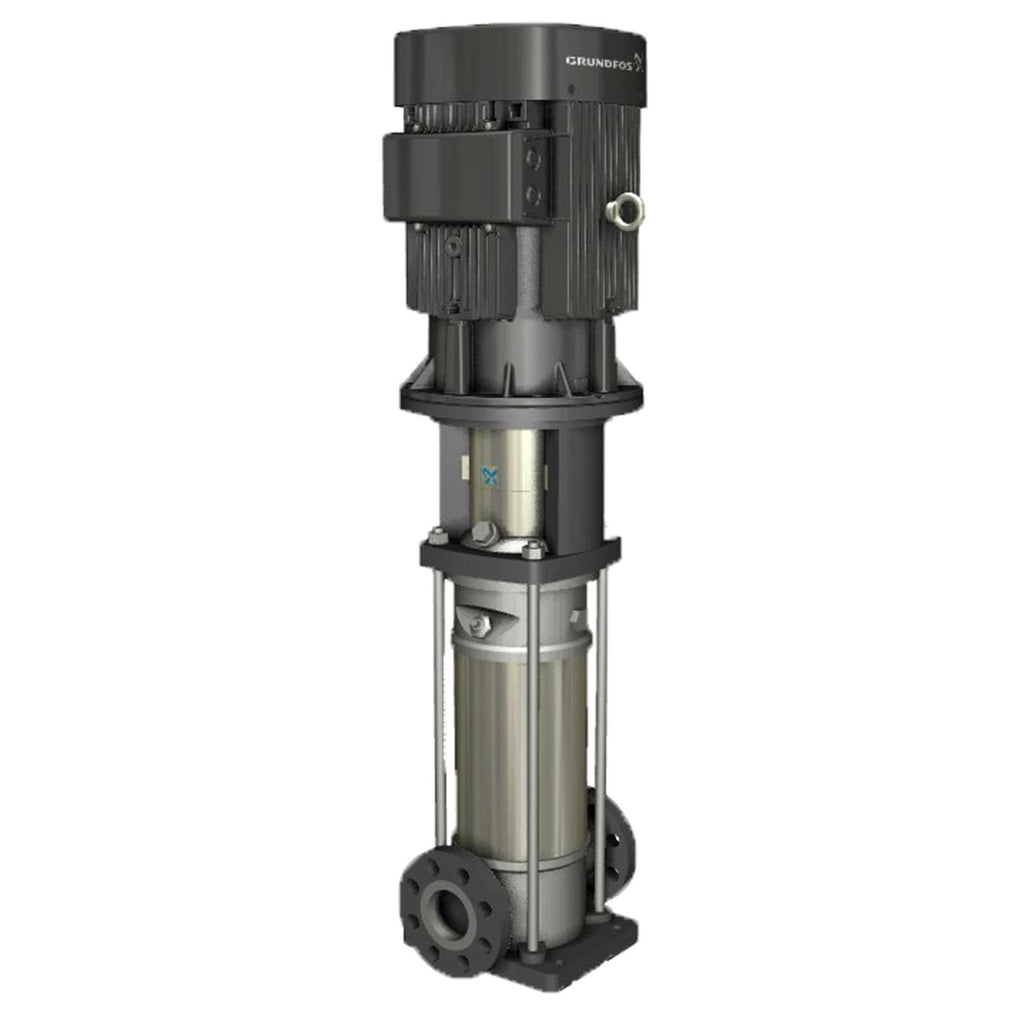

Grundfos 92877137 - CRN 32-2-2 B-G-H-K-PQQK Vertical Multistage Centrifugal Pump

The Grundfos 92877137 - CRN 32-2-2 B-G-H-K-PQQK is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for demanding environments.

With its robust construction and advanced design, the CRN 32-2-2 B-G-H-K-PQQK model ensures optimal fluid handling capabilities, providing high pressure and flow rates. This pump is perfect for applications requiring consistent and dependable operation.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120909489
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber K
Code for shaft seal PQQK
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 336.0 lb
IE efficiency IE3 90
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range 32 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 149.9 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor efficiency at 1/2 load 0.895
Motor efficiency at 3/4 load 0.902
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type WEG
Net weight 318.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 7.5 kW
Power factor 1 0.91
Pressure rating for connection PN 16
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version B
Pumped liquid Water
Rated current 23.0/11.5 A
Rated flow 159 US gpm
Rated head 109.9 ft
Rated power - P2 7.5 kW
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 2
Standard NEMA
Starting current 7.5
Support bearing Graflon
Type WEG
Type of connection ANSI
Version B

Motor Curves

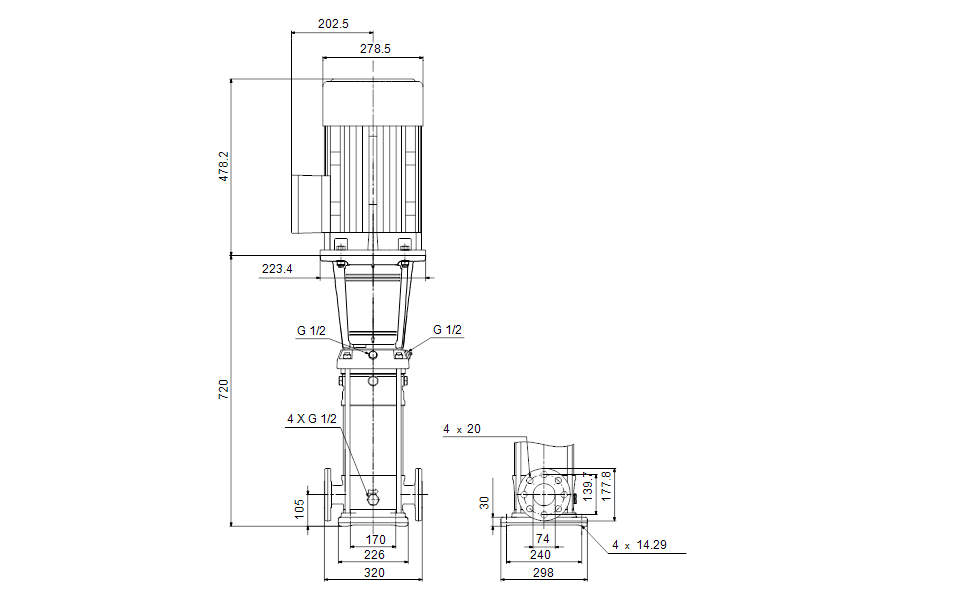

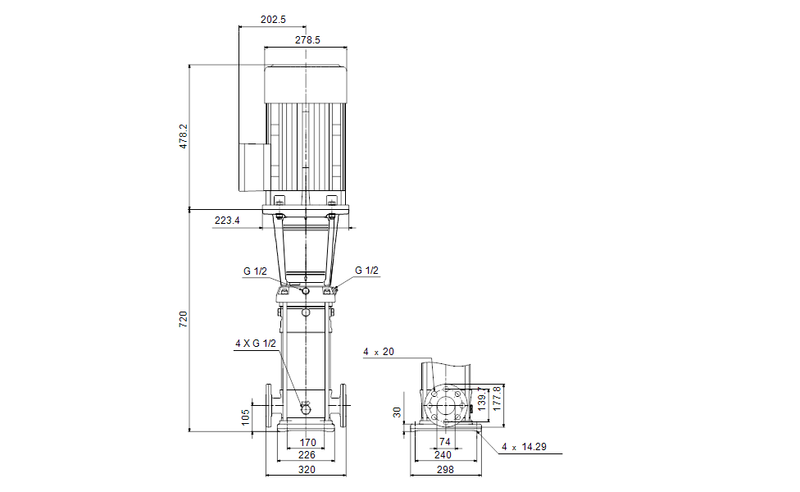

Dimensional Drawing

DWiring Diagram
