Grundfos 92873102 - CRN 32-1 A-F-H-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92873102

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92873102 - CRN 32-1 A-F-H-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its robust construction and advanced design, the CRN 32-1 A-F-H-V-HQQV model is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special and High Pressure types, making it a versatile choice for various operational needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Explore the reliability and efficiency of the Grundfos 92873102 - CRN 32-1 A-F-H-V-HQQV pump today and experience the quality that comes with the Grundfos name.

EAN 5715120842380
Actual impeller diameter 4.66 in
Approvals EAC
Approvals for drinking water WRAS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 211.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 95.15 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FT130
Motor efficiency at 1/2 load 88.9-85.4 %
Motor efficiency at 3/4 load 88.0-87.8 %
Motor efficiency at full load 1 87.5-88.5 %
Motor standard IEC
Motor type 100DA
Net weight 160.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.91-0.84
Pressure rating for connection PN 40
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 3514 rpm
Pump version A
Pumped liquid Water
Rated current 10
Rated flow 159 US gpm
Rated head 67.59 ft
Rated power - P2 3 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 1
Standard IEC
Starting current 860-1100 %
Support bearing Graflon
Type 100DA
Type of connection DIN
Version A

Motor Curves

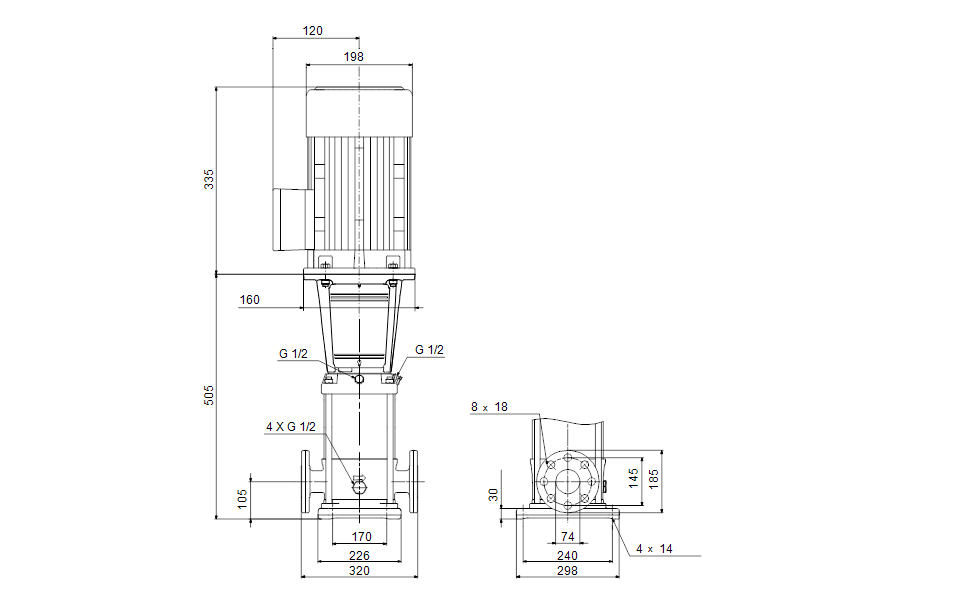

Dimensional Drawing

DWiring Diagram
