Description

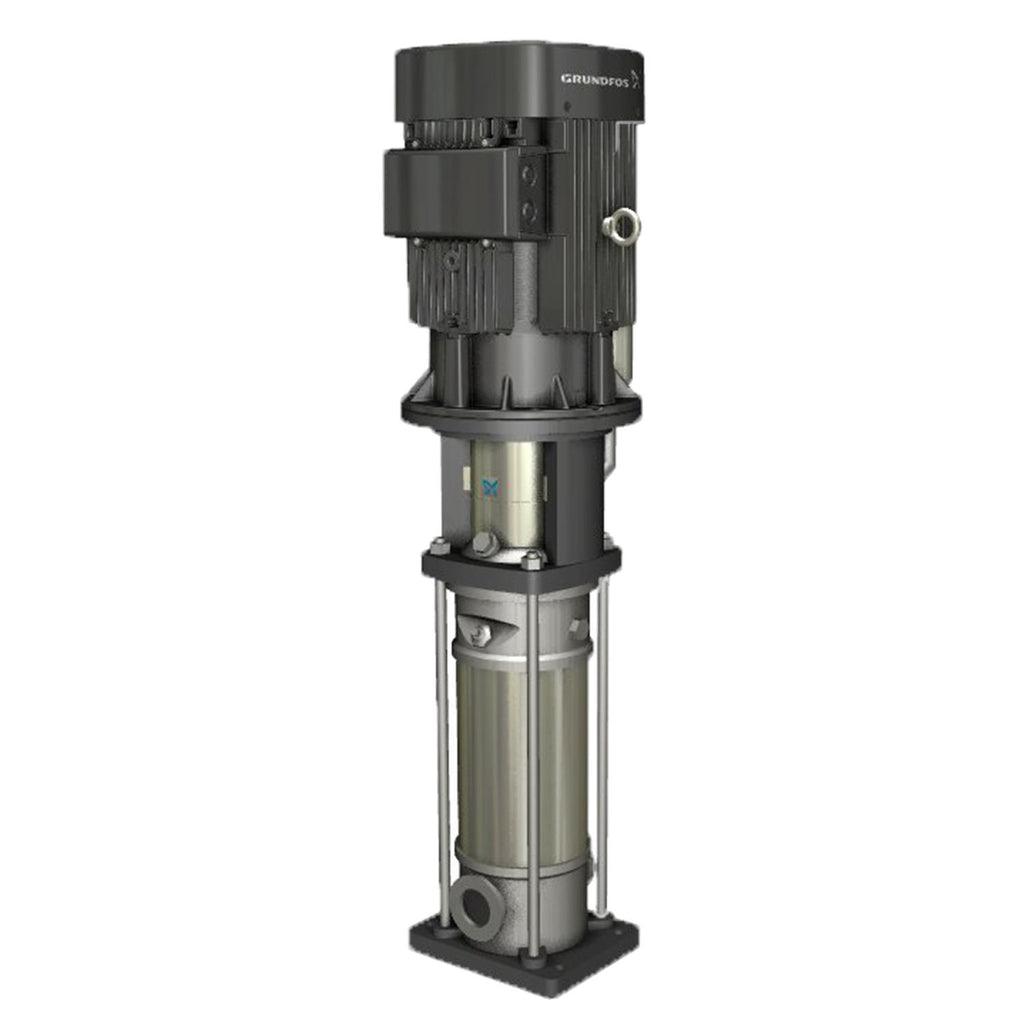

Grundfos 92885174 - CRN 3-4 F-CX-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92885174 - CRN 3-4 F-CX-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN 3-4 F-CX-A-F-HQQE is ideal for high-pressure applications, ensuring optimal fluid transfer and system efficiency. This pump is part of Grundfos's extensive range of centrifugal pumps, making it a versatile choice for various operational needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715121033503
Approvals CE
Code for rubber F
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 23.1 kg
Impeller Stainless steel
Impellers 0
Liquid temperature range -10 .. 180 °C
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 25 bar / 180 °C
Maximum head 37.9 m
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 18.1 kg
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3439 rpm
Pump version F
Rated flow 3.5 m³/h
Rated head 27.6 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 4
Standard NEMA
Type of connection TriClamp
Version F

Motor Curves

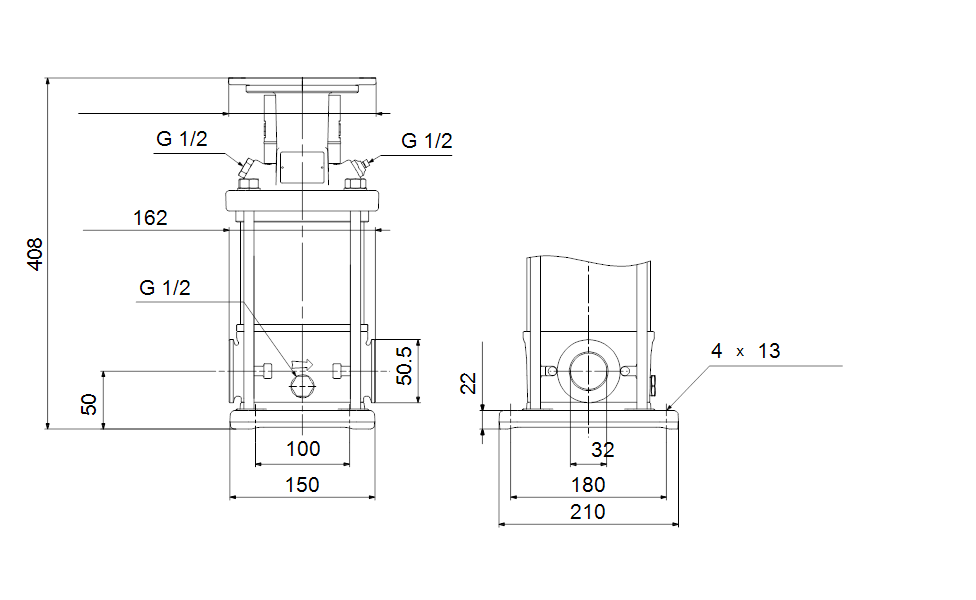

Dimensional Drawing
