Grundfos 92628751 - CRN 1S-7 X-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92628751

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92628751 - CRN 1S-7 X-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92628751 - CRN 1S-7 X-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN 1S-7 X-FGJ-A-E-HQQE is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Single & Multi-Stage and Vertical Multistage types, making it a versatile choice for various operational needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the 92628751 to ensure compatibility.

For more information on specifications and applications, feel free to chat with us or give us a call. Let us help you find the perfect solution for your pumping needs!

EAN 5715117312698
Approvals CURUS
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 71.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 195.5 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor No 99910572
Motor standard NEMA
Net weight 60.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 3485 rpm
Pump version X
Pumped liquid Water
Rated flow 4.84 US gpm
Rated head 131.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 7
Standard NEMA
Type of connection DIN / ANSI / JIS
Version X

Motor Curves

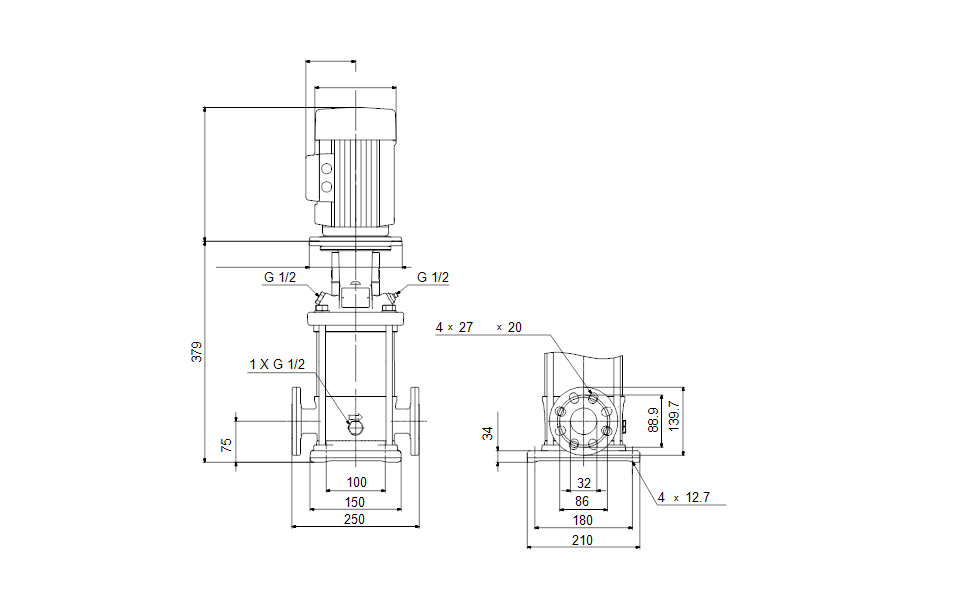

Dimensional Drawing
