Grundfos 92624680 - CRN 125-3-2 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92624680

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92624680 - CRN 125-3-2 A-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92624680 - CRN 125-3-2 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRN 125-3-2 A-G-A-E-HQQE is ideal for high-pressure applications, making it a perfect choice for those seeking durability and performance. This pump is part of the Grundfos Centrifugal Pumps range, specifically tailored for both single and multi-stage operations.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715117250136
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 364TSC
Frequency converter NONE
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 33
Maximum ambient temperature 104 °F
Maximum head 389.5 ft
Maximum operating pressure 16 bar
Model A
Motor 364TSC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.93
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type WEG
Net weight 1280.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power factor 1 0.9
Pressure rating for connection 150 lb
Pressure sensor N
Pump speed on which pump data are based 3551 rpm
Pump version A
Pumped liquid Water
Rated current 134/67 A
Rated flow 660 US gpm
Rated head 279.5 ft
Rated power - P2 45 kW
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 3
Standard NEMA
Starting current 6.6
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

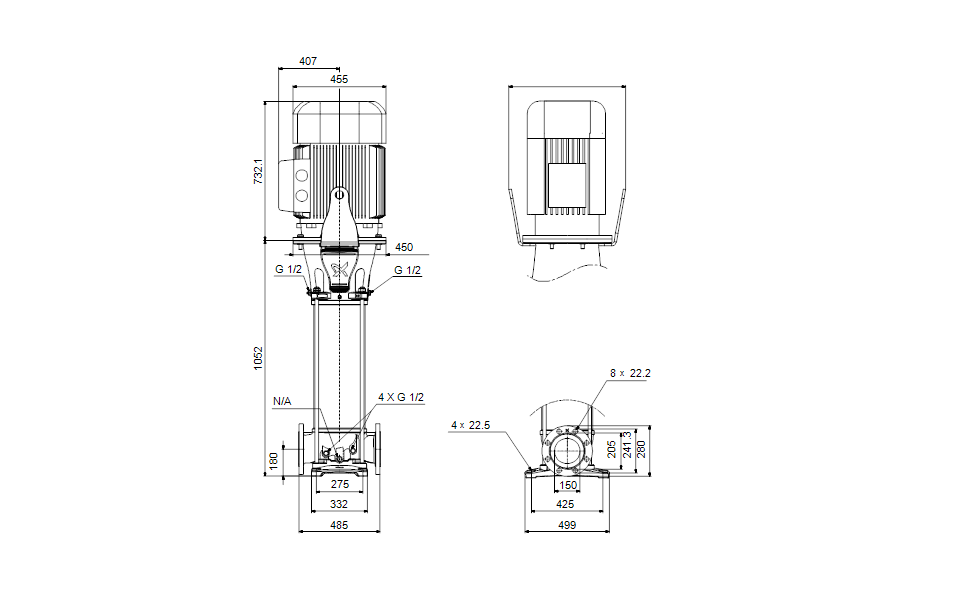

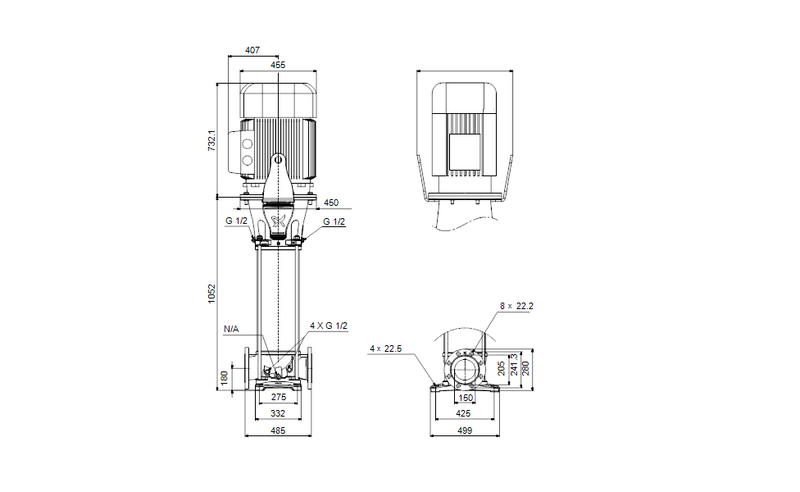

Dimensional Drawing

DWiring Diagram
