Grundfos 92722104 - CRI 10-10 FK-FGJ-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92722104

Price:
Sale price$24,843.06
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92722104 - CRI 10-10 FK-FGJ-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92722104 - CRI 10-10 FK-FGJ-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRI 10-10 model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it suitable for both commercial and industrial settings.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to contact our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715118651352
Actual impeller diameter 3.66 in
Approvals CURUS
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 406.0 lb
IE efficiency IE3 90
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 452.8 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 0.895
Motor efficiency at 3/4 load 0.902
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type WEG
Net weight 291.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.91
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3448 rpm
Pump version FK
Pumped liquid Water
Rated current 23.0/11.5 A
Rated flow 53.3 US gpm
Rated head 367.5 ft
Rated power - P2 7.5 kW
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Starting current 7.5
Type WEG
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

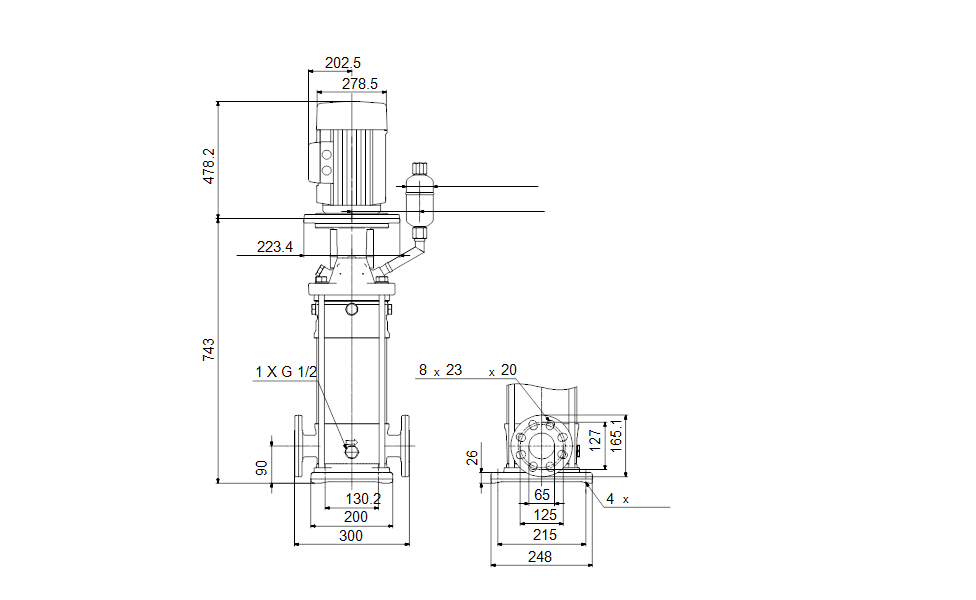

Dimensional Drawing

DWiring Diagram
