Grundfos 92644048 - CR 64-2-1 B-G-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92644048

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92644048 - CR 64-2-1 B-G-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92644048 - CR 64-2-1 B-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and other demanding tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 64-2-1 model features a robust construction that ensures durability and long service life. Its multistage design allows for increased pressure capabilities, making it suitable for applications where consistent performance is crucial.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715117496299
Actual impeller diameter 5.59 in
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.59 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 180.0 lb
Impeller Stainless steel
Impellers 1
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 194 °F
Maximum head 242.8 ft
Maximum operating pressure 16 bar
Model B
Motor 284TC
Motor standard NEMA
Net weight 163.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3497 rpm
Pump version B
Rated flow 339 US gpm
Rated head 176.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version B

Motor Curves

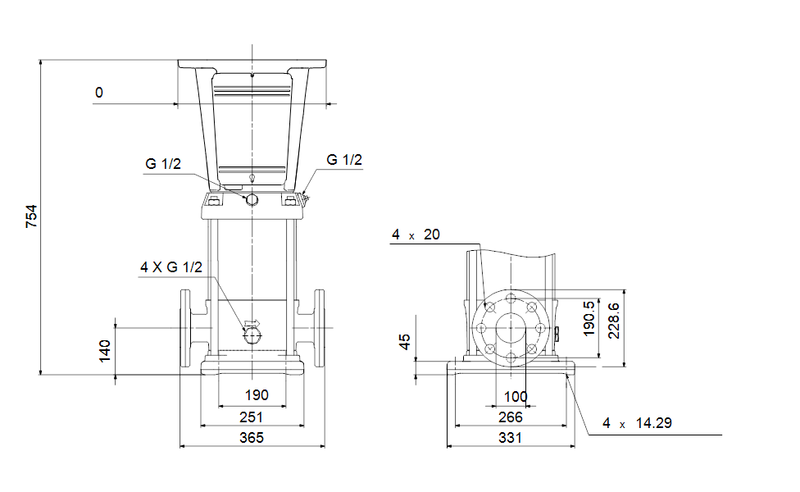

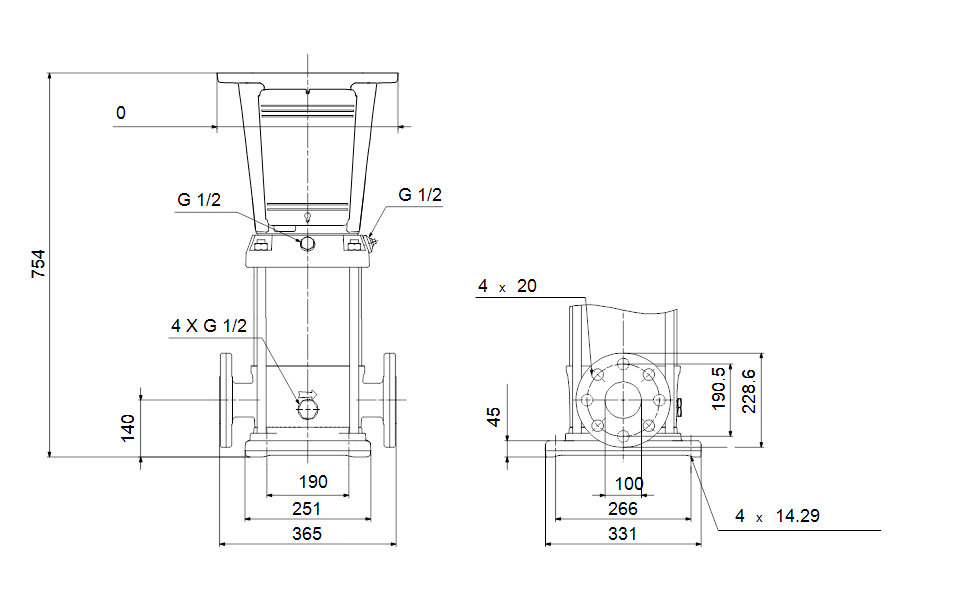

Dimensional Drawing
