Grundfos 92667440 - CR 32-10 P-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92667440

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92667440 - CR 32-10 P-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92667440 - CR 32-10 P-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CR 32-10 model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, such as in HVAC systems, water treatment, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help you find the perfect solution.

EAN 5715117853474
Actual impeller diameter 4.66 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 211.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum head 923.6 ft
Maximum operating pressure 30 bar
Model B
Motor 284TC
Motor standard NEMA
Net weight 193.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3525 rpm
Pump version P
Pumped liquid Water
Rated flow 159 US gpm
Rated head 730 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 10
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version P

Motor Curves

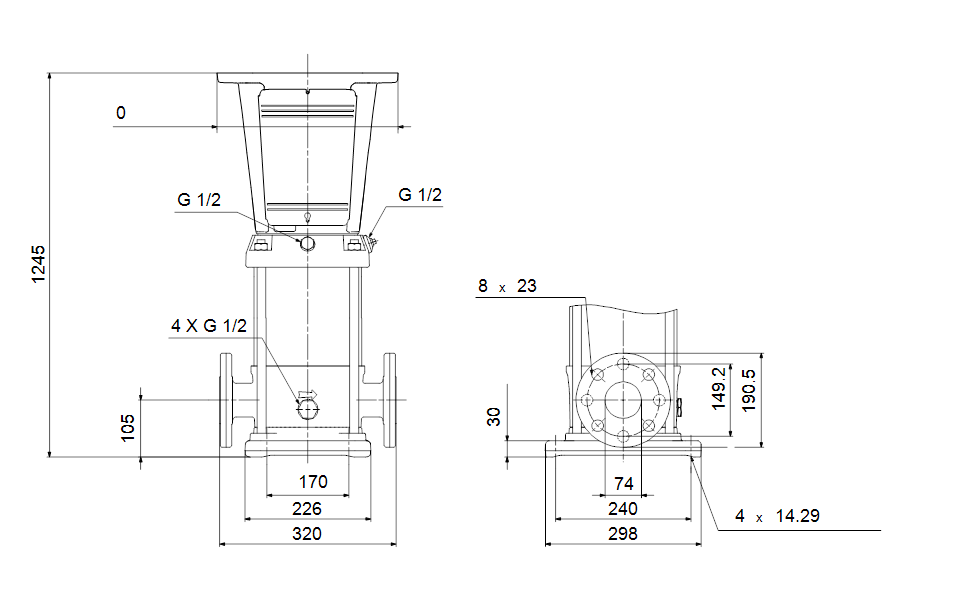

Dimensional Drawing
