Grundfos 98370117 - CR 1S-8 A-A-A-E-HQBE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98370117

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

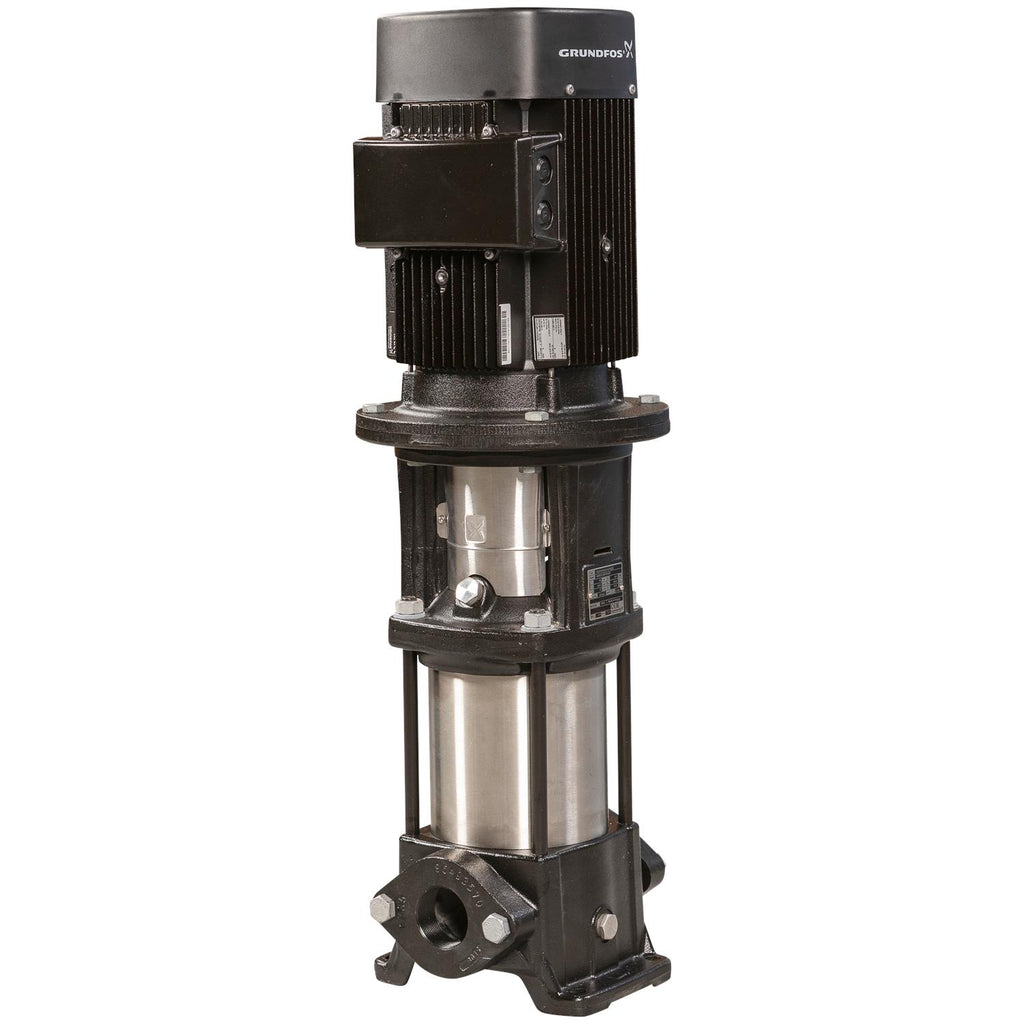

CR 1S-8 A-A-A-E-HQBE · Vertical Multistage Centrifugal Pump
CR0.5HP380-415DV3-Phase50 HzIE3IP55 Dust/JettingStainless steel

The Grundfos 98370117 (CR 1S-8 A-A-A-E-HQBE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 3.96US gpm at 106.6ft. Rated 380-415DV, 3-Phase, 50 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
0.5HP
Voltage
380-415DV
Phase
3-Phase
Max Flow
3.96US gpm
Max Head
106.6ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 1S-8 A-A-A-E-HQBE
Series: CR
Model Code: CR 1S-8 A-A-A-E-HQBE
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQBE
Flange Rating: PN 16
Technical Specifications
Model Number 98370117
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 0.5HP
Voltage 380-415DV
Phase 3-Phase
Frequency 50 Hz
Motor Speed 2850-2880rpm
Pump Speed 2873rpm
Full Load Current 1A
Motor Type 71A
Motor Efficiency Class IE3
Motor Efficiency 73.8-73.8%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 3.96US gpm
Nominal Head 106.6ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 140°F
Inlet Connection 1inch
Outlet Connection 1inch
Pipe Pressure Rating PN 16
Pipe Standard Oval / Rp
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQBE
Approvals / Certifications CE, EAC, UKCA, SEPRO
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-415DV, 3-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 1S-8 A-A-A-E-HQBE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711493830047
Applications Industrial applications
Approvals CE,EAC,UKCA,SEPRO
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQBE
Connect code A
Connection Oval / Rp
Connection 2 PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 73.8-73.8%
Flange size for motor FT85
Frequency 50 HZ
Frequency converter NONE
Gross weight 50.6 lb
IE Eff. Class IE3
IE efficiency classIE3
IE Efficiency class IE3
Impeller Stainless steel
Impellers 8
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 91
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 155.8 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
MEI 0.54
Minimum efficiency index, MEI ≥ 0.54
Model A
Motor FT85
Motor efficiency at 1/2 load 75.5-71.5 %
Motor efficiency at 3/4 load 79.0-76.5 %
Motor efficiency at full load 1 73.8-73.8 %
Motor protec NONE
Motor standard IEC
Motor type 71A
n rpm 2850-2880rpm
Net weight 44.5 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 0.5 HP
P2 kW 0.37kW
Phase 3
Power (P2) required by pump 0.5 HP
Power factor 1 0.80-0.70
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CR 1S
Pump 0.5 HP
Pump housing Cast iron
Pump inlet 1
Pump outlet 1
Pump version A
Pumped liquid Water
Rated current 0.041666666666666664
Rated flow 3.96 US gpm
Rated flow 2 3.96 US gpm
Rated head 106.6 ft
Rated head 2 106.6 ft
Rated power - P2 0.5 HP
Rated speed 2850-2880 rpm
Rated voltage 3 x 380-415D V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Sales region United Arab Emirates
Selected liquid temperature 68 °F
Shaft seal HQBE
Stages 8
Standard IEC
Starting current 490-530 %
Terminal box position 6
Type 71A
Type of connection Oval / Rp
Version A

Motor Curves

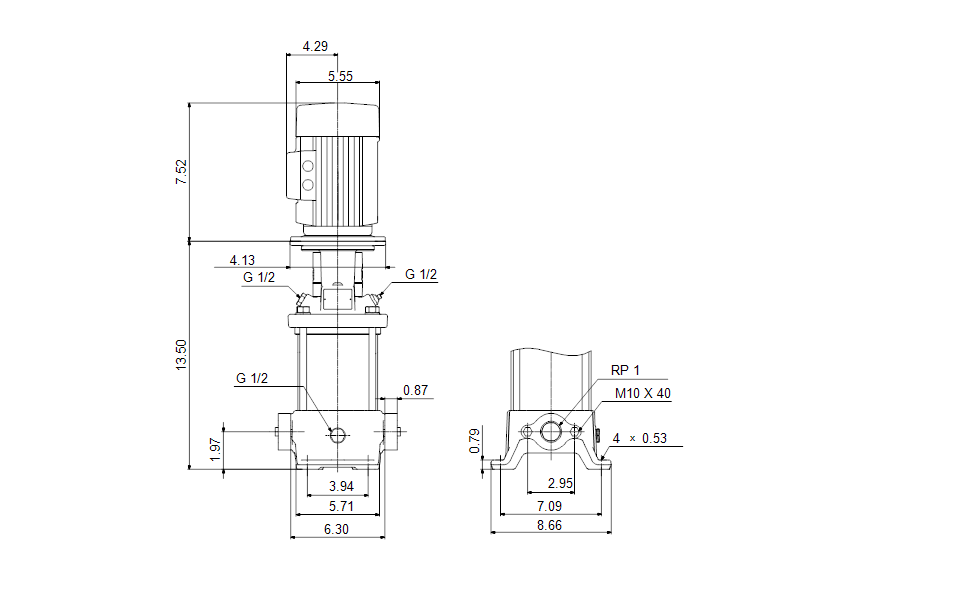

Dimensional Drawing

DWiring Diagram
