Grundfos 96977828 - CR 1S-27 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,658.31
GRUNDFOSSKU: 96977828

Price:
Sale price$3,552.69 Regular price$6,211.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96977828 - CR 1S-27 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features advanced design elements that ensure optimal performance and durability. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types. The CR series is known for its versatility and ability to handle a wide range of fluids, making it suitable for various industrial needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and our team is here to help if you're having trouble locating the right item.

Ensure your operations run smoothly with the reliable performance of the Grundfos 96977828 - CR 1S-27 H-GA-A-V-HQQV pump. Contact us today for more information on specifications and applications!

Approvals on nameplate CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 119.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 1S-27 H-GA-A-V-HQQV
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 746.4 ft
Maximum operating pressure 362.59 psi
Model A
Motor 56C
Motor efficiency at 1/2 load 86.3-85.0 %
Motor efficiency at 3/4 load 87.4-86.8 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard NEMA
Motor type 90GB
n rpm F
Net weight 101.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 2 HP
Phase 3
Power (P2) required by pump 2 HP
Power factor 1 0.81-0.78
Pressure rating for connection PN 25
Pressure sensor N
Pump 2 HP
Pump version H
Rated current 6,00-5,80/2,90 A
Rated flow 4.84 US gpm
Rated head 496.1 ft
Rated power - P2 2 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber V
Sales region USA
Service factor 1.15
Shaft Product name:CR 1S-27 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 27
Standard NEMA
Starting current 800-910 %
Type 90GB
Version H

Motor Curves

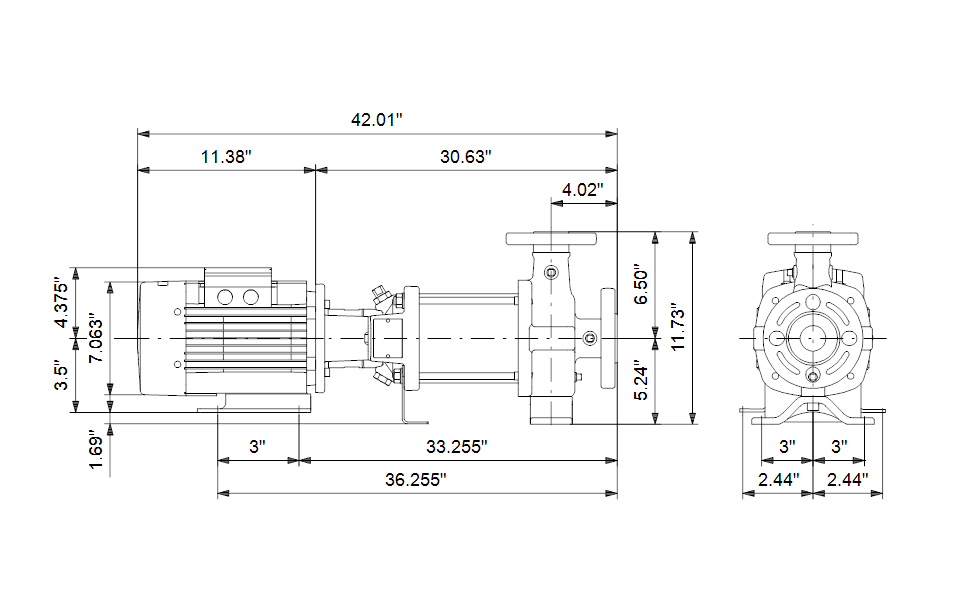

Dimensional Drawing

DWiring Diagram
