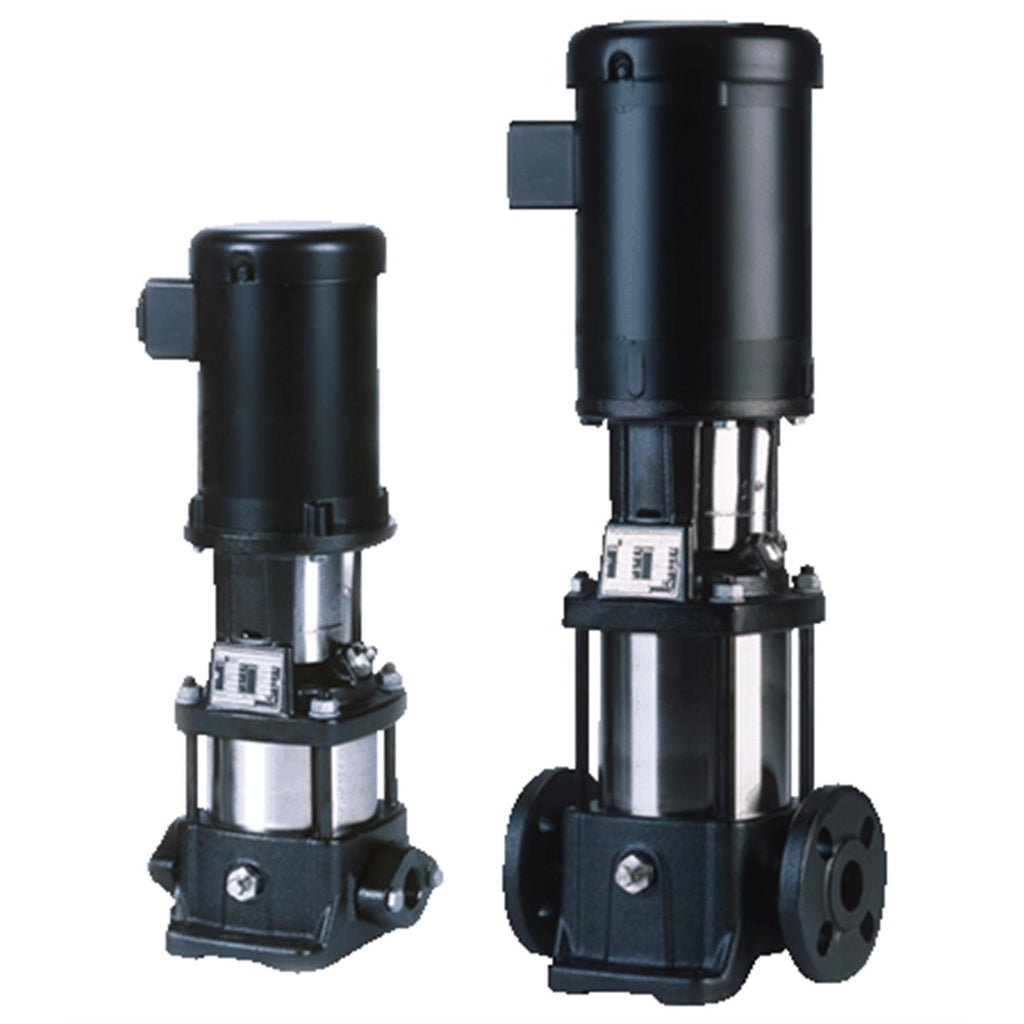

Grundfos 96082057 - CR 1-13 A-B-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96082057

Price:
Sale price$5,295.83
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96082057 - CR 1-13 A-B-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water supply, irrigation, and other demanding tasks.

This model features a robust construction that ensures durability and longevity, while its multistage design allows for optimal pressure and flow rates. The CR series is known for its versatility and efficiency, making it suitable for both commercial and industrial environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 96082057. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5700395167955
Applications Industrial applications
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code B
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 56C
Frequency converter NONE
Full load SF current 20
Gross weight 95.9 lb
IE efficiency 0.71
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 380.3 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.71
Motor standard NEMA
Motor type BALDOR
Net weight 81.4 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Pressure rating for connection PN 16
Product family CR 1
Pump 1.1 kW
Pump speed on which pump data are based 3450 rpm
Pump version A
Pumped liquid Water
Rated current 17/9
Rated flow 9.69 US gpm
Rated head 283.8 ft
Rated power - P2 1.1 kW
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.3
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 13
Standard NEMA
Type BALDOR
Type of connection Oval / NPT(F)
Version A

Motor Curves

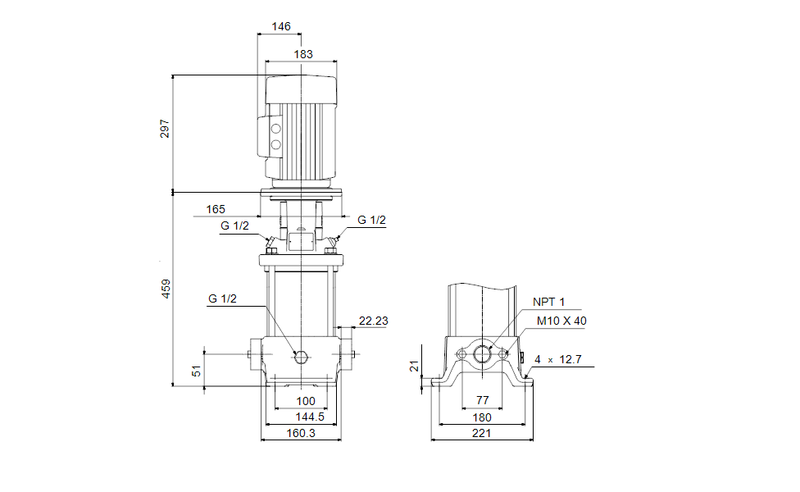

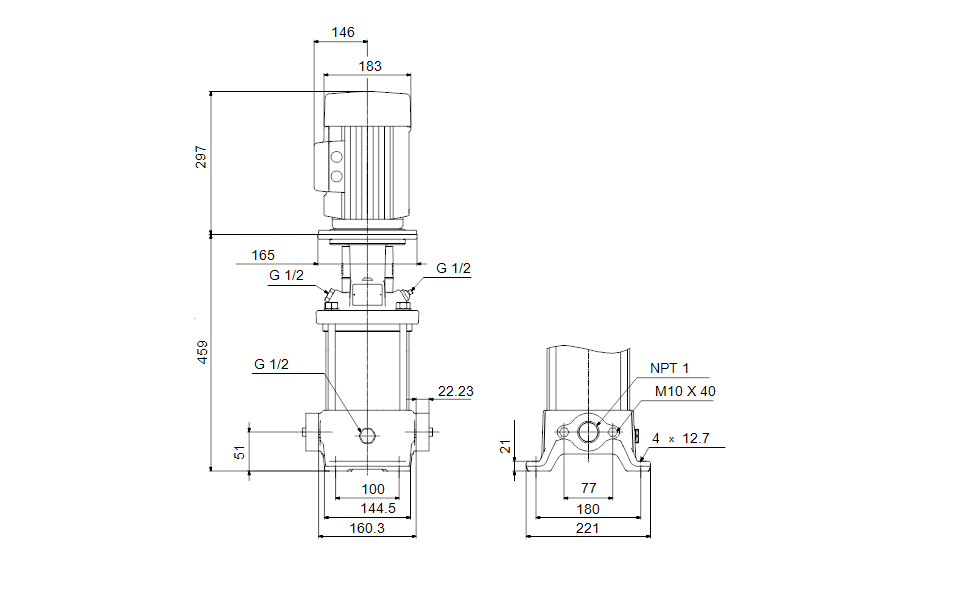

Dimensional Drawing

DWiring Diagram
