Name: Liberty Compact Drain Pump 1/6 HP 115V 1-1/2" Inlet Connection (406)
Brand: Liberty
SKU: 406
Price: 339.23 USD
Availability: InStock

Image shown may not be actual product

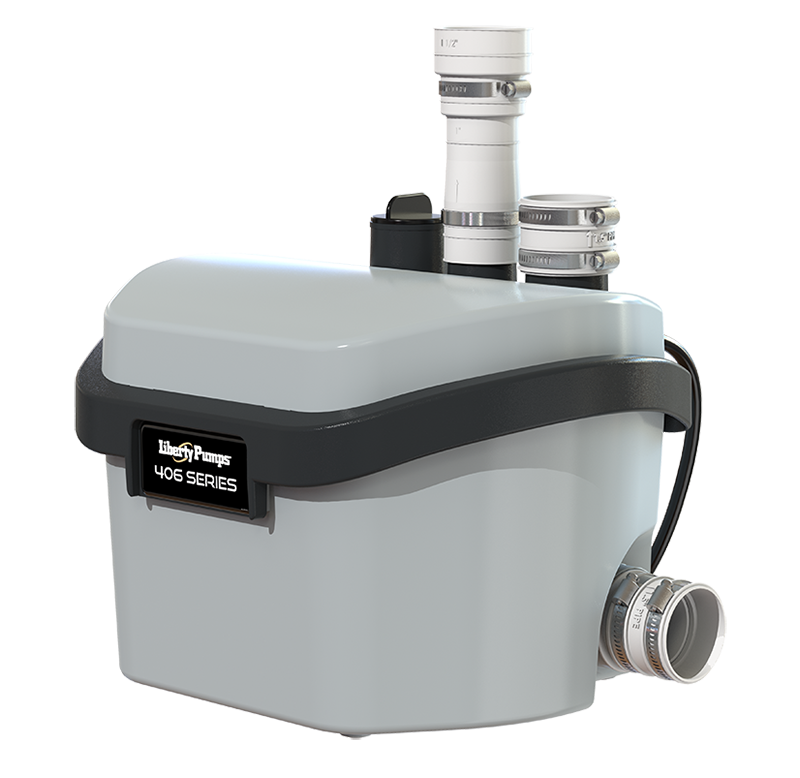

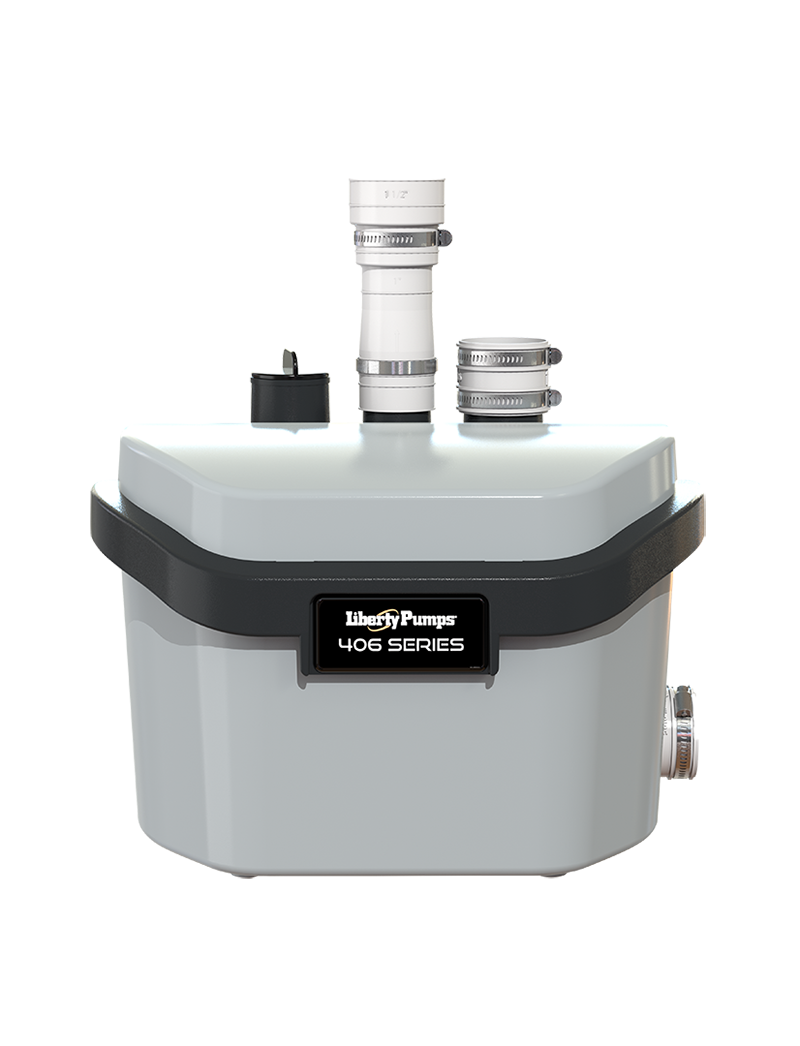

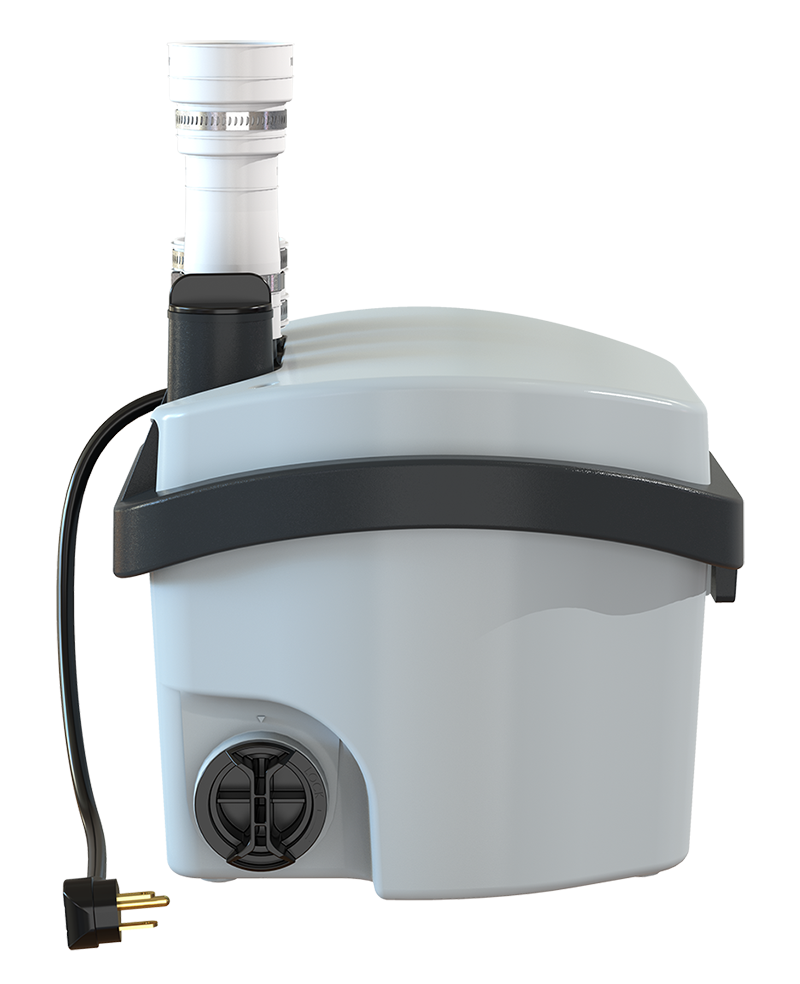

Liberty Compact Drain Pump 1/6 HP 115V 1-1/2" Inlet Connection (406)

Liberty Pumps — A Family and Employee Owned Company · Made in the USA

Model 406 · Compact Appliance-Grade Drain Pump · SSPMA Certified · CSA Certified ASME A112.3.4 / CSA B45.9 · ISO 9001 Facility

1/6 HP Only 10" Tall Shower Compatible Removable Cartridge Integral Check Valve 68 dB Quiet Made in USA 3-Year Warranty

The Liberty Pumps Model 406 is a 1/6 HP appliance-grade compact drain pump built for under-cabinet, under-sink, and in-cabinet installations where a traditional basin pump will not fit. At only 10 inches tall with an appliance-style ABS housing, the 406 connects to showers, bar sinks, laundry trays, dishwashers, and dehumidifiers — including floor-level shower plumbing via its side inlets. A single stepped discharge adapter covers 1", 1-1/4", and 1-1/2" pipe sizes. The pump cartridge removes in a quarter-turn for wet-end servicing without disturbing any plumbing. Made in the USA. CSA certified to UPC requirements.

Horsepower

1/6 HP

Voltage

115 V

Amps

1.7 A

Profile Height

10 inches

Max Head

27 ft

Noise Level

68 dB

Warranty

3-Year Liberty Pumps limited warranty from date of purchase

Lead Time

Chat or call for most up-to-date lead times (781) 281-8905

Expert Support

Technical specialists available — call (781) 281-8905

Authorized Dealer

Authorized Liberty Pumps distributor — full warranty coverage

Why This Product

Appliance-Style — Fits in Cabinets

The 406's rectangular ABS housing is designed to sit neatly inside a vanity cabinet, under a laundry sink, or in any enclosed space where a round basin pump would not fit or look out of place. At 10 inches tall and 13.2 inches wide, it installs where no other Liberty drain pump will.

Floor-Level Side Inlets for Shower Plumbing

The 406's side inlets are positioned at the base of the unit, specifically to accommodate shower drain plumbing that runs at floor level. Each side inlet includes an integral check valve adapter. This is the feature that makes the 406 the right choice for bathroom renovations where a shower is added below the gravity drain line.

Quarter-Turn Removable Pump Cartridge

The entire wet end — impeller, shaft seal, and volute — removes as a single cartridge with a quarter-turn, accessible through the top cover without disconnecting any plumbing or moving the unit. For a service call, this is the difference between a 5-minute part swap and a full system teardown.

Single Stepped Discharge Adapter

One adapter handles 1", 1-1/4", and 1-1/2" discharge pipe sizes — the installer cuts to the step that matches the existing pipe. No separate adapters to order, no incorrect-size issues on the job site. The integral check valve is built into the same adapter.

68 dB Quiet Operation

At 68 dB, the 406 runs quieter than a typical conversation. In under-sink installations inside a bathroom cabinet or a finished kitchen, this matters — buyers and specifiers notice pump noise when it runs multiple times per day directly below a counter surface.

Cord Exits Either Side — Clean Installation

The 9-foot power cord can exit the unit on either the left or right side, with any extra cord coiled and stored under the decorative cover. In cabinet installations with limited cord routing options, this flexibility eliminates the exposed-cord problem that makes installations look unfinished.

Electrical Specifications

Horsepower	1/6 HP
Voltage (Model 406)	115V, Single Phase
Voltage (Model 406HV / 406HVK)	200/230V (406HV) / 220V (406HVK)
Full Load Amps	1.7 A (115V) / 1.0 A (200/230V)
Locked Rotor Amps	4.7 A (115V) / 2.5 A (200/230V)
Frequency	60 Hz
Speed	3,450 RPM
Motor Type	Air-cooled, thermally protected
Motor Housing	ABS
Insulation Class	Class B — max stator temp 130°C unsubmerged
Thermal Overload	120°C — integral in windings
Power Cord	9 ft usable length — exits either left or right side; extra cord stores under cover
Plug (Model 406)	NEMA 5-15P (US 115V)
Plug (Model 406HV)	NEMA 6-15P (US 230V)

Pump and System Specifications

Pump Type	Appliance-grade drain pump
Inlet Size	3 x 1-1/2" (1 top, 2 side)
Vent Size	1-1/2"
Discharge Options	1", 1-1/4", or 1-1/2" via single stepped adapter with integral check valve
Discharge Rate @ 17 ft	12 GPM (45.4 LPM)
Max Total Dynamic Head	27 ft (8.2 m)
Solids Handling	1/8"
Max Fluid Temp — Continuous	104°F / 40°C
Max Fluid Temp — Intermittent	140°F / 60°C (10 sec on / 5 sec off)
Impeller	Multi-vane semi-open engineered polymer
Shaft	Stainless steel, min 0.175" diameter
Shaft Seal	Dual seal — engineered lip seal with stainless steel springs + carbon ceramic mechanical seal
O-Rings	Buna-N
Volute	Engineered polymer
Tank Material	ABS — corrosion-resistant
Tank Capacity	1.91 gallons (7.6 liters)
Bearings	Single ball/race, permanently grease-lubricated — maintenance-free
Float Switch	CSA and UL approved automatic vertical float switch under access cover
Noise Level	68 dB
Side Inlet Check Valve	Integral — one included, usable on either side inlet

Dimensional Data

Weight	13.5 lbs (6.1 kg)
Major Height	14.1" (35.8 cm)
Major Width	13.2" (33.5 cm)
Profile Height (base to top inlet flange)	10" — fits under counter cabinets
Side Inlet Height from Floor	1.7" (4.3 cm) — accommodates floor-level shower plumbing

Performance Reference

Model 406 · 115V / 60 Hz · 3,450 RPM · Max Head: 27 ft · Discharge @ 17 ft: 12 GPM

Flow (GPM)	Total Head (ft)	Total Head (m)
0	~27	~8.2
4	~24	~7.3
8	~20	~6.1
12	~15	~4.6
16	~8	~2.4
20	0	0

Performance data approximated from manufacturer curve. Tank inflow must not exceed pump discharge capacity at the installed head level. Refer to Liberty Pumps specification sheet for certified curve data.

Available Models

Model	HP	Volts	Amps	Discharge	Plug Type	Certification
406	1/6	115	1.7	1", 1-1/4", 1-1/2"	NEMA 5-15P	cCSAus (UPC/IPC/NPC)
406HV	1/6	200/230	1.0	1", 1-1/4", 1-1/2"	NEMA 6-15P	cCSAus (UPC/IPC/NPC)
406HVK	1/6	220	1.0	1", 1-1/4", 1-1/2"	KCI Schuko	Not certified

All models include the connection kit: 1 stepped discharge adapter (1"/1-1/4"/1-1/2" with integral check valve), 1 side inlet coupling with integral check valve, 1 top vent coupling, 1 top inlet coupling, 2 pre-installed side inlet plugs, 1 pre-installed top inlet plug, 7 stainless steel clamps. Replacement connection kit #K001929 available from Liberty Pumps.

Key Features

1/6 HP appliance-grade compact design — 10" tall

Floor-level side inlets accommodate shower plumbing

Quarter-turn removable pump cartridge for wet-end service

Stepped discharge adapter — 1", 1-1/4", 1-1/2" from one piece

Integral check valve on discharge and side inlet

Float switch and cartridge serviceable without removing unit

9 ft cord exits left or right — extra cord stores under cover

Anti-skid, sound-isolating feet

ABS tank — corrosion-resistant

Dual shaft seal — lip seal + carbon ceramic mechanical seal

Stainless steel shaft, hardware, and clamps

Buna-N O-rings and rubber gasket — gas-tight seal

Thermal overload protection — auto-reset

Permanently lubricated sealed bearings — maintenance-free

68 dB quiet operation

Factory pre-assembled, fully automatic operation

Made in the USA with US and global parts

ISO 9001 certified manufacturing facility

CSA certified — ASME A112.3.4 / CSA B45.9 / UPC / IPC / NPC

3-Year limited warranty

Typical Applications

Bar sinks and wet bars

Laundry trays and utility sinks

Showers — including floor-level drain connections

Dehumidifiers

Dishwashers (indirect connection through drain trap)

Washing machines (indirect via laundry tub)

Under-cabinet and in-cabinet installations

Gray wastewater drainage below gravity lines

Important Notices

Temperature limit	Do not exceed 104°F (40°C) for continuous duty, or 140°F (60°C) for intermittent duty (10 sec on / 5 sec off). Operating above these limits will cause pump failure.
Water only	This pump has been evaluated for use with water only. Do not use with chemicals, flammable fluids, grease, hydrocarbons, sand, cement, or abrasives.
Discharge	Never discharge into an open drain, fixture, manhole, or rainwater drainpipe. Only direct connections into sanitary waste systems are acceptable.
Venting	Do not use air admittance valves or mechanical spring-loaded venting devices. The air pressure inside and outside the unit must be equal — one-way vents prevent proper function.
Inflow limit	Tank inflow must not exceed pump discharge capacity at the installed head level. Oversizing the inflow will cause the unit to overflow.
Washing machine	Use of a lint trap on a washing machine drain is recommended for proper check valve performance. Connect washing machines indirectly via a laundry tub — not directly into the pump.
Electrical	Must be connected to a GFCI receptacle. Do not use an extension cord. GFCI receptacle must be a minimum of 40" from a shower or bathtub, and 48" from the floor for basement installations.

Documentation

Brochure	Liberty Pumps Model 406 — Product Brochure (PDF)
Pump Specification	Liberty Pumps Model 406 — Pump Specification (PDF)
Installation Manual	Liberty Pumps Model 406 — Installation Manual (PDF)

Before You Order Confirm voltage requirement before ordering — Model 406 is 115V (NEMA 5-15P), Model 406HV is 200/230V (NEMA 6-15P), Model 406HVK is 220V (KCI Schuko, not CSA certified). All models include the full connection kit. For current lead times, chat or call (781) 281-8905. Image shown may not reflect actual product.
